SKU: SI25C-SKF

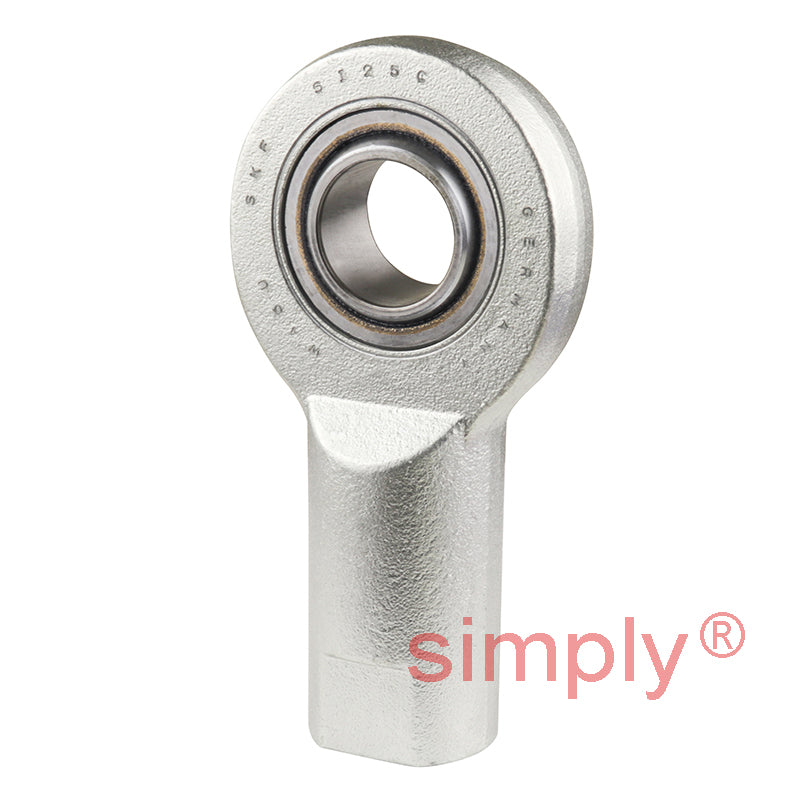

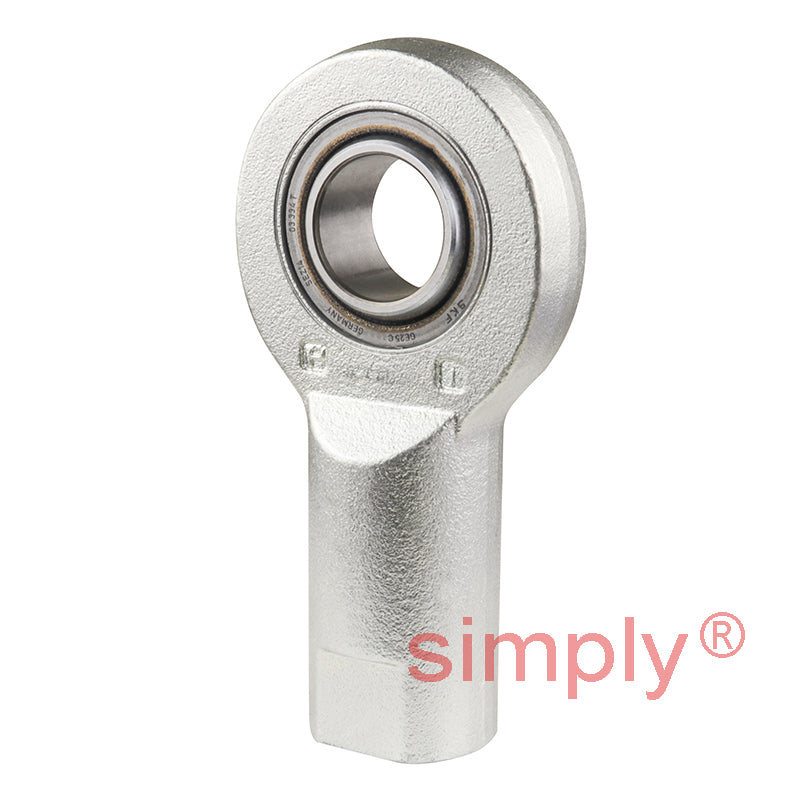

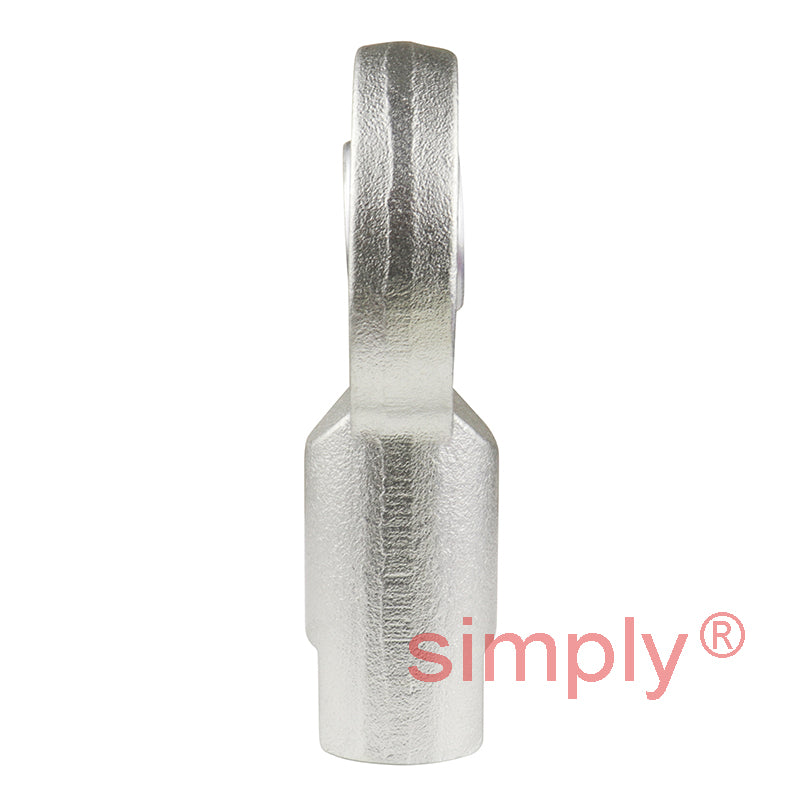

SKF SI25C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread
SKF SI25C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread
Regular price
CHF 80.00
ex VAT
Regular price
Sale price
CHF 80.00
ex VAT
Equivalent to: GIR25UK FI25U
In stock
Price Break
10+
CHF 63.69
19+
CHF 60.11
29+
CHF 59.39
39+
CHF 58.68
49+
CHF 57.96
74+
CHF 57.25
99+
CHF 53.67
199+
CHF 52.95
249+
CHF 52.24
499+
CHF 51.52
999+
CHF 50.09
Description
Description
|
SKF SI..C Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE sintered bronze these rod end bearings are unsealed. They are manufactured from heat treatable C45V Steel zinc coated and chromatized and PTFE sintered bronze and will operate within -35deg C to +150 deg C, load carrying capacity will be reduced over +80 degrees C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE /Bronze |
Equivalent: GIR25UK FI25U
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 25mm |
|---|---|
| d2 max | 65mm |
| G 6H | M24x2 |
| B | 20mm |
| C1 max | 18mm |
| h1 | 94mm |
| a | 7deg |
| Dynamic load C | 51 kN |
| Static load Co | 90 kN |
| Weight | 0.65 kg |
| dk | 35.5mm |
| d4 | 35mm |
| l3 min | 36mm |
| l4 max | 128mm |
| l5 | 18mm |
| l7 min | 30mm |
| r1 min | 0.6mm |
| w h14 | 30mm |
