SKU: SIKAC14M-CDX

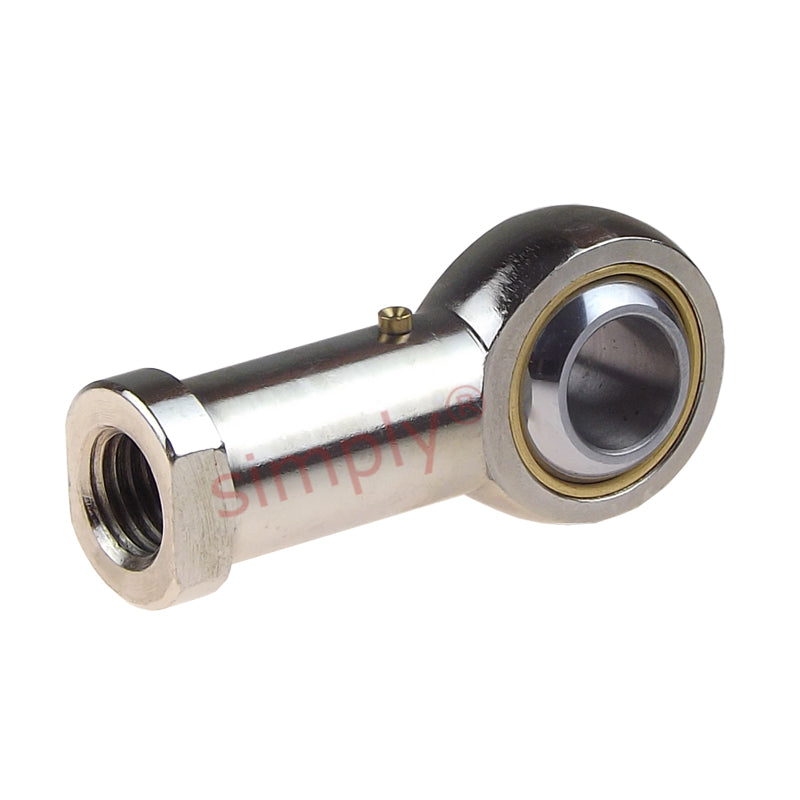

Codex SIKAC14M Right Hand Steel / Bronze Lined Plain Female Rod End M14 Thread
Codex SIKAC14M Right Hand Steel / Bronze Lined Plain Female Rod End M14 Thread
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
Equivalent to: GIKF14PB TSF14 SIBP14S PHS14 SF14 FB-M14
In stock
Price Break
10+
CHF 18.60
19+
CHF 17.56
29+
CHF 17.35
39+
CHF 17.14
49+
CHF 16.93
74+
CHF 16.72
99+
CHF 15.68
199+
CHF 15.47
249+
CHF 15.26
499+
CHF 15.05
999+
CHF 14.63
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: GIKF14PB TSF14 SIBP14S PHS14 SF14 FB-M14
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 14mm
- Material:
- Bronze Lined
Technical
Technical
| d | 14mm |
|---|---|
| d2 max | 37mm |
| G | M14 |
| B | 19mm |
| C1 max | 13.5mm |
| h1 | 57mm |
| Max misalignment angle | 16 degrees |
| Dynamic load | 17 kN |
| Static load | 20.4 kN |
| dk | 25.4mm |
| d3 | 20mm |
| d4 max | 27mm |
| l3 min | 21mm |
| l4 max | 77mm |
| l5 | 8mm |
| l7 min | 18mm |
| r1 min | 0.3mm |
| w | 22mm |
| Weight | 0.16 kg |
