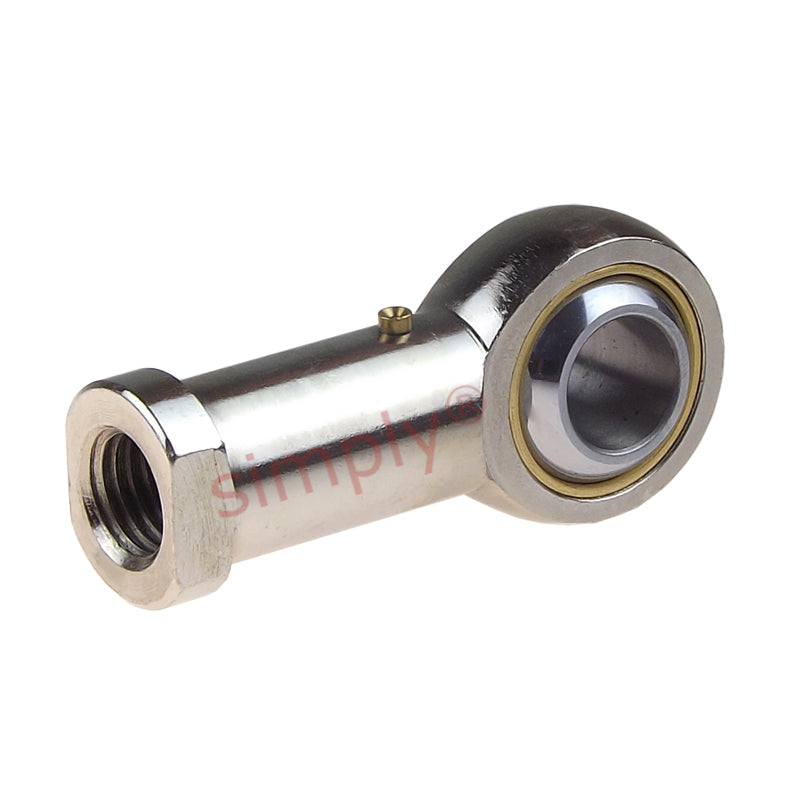

Codex SIKAC25M Right Hand Steel / Bronze Lined Plain Female Rod End M24x2 Thread
Codex SIKAC25M Right Hand Steel / Bronze Lined Plain Female Rod End M24x2 Thread
Regular price
CHF 53.00
ex VAT
Regular price
Sale price
CHF 53.00
ex VAT
Equivalent to: GIKF25PB TSF25 SIBP25S PHS25 SF25 FB-M25
In stock
Price Break
10+
CHF 41.86
19+
CHF 39.51
29+
CHF 39.04
39+
CHF 38.56
49+
CHF 38.09
74+
CHF 37.62
99+
CHF 35.27
199+
CHF 34.80
249+
CHF 34.33
499+
CHF 33.86
999+
CHF 32.92
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: GIKF25PB TSF25 SIBP25S PHS25 SF25 FB-M25
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M24x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
- Material:
- Bronze Lined
Technical
Technical
| d | 25mm |
|---|---|
| d2 max | 61mm |
| G | M24x2 |
| B | 31mm |
| C1 max | 22mm |
| h1 | 94mm |
| Max misalignment angle | 15 degrees |
| Dynamic load | 47.5 kN |
| Static load | 53 kN |
| dk | 42.8mm |
| d3 | 33.5mm |
| d4 max | 44mm |
| l3 min | 36mm |
| l4 max | 127mm |
| l5 | 12mm |
| l7 min | 30mm |
| r1 min | 0.3mm |
| w | 36mm |
| Weight | 0.65 kg |
