SKU: SIKB12F-SKF

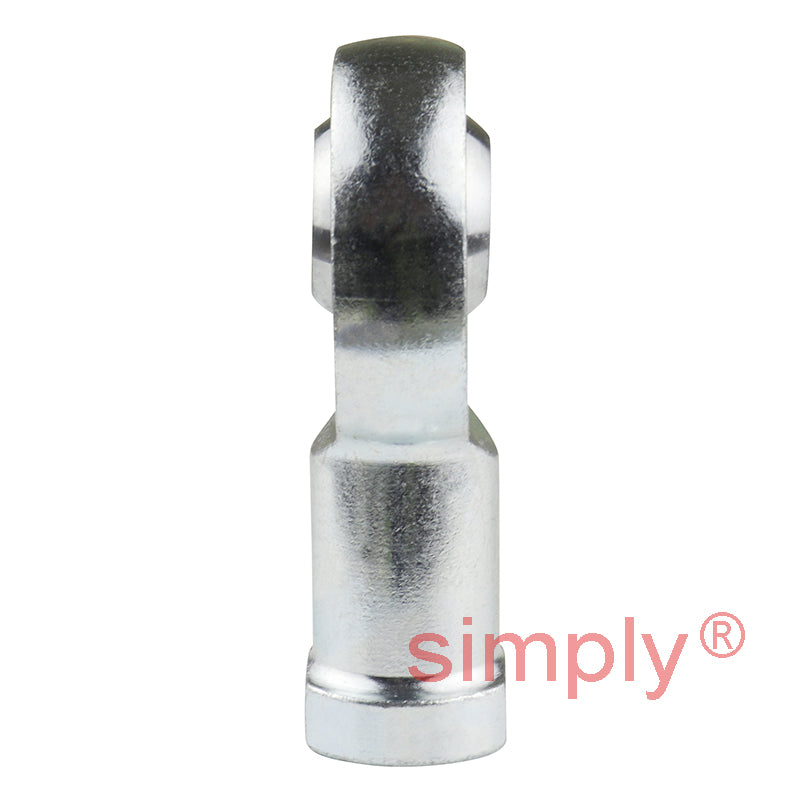

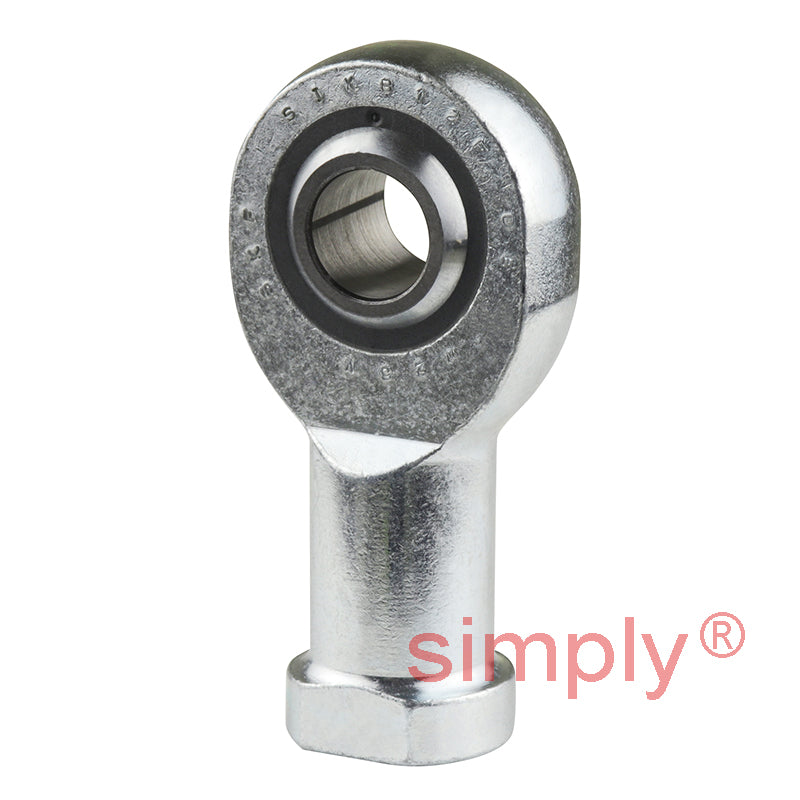

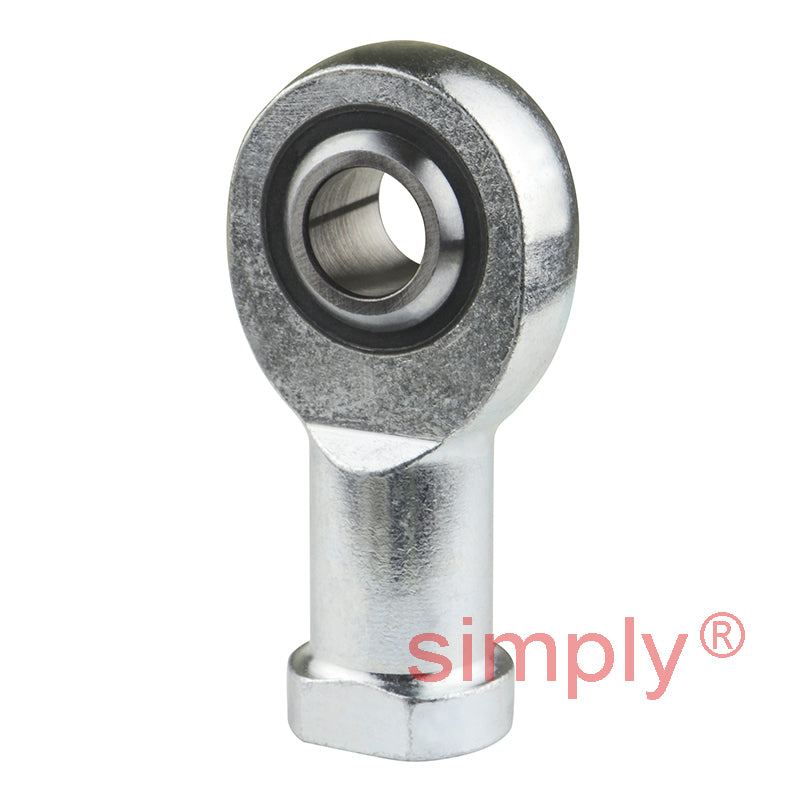

SKF SIKB12F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M12 Thread
SKF SIKB12F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M12 Thread
Regular price
CHF 55.00
ex VAT
Regular price
Sale price
CHF 55.00
ex VAT
Equivalent to: FS-M12
In stock
Price Break
10+
CHF 43.35
19+
CHF 40.92
29+
CHF 40.43
39+
CHF 39.94
49+
CHF 39.46
74+
CHF 38.97
99+
CHF 36.53
199+
CHF 36.05
249+
CHF 35.56
499+
CHF 35.07
999+
CHF 34.10
Description
Description
|

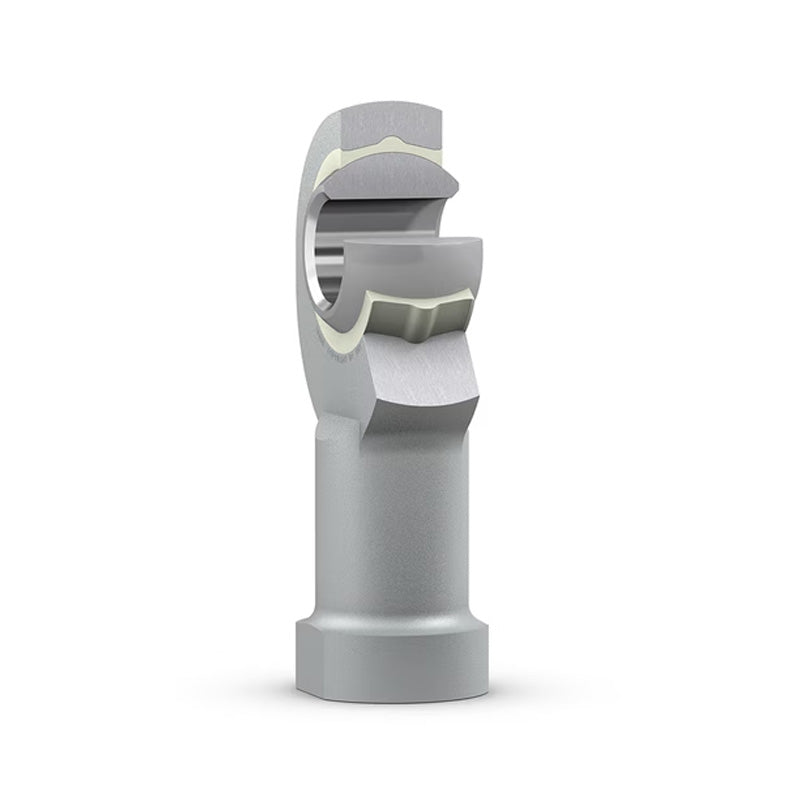

SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: FS-M12
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 12mm |
|---|---|
| d2 max | 33mm |
| G | M12 |
| B | 16mm |
| C1 max | 12mm |
| h | 50mm |
| a | 13deg |
| Dynamic load C | 13.2 kN |
| Static load Co | 17 kN |
| Weight | 0.12 kg |
| dk | 22.2mm |
| d3 | 17.5mm |
| d4 max | 23mm |
| l3 min | 18mm |
| l4 max | 67mm |
| l5 | 6.5mm |
| l7 min | 16mm |
| r1 min | 0.3mm |
| w h14 | 19mm |
