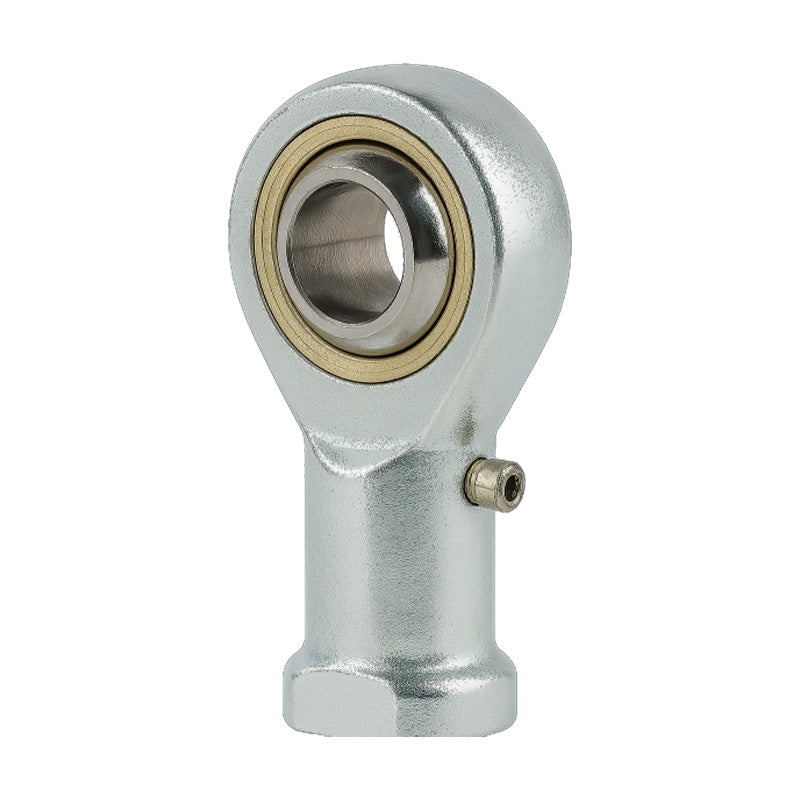

SKF SIKB16FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M16x1.5 Thread
SKF SIKB16FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M16x1.5 Thread
Regular price
CHF 69.00
ex VAT
Regular price
Sale price
CHF 69.00
ex VAT
In stock
Price Break
10+
CHF 54.53
19+
CHF 51.47
29+
CHF 50.85
39+
CHF 50.24
49+
CHF 49.63
74+
CHF 49.02
99+
CHF 45.95
199+
CHF 45.34
249+
CHF 44.73
499+
CHF 44.11
999+
CHF 42.89
Description
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 16mm |
|---|---|
| d2 max | 43mm |
| G | M16x1.5 |
| B | 21mm |
| C1 max | 15mm |
| h | 64mm |
| a | 15deg |
| Dynamic load C | 21.4 kN |
| Static load Co | 34.5 kN |
| Weight | 0.23 kg |
| dk | 28.5mm |
| d3 | 22mm |
| d4 max | 29mm |
| l3 min | 24mm |
| l4 max | 86mm |
| l5 | 8mm |
| l7 min | 21mm |
| r1 min | 0.3mm |
| w h14 | 22mm |
