SKU: SIL10C-SKF

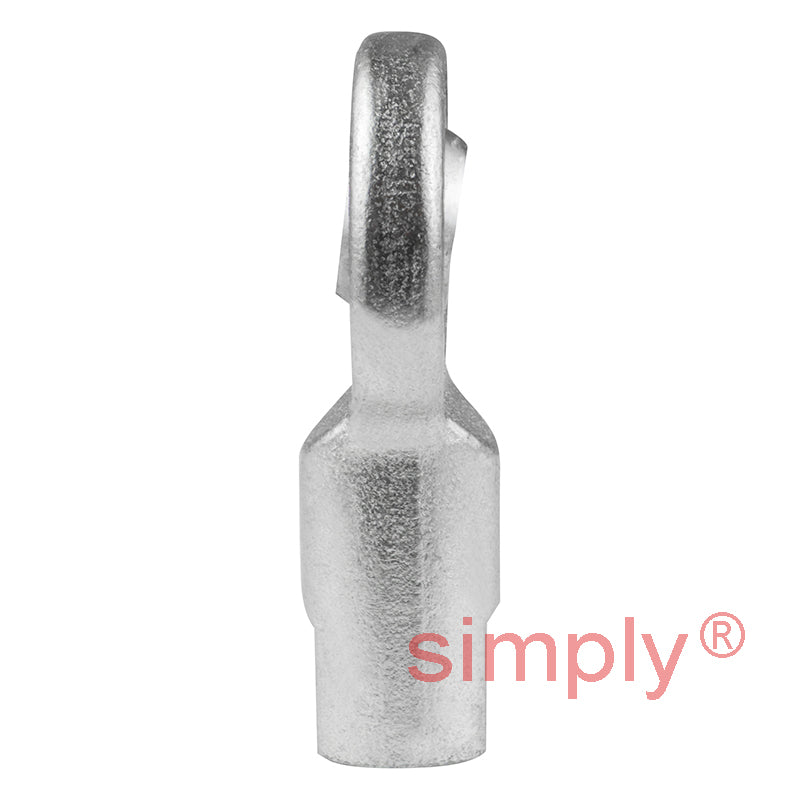

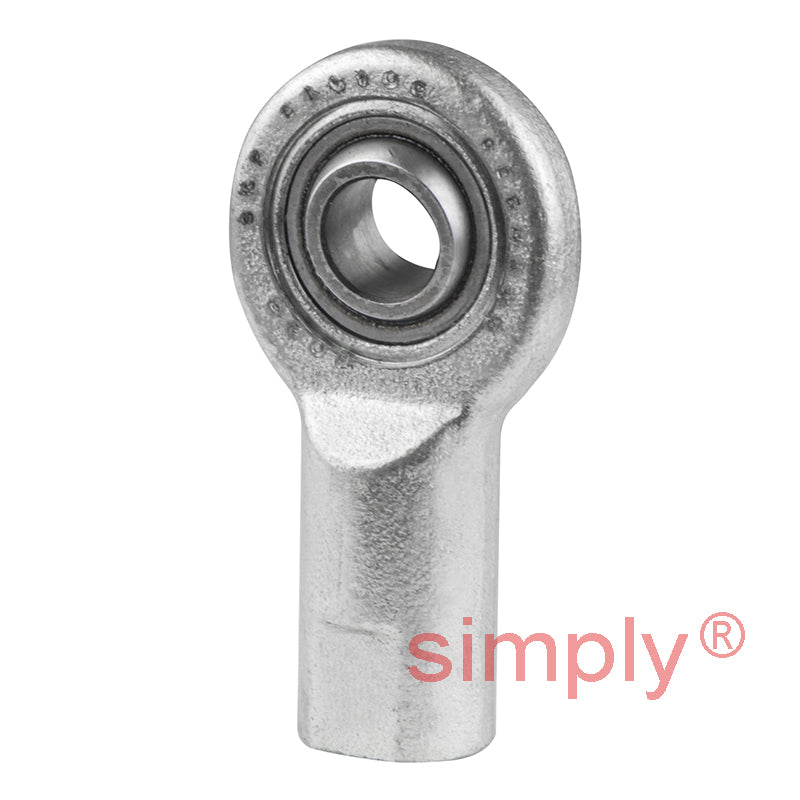

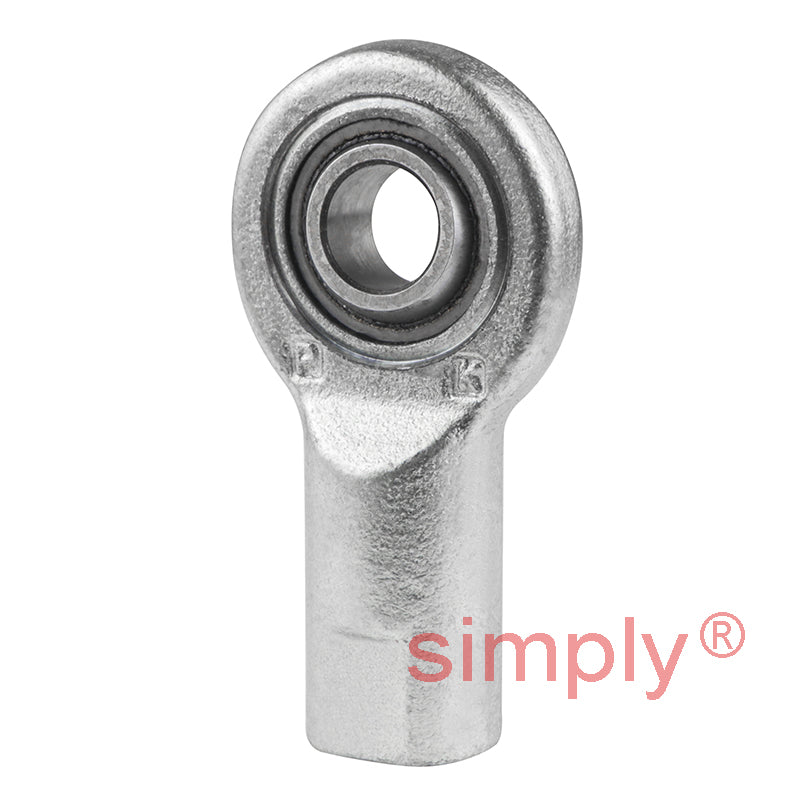

SKF SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread
SKF SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread
Regular price
CHF 69.00
ex VAT
Regular price
Sale price
CHF 69.00
ex VAT
Equivalent to: GIL10UK
In stock
Price Break
10+
CHF 54.35
19+
CHF 51.29
29+
CHF 50.68
39+
CHF 50.07
49+
CHF 49.46
74+
CHF 48.85
99+
CHF 45.80
199+
CHF 45.19
249+
CHF 44.58
499+
CHF 43.97
999+
CHF 42.74
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL10UK
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M10
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 10mm |
|---|---|
| d2 max | 30mm |
| G 6H | M10 |
| B | 9mm |
| C1 max | 7.5mm |
| h1 | 43mm |
| a | 12deg |
| Dynamic load C | 8.65 kN |
| Static load Co | 19 kN |
| Weight | 0.065 kg |
| dk | 16mm |
| d4 | 16mm |
| l3 min | 15mm |
| l4 max | 60mm |
| l5 | 11mm |
| l7 min | 13mm |
| r1 min | 0.3mm |
| w h14 | 14mm |
