SKU: SIL10E-SKF

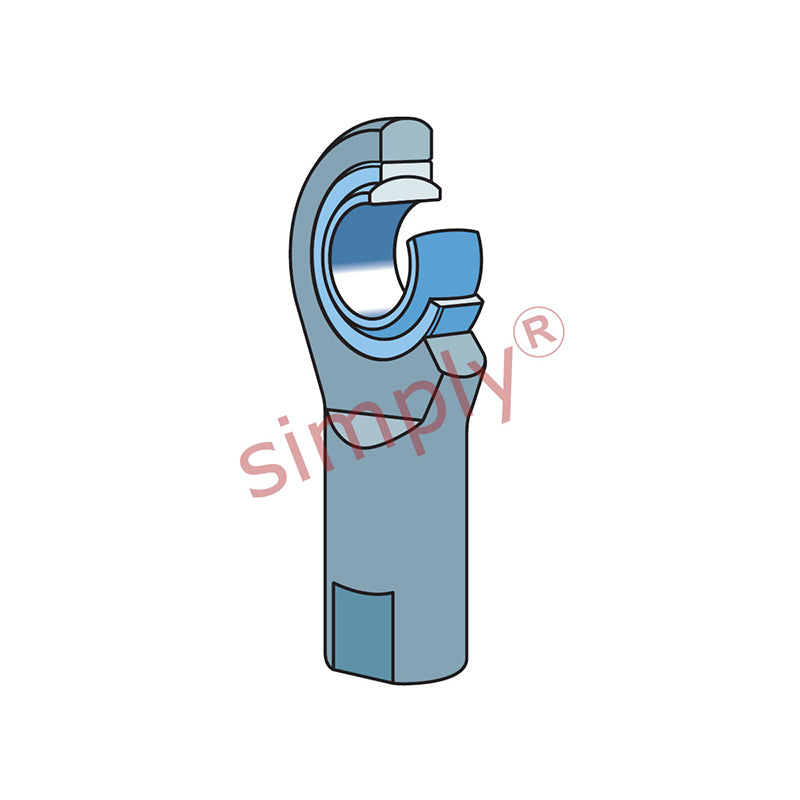

SKF SIL10E Left Hand Steel / Steel Plain Female Rod End M10 Thread
SKF SIL10E Left Hand Steel / Steel Plain Female Rod End M10 Thread
Regular price
CHF 36.00
ex VAT
Regular price
Sale price
CHF 36.00
ex VAT
In stock
Price Break
10+
CHF 27.96
19+
CHF 26.39
29+
CHF 26.08
39+
CHF 25.76
49+
CHF 25.45
74+
CHF 25.14
99+
CHF 23.56
199+
CHF 23.25
249+
CHF 22.94
499+
CHF 22.62
999+
CHF 21.99
Description
Description
|
SKF SI..E Series Rod End Bearings: This series is classed as rod end bearing requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time, there is no dedicated lubrication point provided thus lubrication in the form of re-lubrication from the sides of the ball is required. These are metric sized female rod end bearings. They are made of heat treatable C45V steel and zinc coated and chromatized and will operate within -50 deg C to + 200 deg C. Application: Suitable for heavy static or alternating loads, shock loads. Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M10
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm

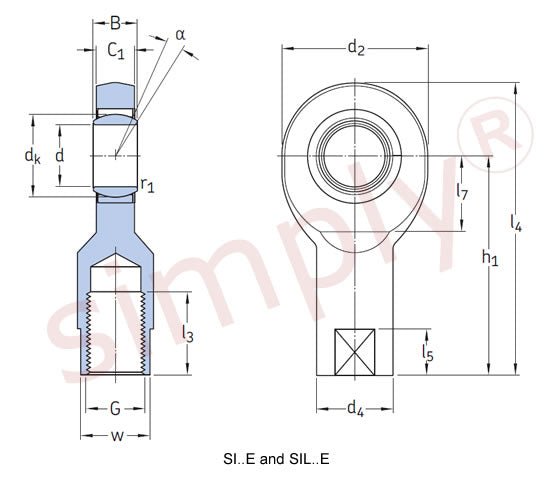

Technical
Technical
| d | 10mm |
|---|---|
| d2 max | 30mm |
| G | M10 |
| B | 9mm |
| C1 max | 7.5mm |
| h | 43mm |
| a | 12deg |
| Dynamic load C | 8.15 kN |
| Static load Co | 19 kN |
| Weight | 0.065 kg |
| dk | 16mm |
| d4 | 16mm |
| l3 min | 15mm |
| l4 max | 60mm |
| l5 | 11mm |
| l7 min | 13mm |
| r1 min | 0.3mm |
| w h14 | 14mm |
