SKU: SIL12C-CDX

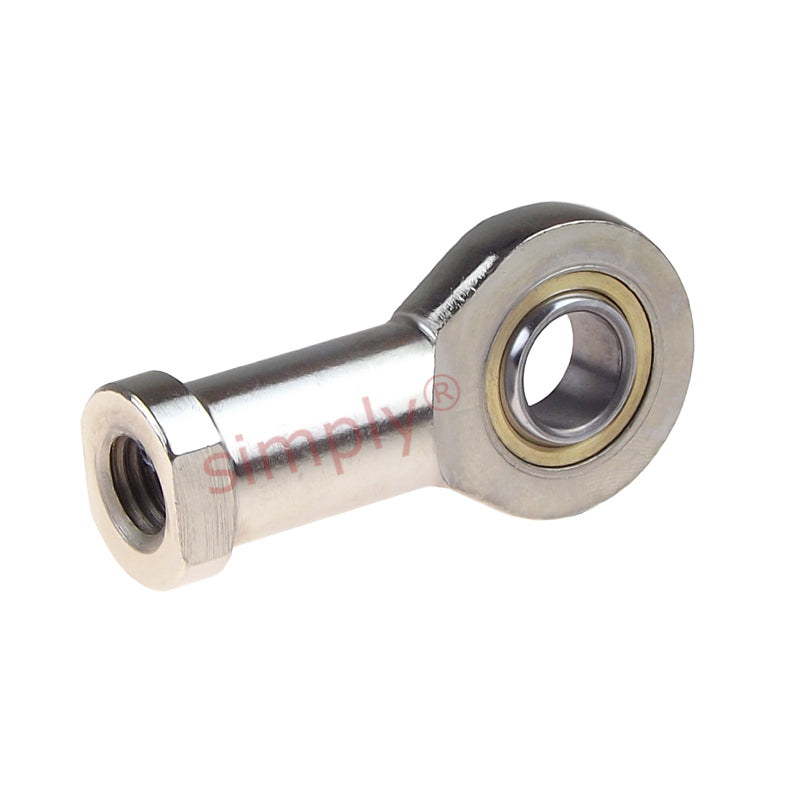

Codex SIL12C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M12 Thread
Codex SIL12C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M12 Thread
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
Equivalent to: GIL12UK
In stock
Price Break
10+
CHF 19.97
19+
CHF 18.84
29+
CHF 18.62
39+
CHF 18.40
49+
CHF 18.17
74+
CHF 17.95
99+
CHF 16.83
199+
CHF 16.60
249+
CHF 16.38
499+
CHF 16.15
999+
CHF 15.70
Description
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL12UK
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M12
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| d2 max | 35mm |
| G | M12 |
| B | 10mm |
| C1 max | 8.5mm |
| h1 | 50mm |
| Max misalignment angle | 10 degrees |
| Dynamic load | 11.4 kN |
| Static load | 25.5 kN |
| dk | 18mm |
| d4 | 19mm |
| l3 min | 18mm |
| l4 max | 69mm |
| l5 | 12mm |
| l7 min | 17mm |
| r1 min | 0.3mm |
| w h14 | 17mm |
| Weight | 0.11 kg |
