SKU: SIL12C-SKF

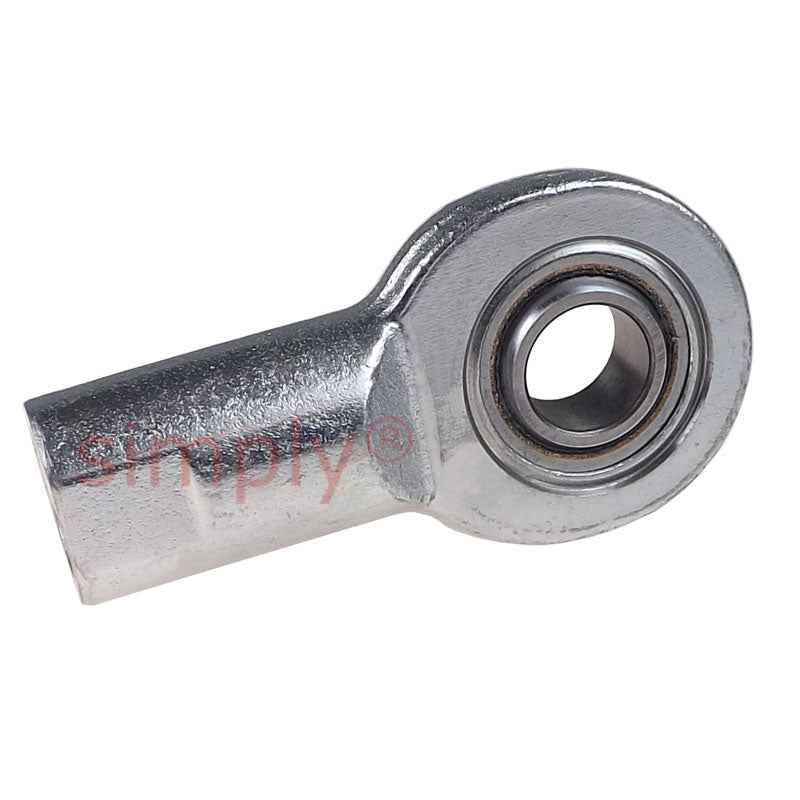

SKF SIL12C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M12 Thread
SKF SIL12C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M12 Thread
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
Equivalent to: GIL12UK
In stock
Price Break
10+
CHF 42.48
19+
CHF 40.09
29+
CHF 39.62
39+
CHF 39.14
49+
CHF 38.66
74+
CHF 38.18
99+
CHF 35.80
199+
CHF 35.32
249+
CHF 34.84
499+
CHF 34.37
999+
CHF 33.41
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL12UK
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| d2 max | 35mm |
| G 6H | M12 |
| B | 10mm |
| C1 max | 8.5mm |
| h1 | 50mm |
| a | 10deg |
| Dynamic load C | 11.4 kN |
| Static load Co | 25.5 kN |
| Weight | 0.11 kg |
| dk | 18mm |
| d4 | 19mm |
| l3 min | 18mm |
| l4 max | 69mm |
| l5 | 12mm |
| l7 min | 17mm |
| r1 min | 0.3mm |
| w h14 | 17mm |
