SKU: SIL20C-CDX

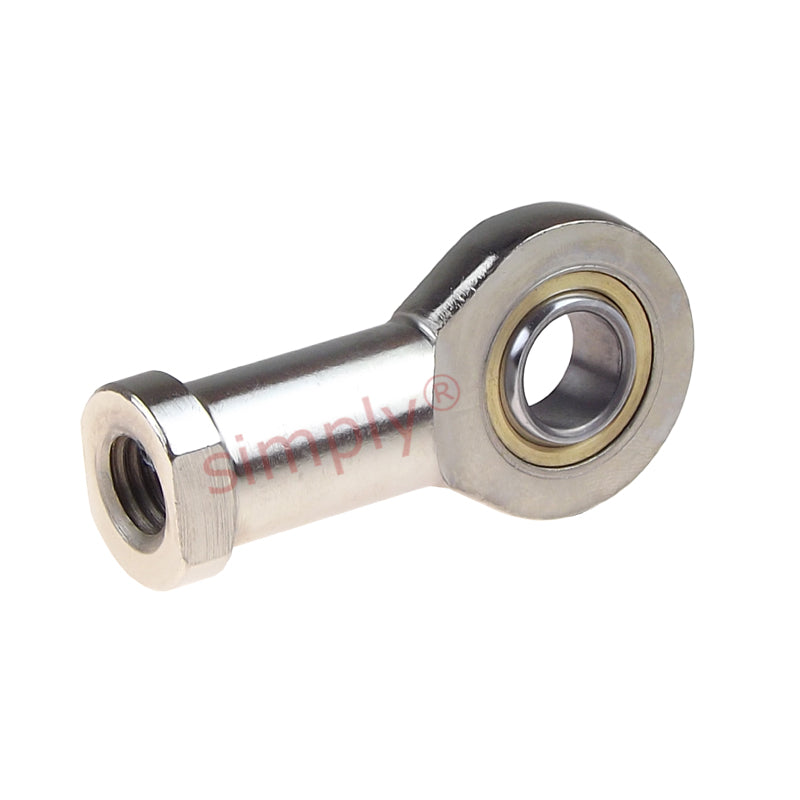

Codex SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread
Codex SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread
Regular price
CHF 33.00
ex VAT
Regular price
Sale price
CHF 33.00
ex VAT
Equivalent to: GIL20UK
In stock
Price Break
10+
CHF 25.79
19+
CHF 24.34
29+
CHF 24.05
39+
CHF 23.77
49+
CHF 23.48
74+
CHF 23.19
99+
CHF 21.74
199+
CHF 21.45
249+
CHF 21.16
499+
CHF 20.87
999+
CHF 20.29
Description
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL20UK
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 54mm |
| G | M20x1.5 |
| B | 16mm |
| C1 max | 13.5mm |
| h1 | 77mm |
| Max misalignment angle | 9 degrees |
| Dynamic load | 31.5 kN |
| Static load | 57 kN |
| dk | 29mm |
| d4 | 28mm |
| l3 min | 30mm |
| l4 max | 106mm |
| l5 | 16mm |
| l7 min | 24mm |
| r1 min | 0.3mm |
| w h14 | 24mm |
| Weight | 0.35 kg |
