SKU: SIL20C-SKF

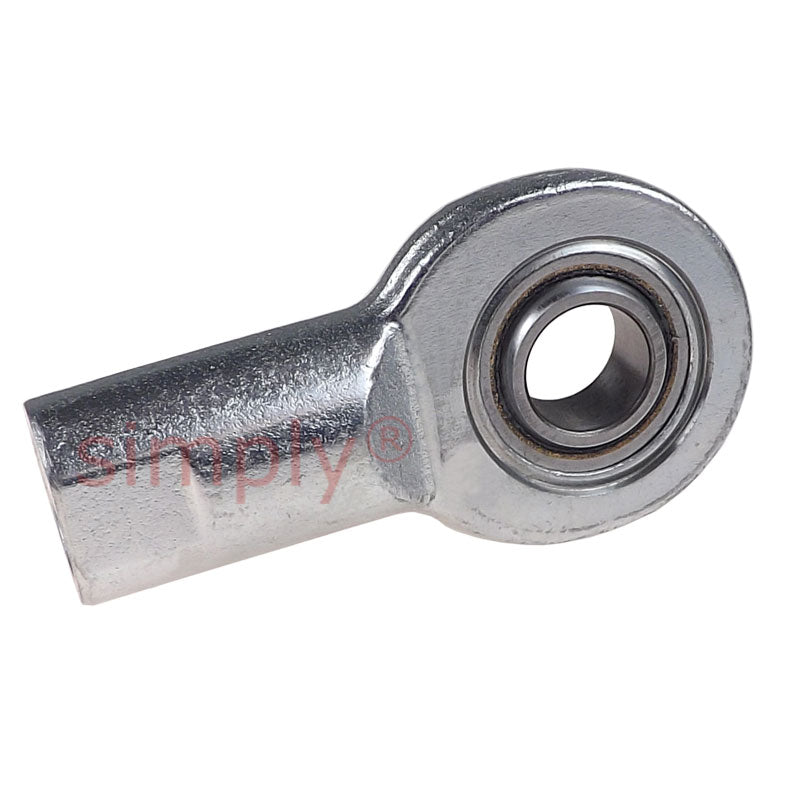

SKF SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread
SKF SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread
Regular price
CHF 69.00
ex VAT
Regular price
Sale price
CHF 69.00
ex VAT
Equivalent to: GIL20UK
In stock
Price Break
10+
CHF 54.88
19+
CHF 51.80
29+
CHF 51.18
39+
CHF 50.56
49+
CHF 49.95
74+
CHF 49.33
99+
CHF 46.25
199+
CHF 45.63
249+
CHF 45.01
499+
CHF 44.40
999+
CHF 43.16
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL20UK
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 54mm |
| G 6H | M20x1.5 |
| B | 16mm |
| C1 max | 13.5mm |
| h1 | 77mm |
| a | 9deg |
| Dynamic load C | 31.5 kN |
| Static load Co | 57 kN |
| Weight | 0.35 kg |
| dk | 29mm |
| d4 | 28mm |
| l3 min | 30mm |
| l4 max | 106mm |
| l5 | 16mm |
| l7 min | 24mm |
| r1 min | 0.3mm |
| w h14 | 24mm |
