SKU: SIL6C-CDX

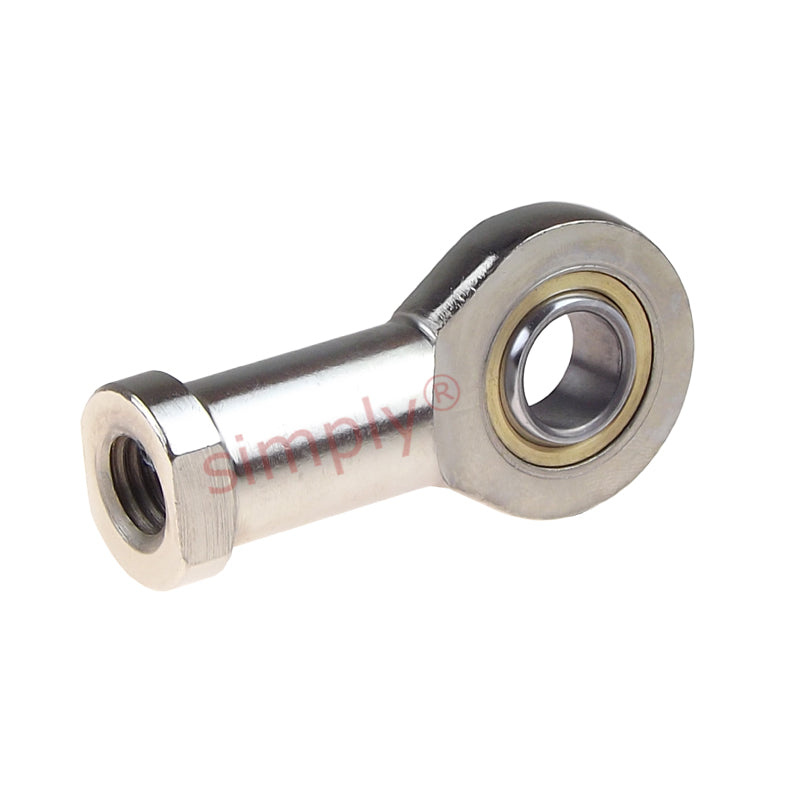

Codex SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread
Codex SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
Equivalent to: GIL6UK
In stock
Price Break
10+
CHF 20.53
19+
CHF 19.38
29+
CHF 19.14
39+
CHF 18.91
49+
CHF 18.68
74+
CHF 18.45
99+
CHF 17.30
199+
CHF 17.07
249+
CHF 16.84
499+
CHF 16.61
999+
CHF 16.15
Description
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL6UK
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M6
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 6mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 6mm |
|---|---|
| d2 max | 22mm |
| G | M6 |
| B | 6mm |
| C1 max | 4.5mm |
| h1 | 30mm |
| Max misalignment angle | 13 degrees |
| Dynamic load | 3.6 kN |
| Static load | 8.15 kN |
| dk | 10mm |
| d4 | 11mm |
| l3 min | 11mm |
| l4 max | 43mm |
| l5 | 8mm |
| l7 min | 10mm |
| r1 min | 0.3mm |
| w h14 | 9mm |
| Weight | 0.023 kg |
