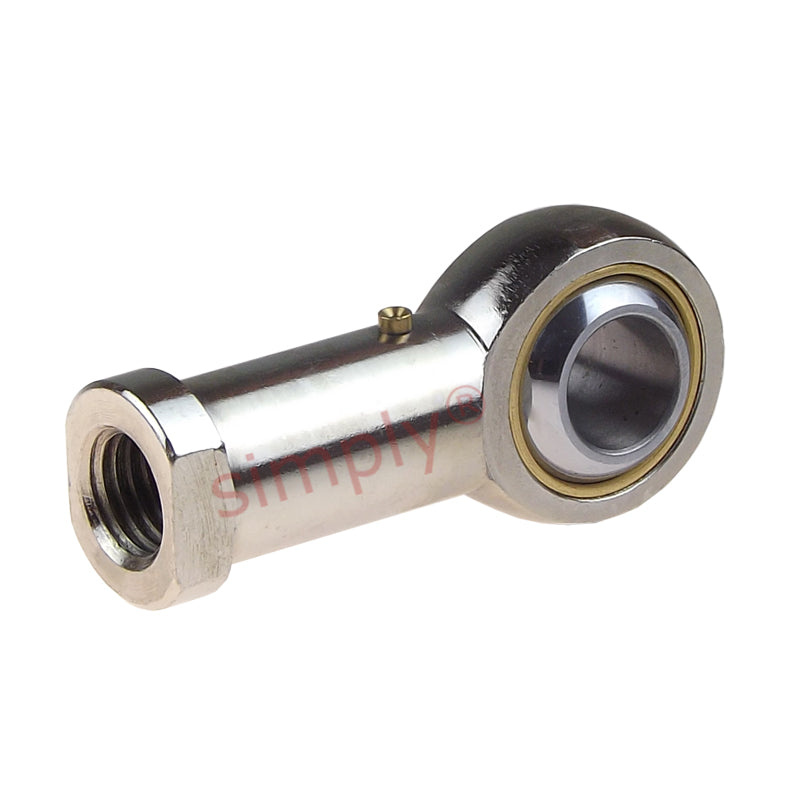

Codex SILKAC20M Left Hand Steel / Bronze Lined Plain Female Rod End M20x1.5 Thread
Codex SILKAC20M Left Hand Steel / Bronze Lined Plain Female Rod End M20x1.5 Thread
Regular price
CHF 41.00
ex VAT
Regular price
Sale price
CHF 41.00
ex VAT
Equivalent to: TSFL20 PHSL20 SILBP20S PHS20L FBL-M20
In stock
Price Break
10+
CHF 32.43
19+
CHF 30.61
29+
CHF 30.24
39+
CHF 29.88
49+
CHF 29.51
74+
CHF 29.15
99+
CHF 27.33
199+
CHF 26.96
249+
CHF 26.60
499+
CHF 26.23
999+
CHF 25.50
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: TSFL20 PHSL20 SILBP20S PHS20L FBL-M20
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
- Material:
- Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 51mm |
| G | M20x1.5 |
| B | 25mm |
| C1 max | 18mm |
| h1 | 77mm |
| Max misalignment angle | 14 degrees |
| Dynamic load | 31.5 kN |
| Static load | 35.5 kN |
| dk | 34.9mm |
| d3 | 27.5mm |
| d4 max | 37mm |
| l3 min | 30mm |
| l4 max | 105mm |
| l5 | 10mm |
| l7 min | 25mm |
| r1 min | 0.3mm |
| w | 30mm |
| Weight | 0.4 kg |
