SKU: SILKB20F-SKF

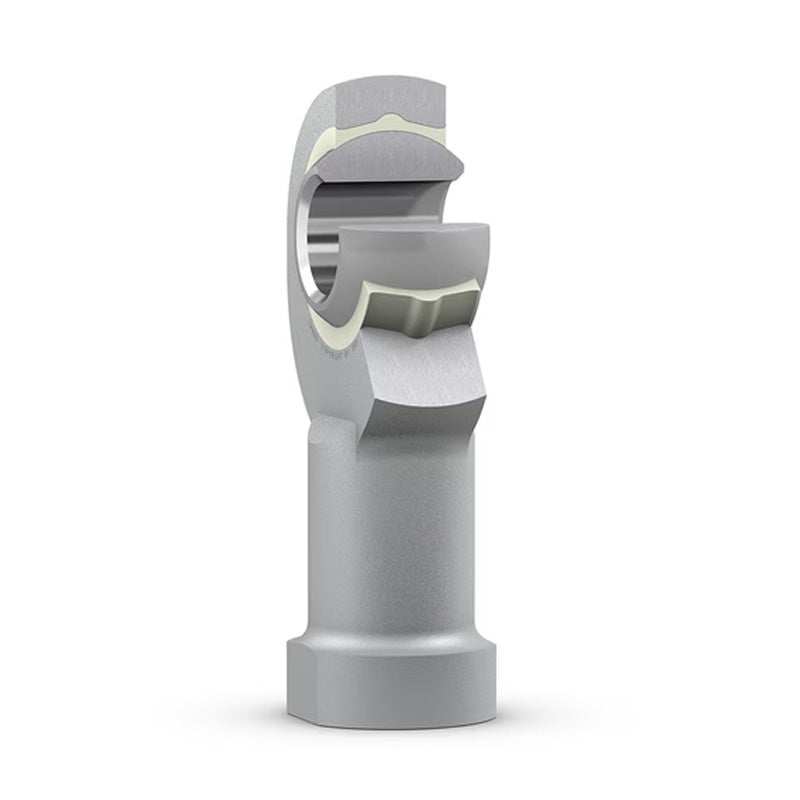

SKF SILKB20F Left Hand Steel / PTFE FRP Lined Plain Female Rod End M20x1.5 Thread
SKF SILKB20F Left Hand Steel / PTFE FRP Lined Plain Female Rod End M20x1.5 Thread
Regular price
CHF 81.00
ex VAT
Regular price
Sale price
CHF 81.00
ex VAT
Equivalent to: FSL-M20
In stock
Price Break
10+
CHF 64.32
19+
CHF 60.71
29+
CHF 59.98
39+
CHF 59.26
49+
CHF 58.54
74+
CHF 57.81
99+
CHF 54.20
199+
CHF 53.48
249+
CHF 52.76
499+
CHF 52.03
999+
CHF 50.59
Description
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: FSL-M20
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 51mm |
| G | M20x1.5 |
| B | 25mm |
| C1 max | 18mm |
| h | 77mm |
| a | 14deg |
| Dynamic load C | 31 kN |
| Static load Co | 50 kN |
| Weight | 0.38 kg |
| dk | 34.9mm |
| d3 | 27.5mm |
| d4 max | 37mm |
| l3 min | 30mm |
| l4 max | 103mm |
| l5 | 10mm |
| l7 min | 25mm |
| r1 min | 0.3mm |
| w h14 | 30mm |
