SKU: SK004

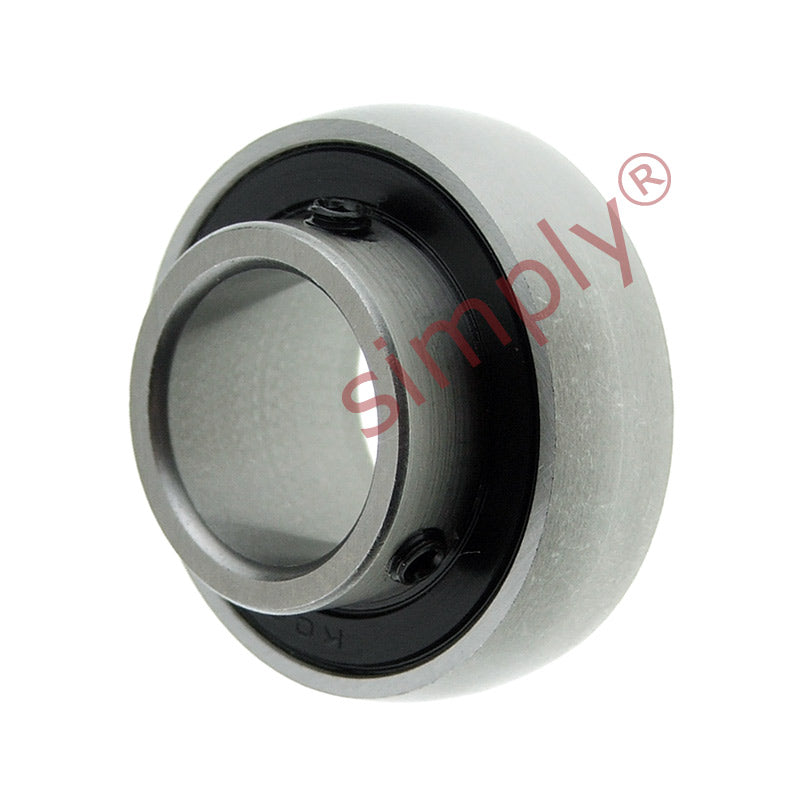

SK004 Stainless Steel Metric Grub Screw Type Bearing Insert with 20mm Bore 42mm Outside Dia
SK004 Stainless Steel Metric Grub Screw Type Bearing Insert with 20mm Bore 42mm Outside Dia
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
In stock
Price Break
3+
CHF 13.15
4+
CHF 12.42
9+
CHF 12.27
19+
CHF 12.12
49+
CHF 11.97
99+
CHF 11.82
499+
CHF 11.08
999+
CHF 10.94
1999+
CHF 10.79
2999+
CHF 10.64
4999+
CHF 10.35
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Style:
- SK
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 42mm |
| Bi | 21mm |
| Be | 12mm |
| r | 1mm |
| n | 6mm |
| G | 4mm |
| W | 27mm |
| Grub screw | M5x0.5 |
| Dynamic load | 955N ~ 97.383 kgf |
| Static load | 516N ~ 52.617 kgf |
| Weight | 0.09 kg |
