SKU: SL197_NAK
NAK SL197 Hardened Stainless Sleeve for Shafts 99.95-100.11mm - Allow 7-10 Days
NAK SL197 Hardened Stainless Sleeve for Shafts 99.95-100.11mm - Allow 7-10 Days
Regular price
CHF 44.00
ex VAT
Regular price
Sale price
CHF 44.00
ex VAT
Equivalent to: CR99393
In stock
Price Break
10+
CHF 34.37
19+
CHF 32.44
29+
CHF 32.06
39+
CHF 31.67
49+
CHF 31.28
74+
CHF 30.90
99+
CHF 28.97
199+
CHF 28.58
249+
CHF 28.19
499+
CHF 27.81
999+
CHF 27.04
Description
Description

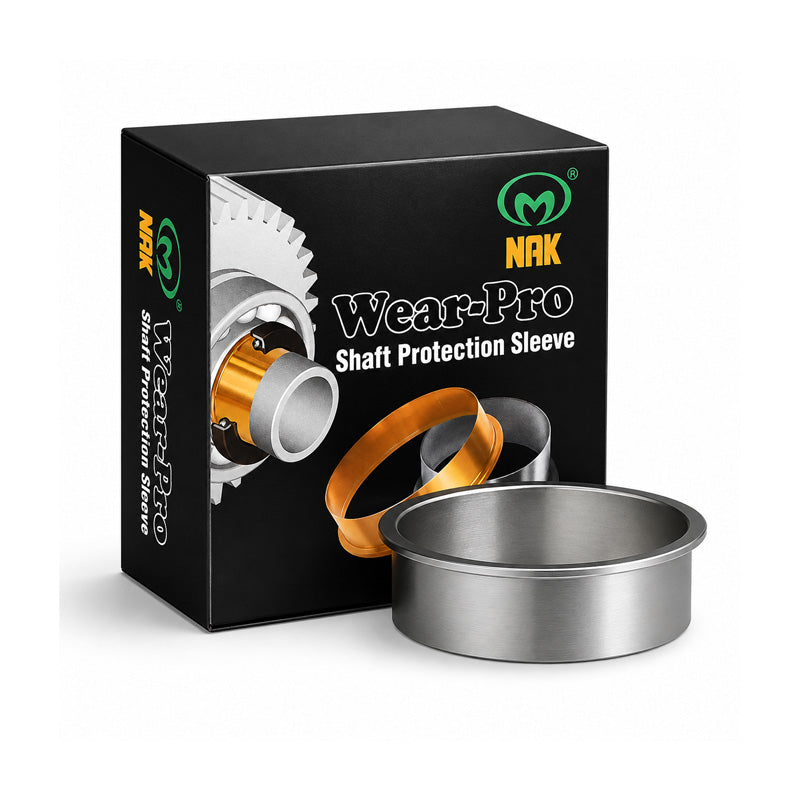

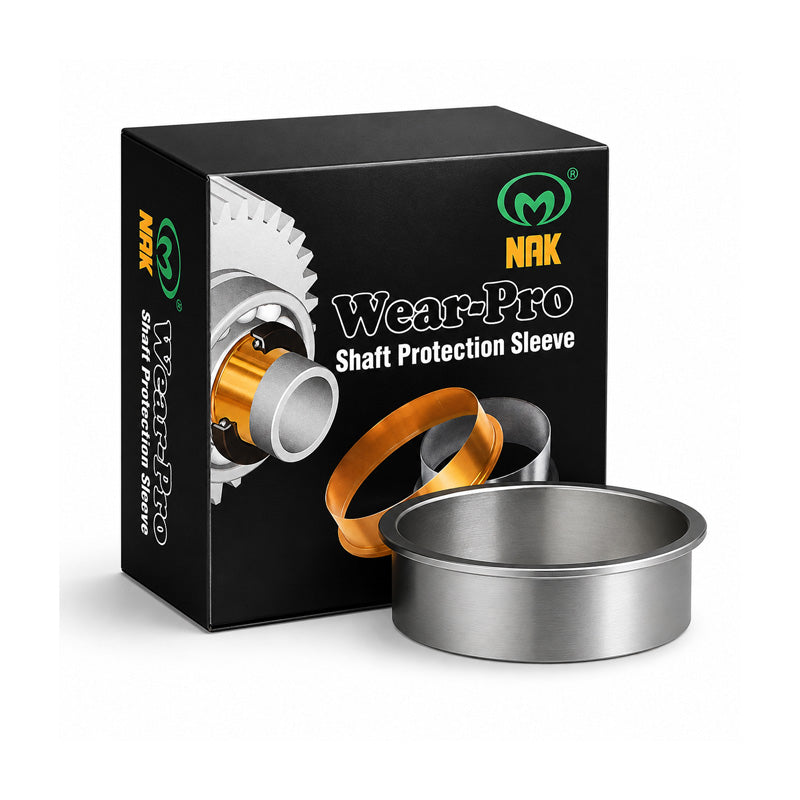

NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99393
- Brand / Quality:
- NAK - High Quality
- Width:
- 25.4mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 100mm
- Flange Diameter:
- 109.5mm
Technical
Technical
| Shaft Diameter Range (A) | 99.95-100.11mm |
|---|---|
| Nominal Shaft Diameter (A) | 100mm |
| Flange Diameter (D) | 109.5mm |
| Width on Shaft (X) | 20.6mm |
| Overall Width (Y) | 25.4mm |
| Installation Depth (Z) | 52mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
