SKU: SL2-RHP

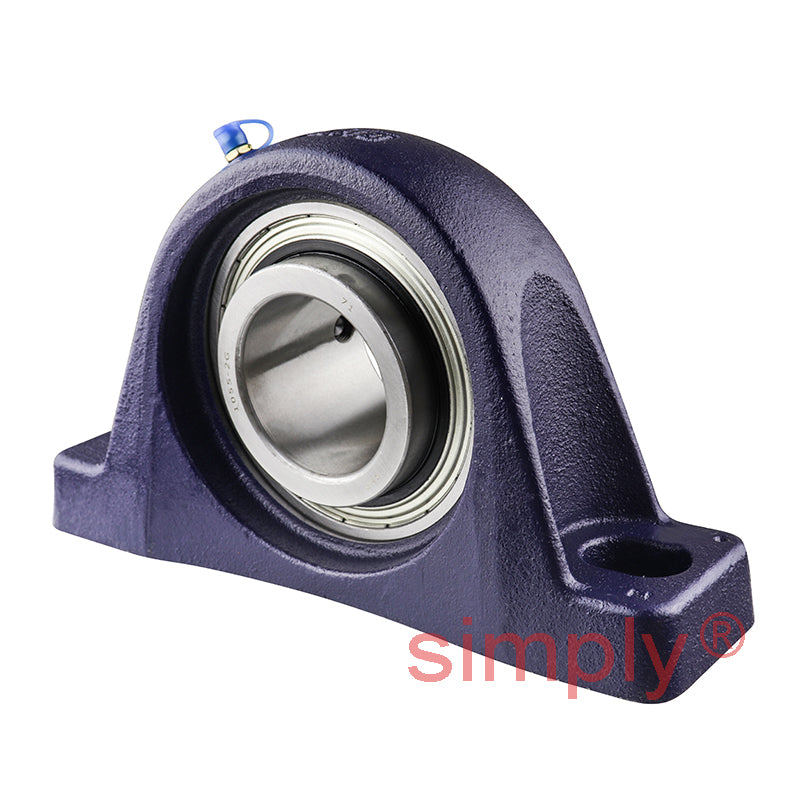

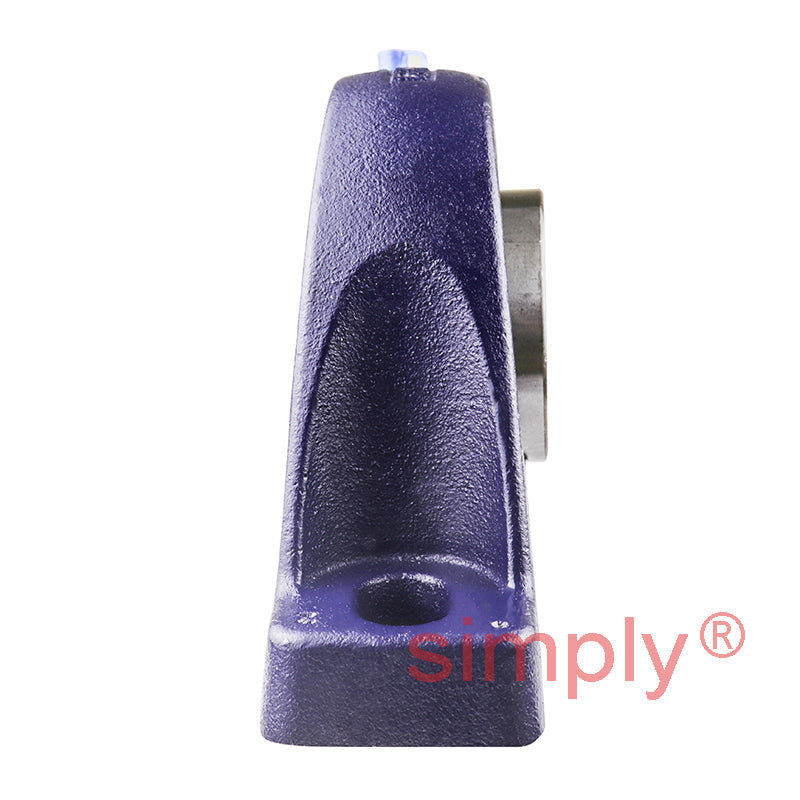

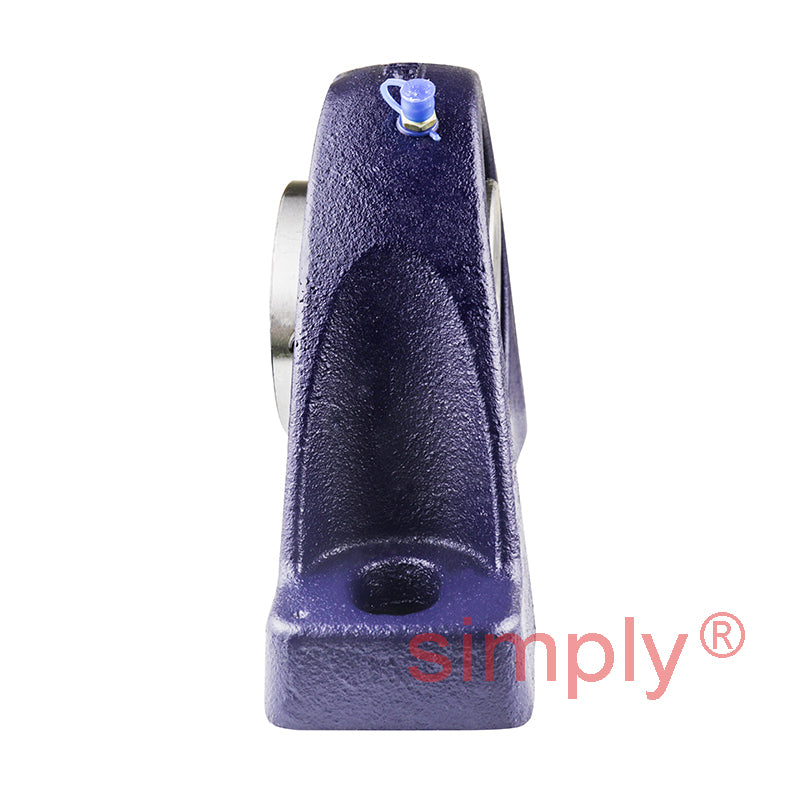

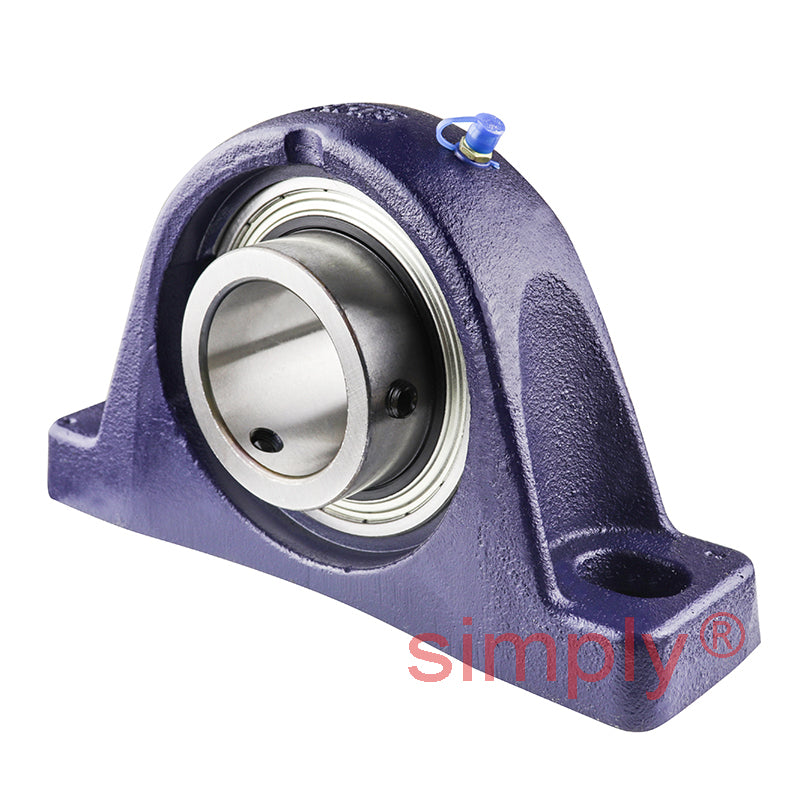

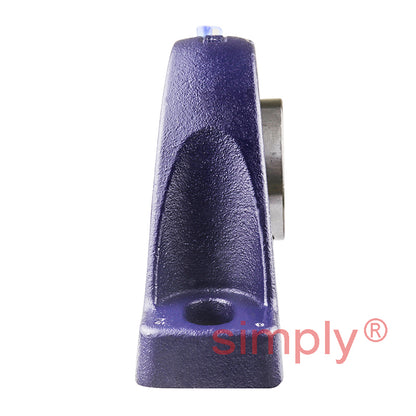

RHP SL2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
RHP SL2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
Regular price
CHF 121.89
ex VAT
Regular price
Sale price
CHF 121.89
ex VAT
In stock
Price Break
10+
CHF 108.48
19+
CHF 102.39
29+
CHF 101.17
39+
CHF 99.95
49+
CHF 98.73
74+
CHF 97.51
99+
CHF 91.42
199+
CHF 90.20
249+
CHF 88.98
499+
CHF 87.76
999+
CHF 85.32
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SL
- Bolt Hole Centres:
- 6.398-7.028 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 8.641 inch |
| H | 2.437 inch |
| H1 | 0.913 inch |
| H2 | 5.039 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| s1 | - inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
