SKU: SL224_IMP_NAK
NAK SL224 Hardened Stainless Sleeve for Shafts 3.740-3.746 inch - Allow 7-10 Days
NAK SL224 Hardened Stainless Sleeve for Shafts 3.740-3.746 inch - Allow 7-10 Days
Regular price
CHF 48.00
ex VAT
Regular price
Sale price
CHF 48.00
ex VAT
Equivalent to: CR99490
In stock
Price Break
10+
CHF 37.67
19+
CHF 35.55
29+
CHF 35.13
39+
CHF 34.71
49+
CHF 34.28
74+
CHF 33.86
99+
CHF 31.74
199+
CHF 31.32
249+
CHF 30.90
499+
CHF 30.47
999+
CHF 29.63
Description
Description

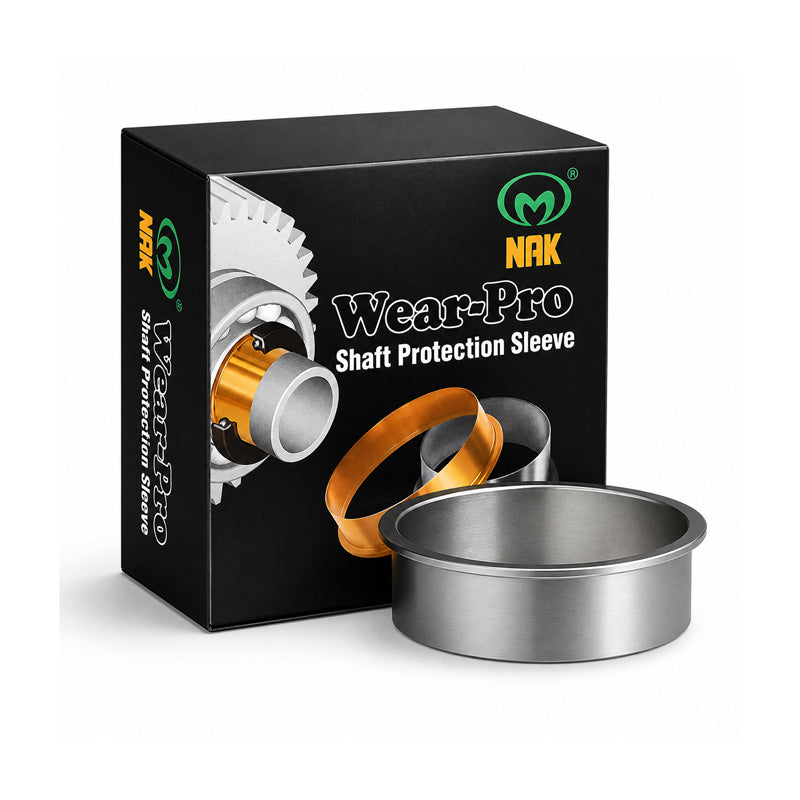

NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99490
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.551 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 4.921 inch
- Flange Diameter:
- 5.402 inch
Technical
Technical
| Shaft Diameter Range (A) | 3.740-3.746 inch |
|---|---|
| Nominal Shaft Diameter (A) | 4.921 inch |
| Flange Diameter (D) | 5.402 inch |
| Width on Shaft (X) | 0.394 inch |
| Overall Width (Y) | 0.551 inch |
| Installation Depth (Z) | 1.437 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
