SKU: SL30-RHP

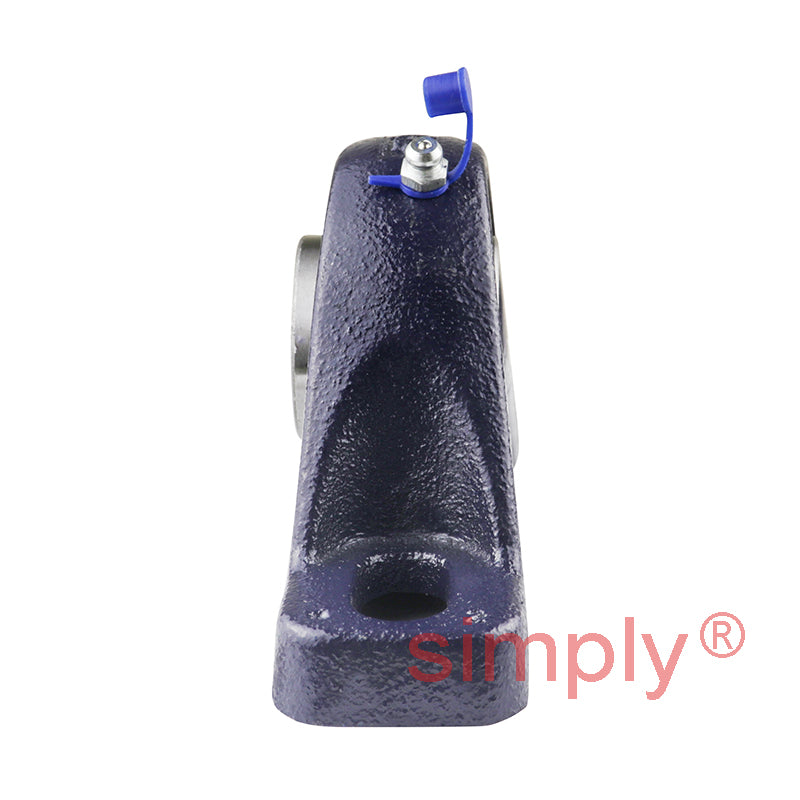

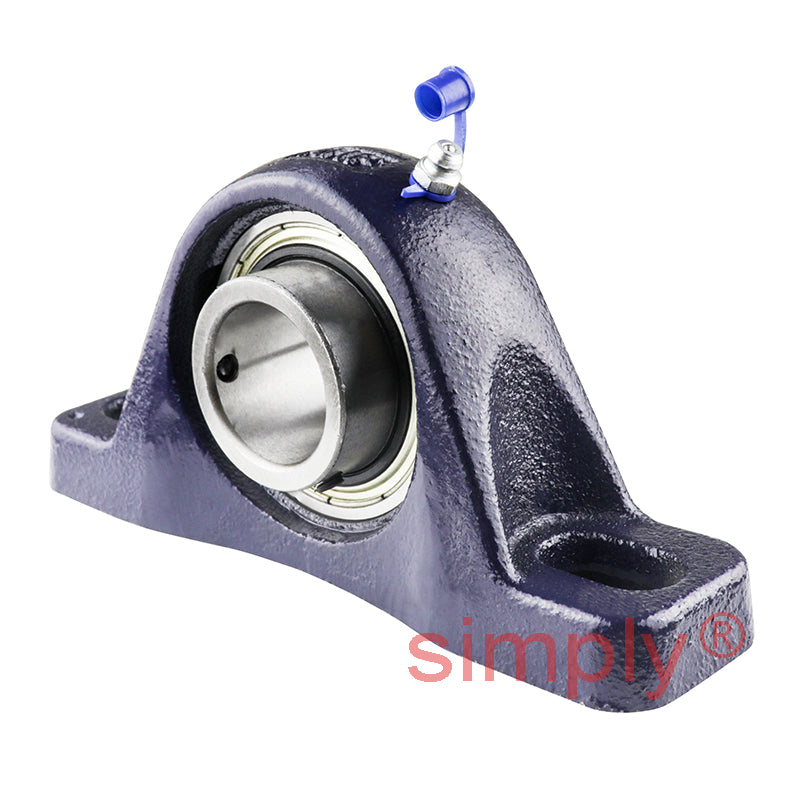

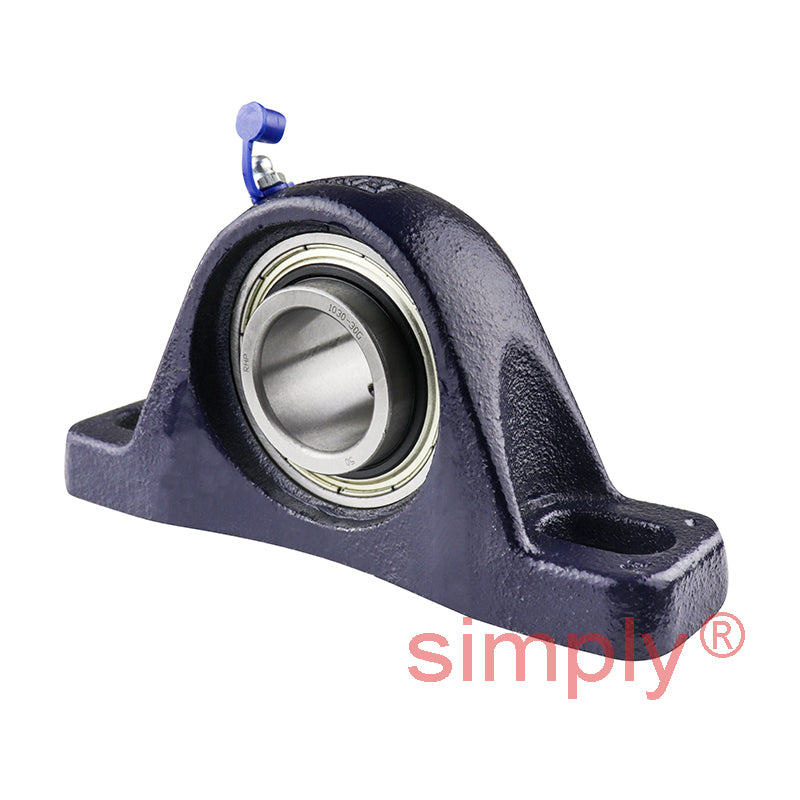

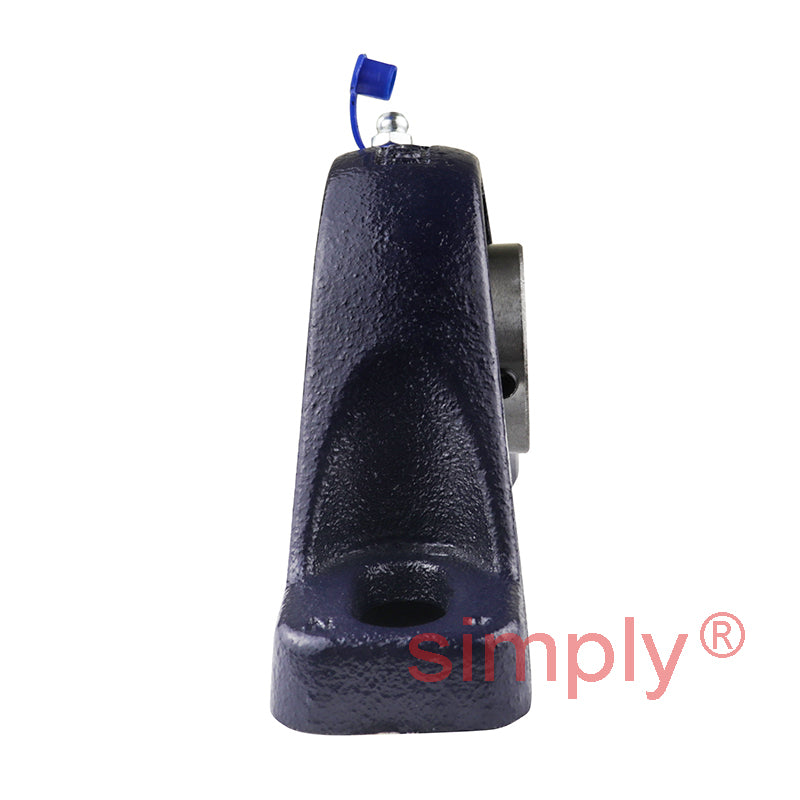

RHP SL30 Two Bolt Cast Iron Pillow Block and 30mm Bore Grub Screw Full Width Insert
RHP SL30 Two Bolt Cast Iron Pillow Block and 30mm Bore Grub Screw Full Width Insert
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
10+
CHF 39.34
20+
CHF 37.13
30+
CHF 36.69
40+
CHF 36.25
50+
CHF 35.80
75+
CHF 35.36
100+
CHF 33.15
200+
CHF 32.71
250+
CHF 32.27
500+
CHF 31.83
1000+
CHF 30.94
Share this product
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- SL
- Bolt Hole Centres:
- 109-130mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 161.5mm |
| H | 39.67mm |
| H1 | 14.5mm |
| H2 | 79.5mm |
| J max | 130mm |
| J min | 109mm |
| G | 12mm |
| A | 41mm |
| A1 | 27.5mm |
| B | 38.1mm |
| s | 15.93mm |
| s1 | 9.04mm |
| d1 | 40mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
