SKU: SL45-RHP

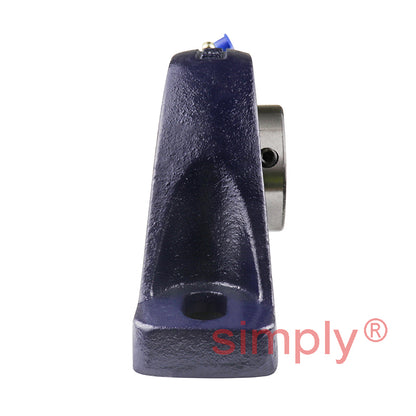

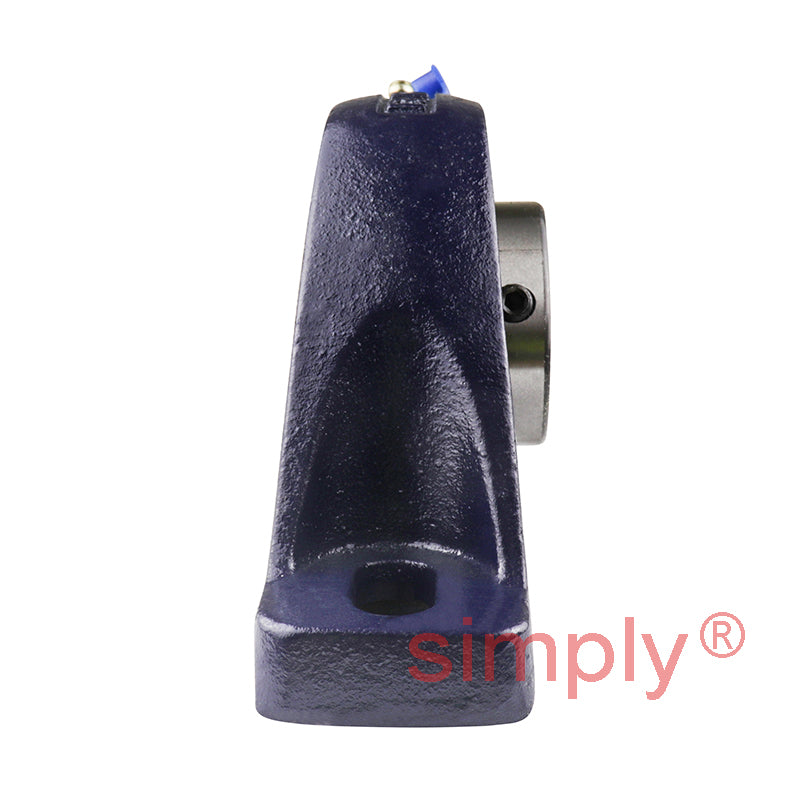

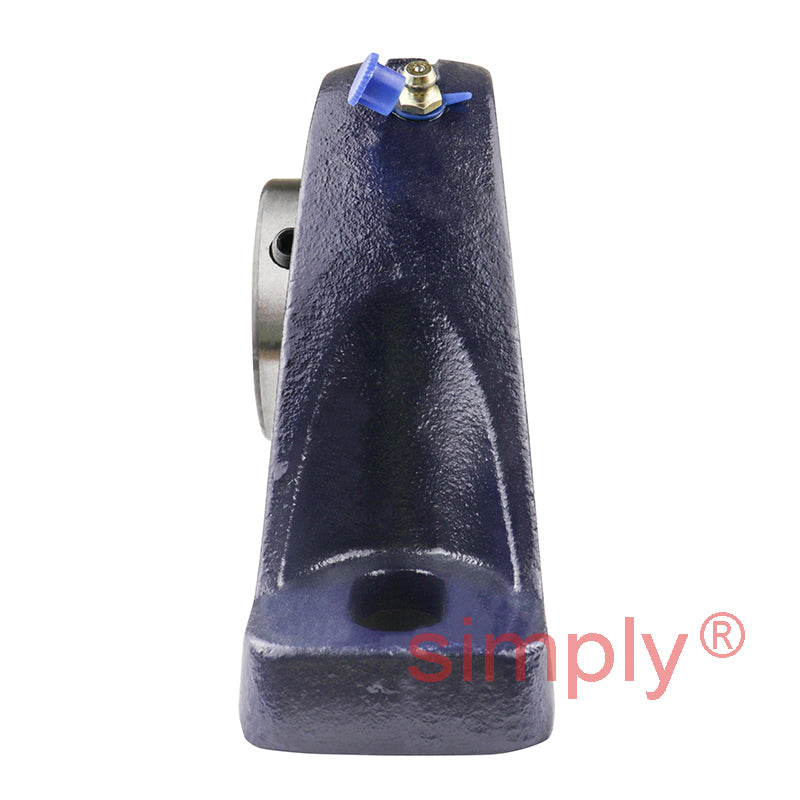

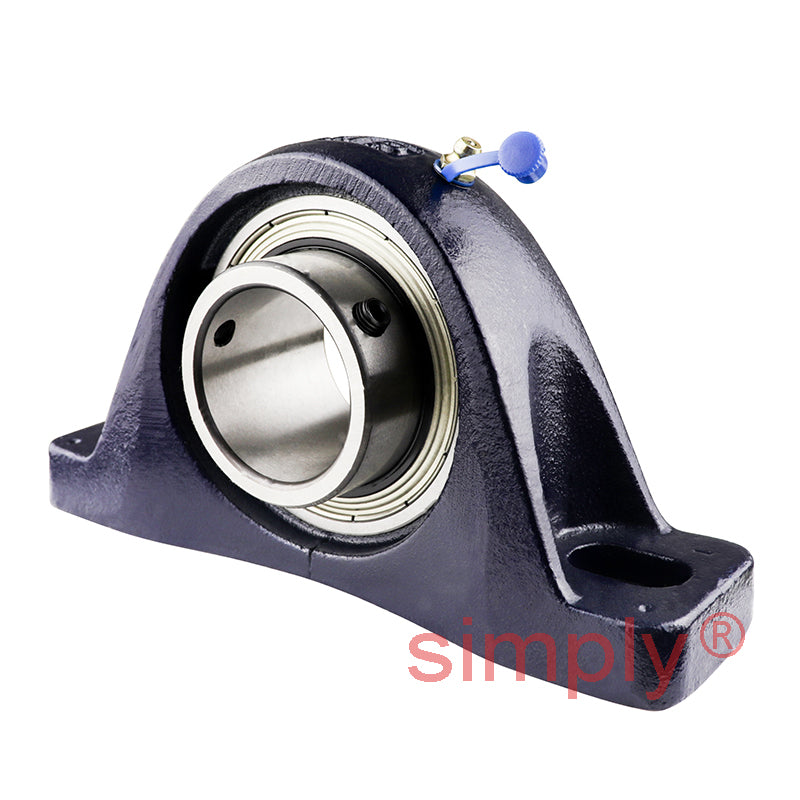

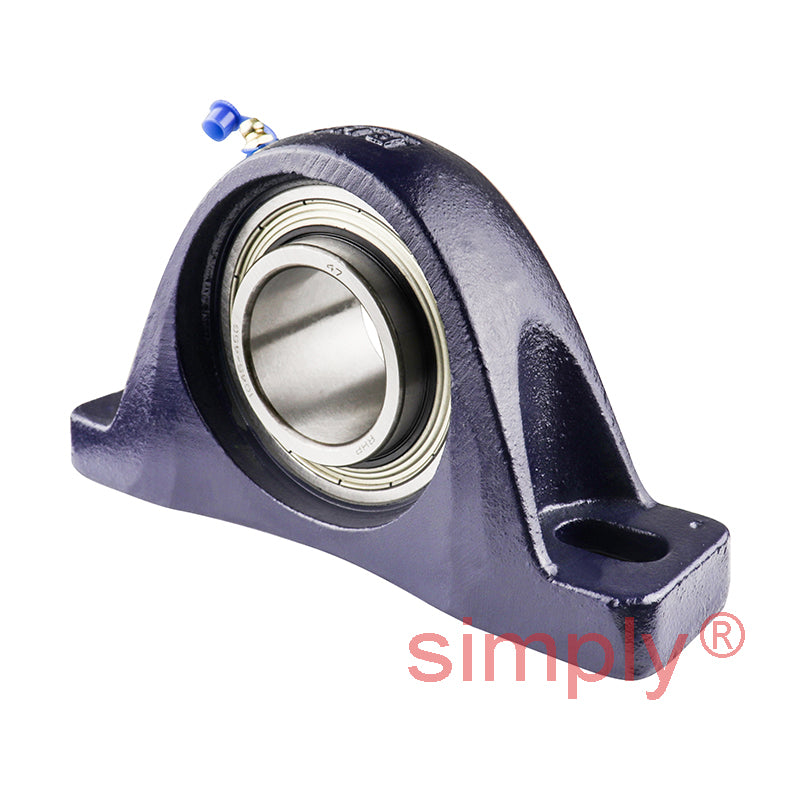

RHP SL45 Two Bolt Cast Iron Pillow Block and 45mm Bore Grub Screw Full Width Insert
RHP SL45 Two Bolt Cast Iron Pillow Block and 45mm Bore Grub Screw Full Width Insert
Regular price
CHF 75.12
ex VAT
Regular price
Sale price
CHF 75.12
ex VAT
In stock
Price Break
10+
CHF 66.86
19+
CHF 63.10
29+
CHF 62.35
39+
CHF 61.60
49+
CHF 60.85
74+
CHF 60.10
99+
CHF 56.34
199+
CHF 55.59
249+
CHF 54.84
499+
CHF 54.09
999+
CHF 52.58
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SL
- Bolt Hole Centres:
- 141.5-161.5mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 197.5mm |
| H | 52.37mm |
| H1 | 18.4mm |
| H2 | 106.4mm |
| J max | 161.5mm |
| J min | 141.5mm |
| G | 12mm |
| A | 54mm |
| A1 | 35mm |
| B | 49.23mm |
| s | 19.1mm |
| s1 | 11.05mm |
| d1 | 57.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
