SKU: SL5/8EC-RHP

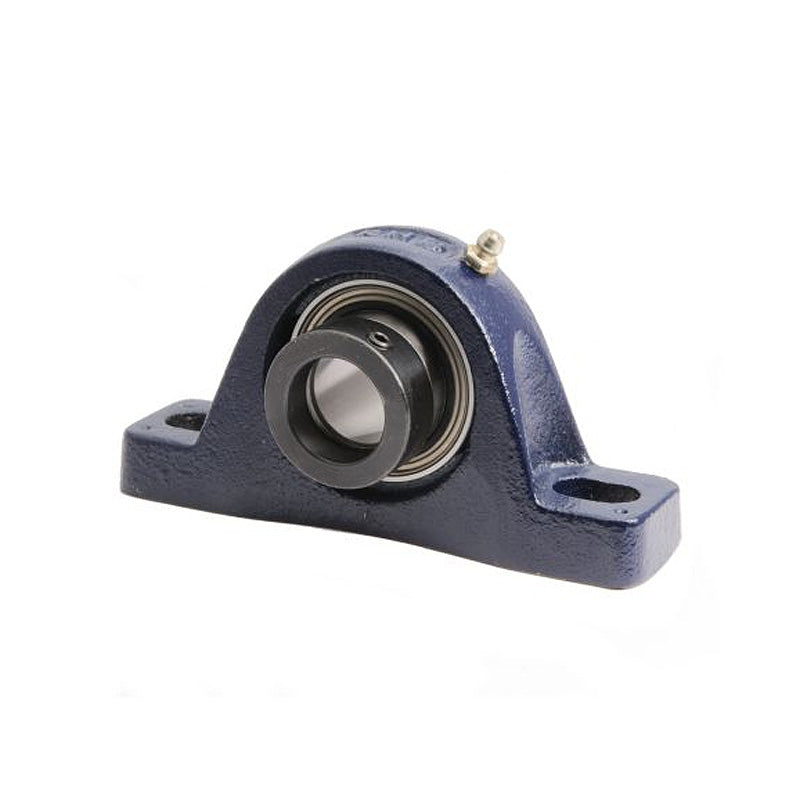

RHP SL5/8EC Two Bolt Cast Iron Pillow Block and 5/8 Bore Eccentic Collar Flat Back Insert
RHP SL5/8EC Two Bolt Cast Iron Pillow Block and 5/8 Bore Eccentic Collar Flat Back Insert
Regular price
CHF 39.15
ex VAT
Regular price
Sale price
CHF 39.15
ex VAT
In stock
Price Break
10+
CHF 34.84
19+
CHF 32.89
29+
CHF 32.49
39+
CHF 32.10
49+
CHF 31.71
74+
CHF 31.32
99+
CHF 29.36
199+
CHF 28.97
249+
CHF 28.58
499+
CHF 28.19
999+
CHF 27.41
Couldn't load pickup availability
Description
Description
|
RHP SL-EC Series Plummer / Pillow Housings: Supplied with a sealed flat back bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 3.366-3.602 inch
Technical
Technical
| Bore | 5/8 inch |
|---|---|
| L | 4.685 inch |
| H | 1.062 inch |
| H1 | 0.433 inch |
| H2 | 2.126 inch |
| J max | 3.602 inch |
| J min | 3.366 inch |
| G | 0.375 inch |
| A | 1.181 inch |
| A1 | 0.807 inch |
| B2 | 1.124 inch |
| s1 | 0.258 inch |
| d2 | 1.125 inch |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1217-5/8ECG+insonly">1217-5/8ECG Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
