SKU: SL55-RHP

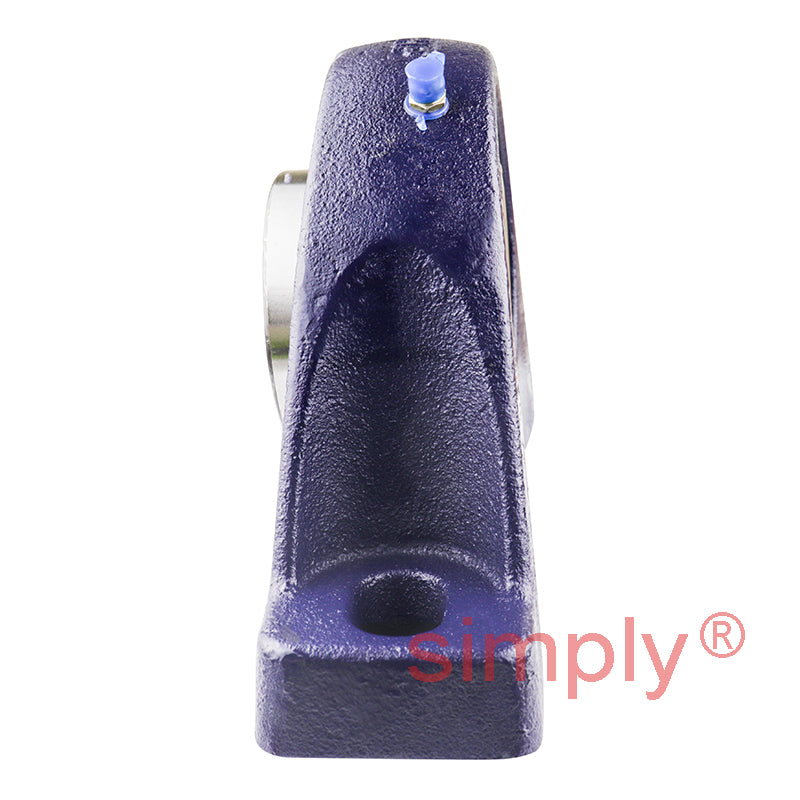

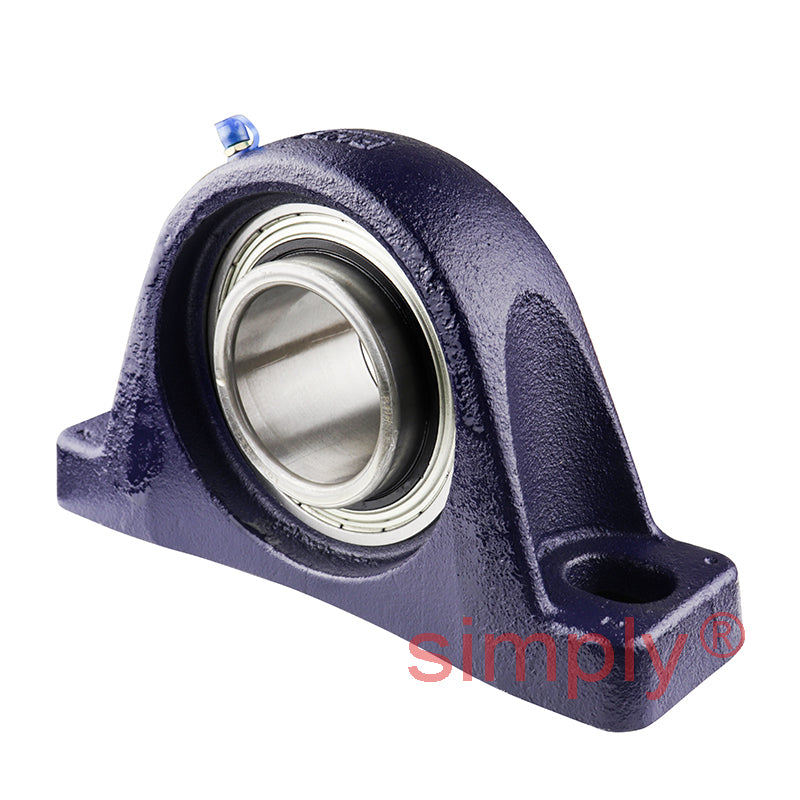

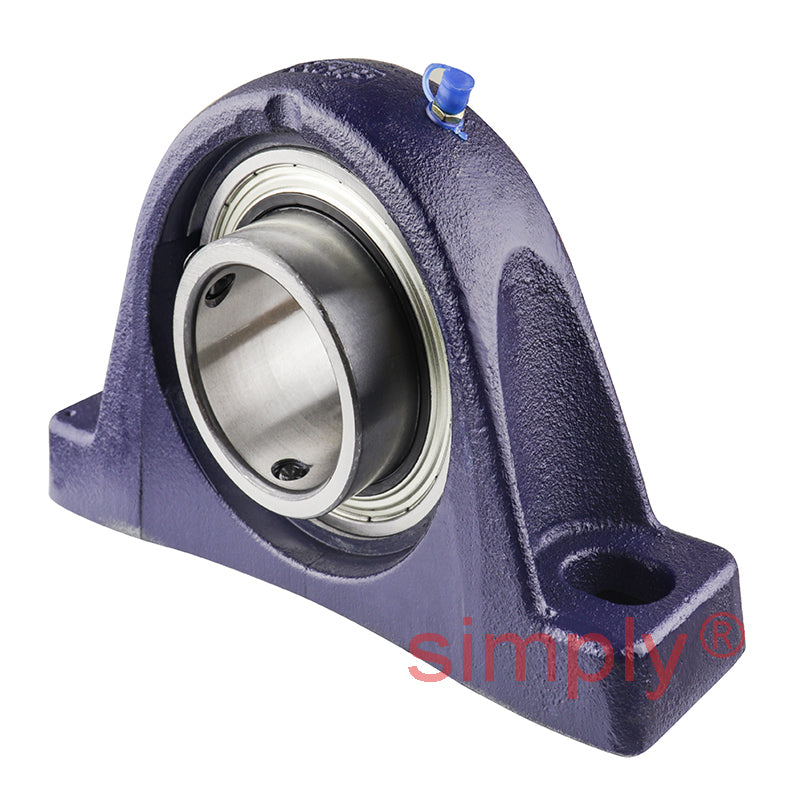

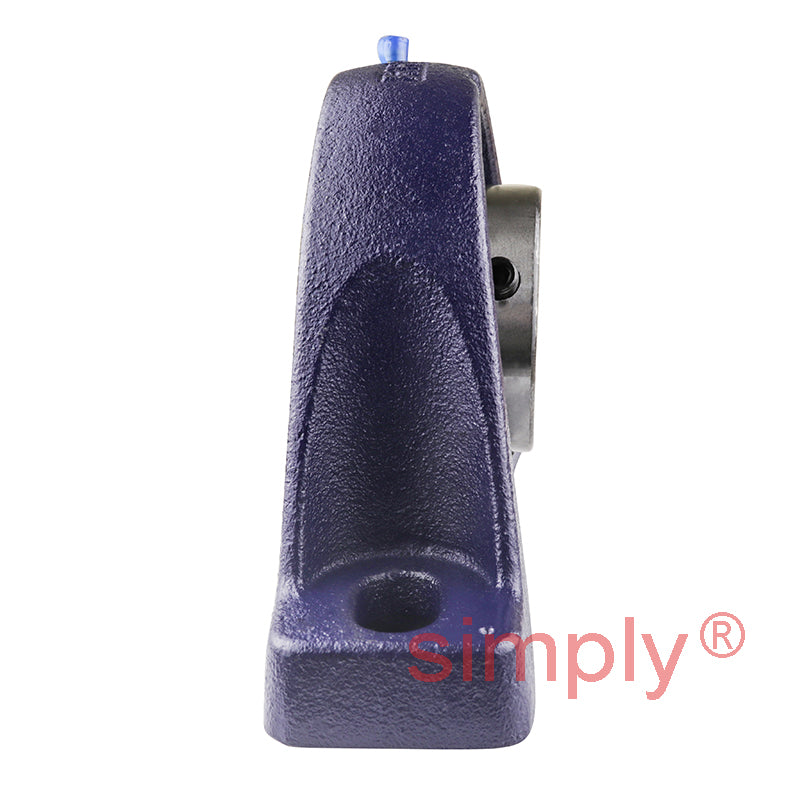

RHP SL55 Two Bolt Cast Iron Pillow Block and 55mm Bore Grub Screw Full Width Insert
RHP SL55 Two Bolt Cast Iron Pillow Block and 55mm Bore Grub Screw Full Width Insert
Regular price
CHF 115.99
ex VAT
Regular price
Sale price
CHF 115.99
ex VAT
In stock
Price Break
10+
CHF 103.23
19+
CHF 97.43
29+
CHF 96.27
39+
CHF 95.11
49+
CHF 93.95
74+
CHF 92.79
99+
CHF 86.99
199+
CHF 85.83
249+
CHF 84.67
499+
CHF 83.51
999+
CHF 81.19
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- SL
- Bolt Hole Centres:
- 162.5-178.5mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 219.5mm |
| H | 61.9mm |
| H1 | 23.2mm |
| H2 | 128mm |
| J max | 178.5mm |
| J min | 162.5mm |
| G | 16mm |
| A | 60mm |
| A1 | 39.5mm |
| B | 55.55mm |
| s | 22.28mm |
| s1 | -mm |
| d1 | 68.81mm |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
