SKU: SL7/8DEC-RHP
RHP SL7/8DEC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Full Width Insert
RHP SL7/8DEC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Full Width Insert
Regular price
CHF 53.00
ex VAT
Regular price
Sale price
CHF 53.00
ex VAT
In stock
Price Break
10+
CHF 42.06
20+
CHF 39.70
30+
CHF 39.23
40+
CHF 38.75
50+
CHF 38.28
75+
CHF 37.81
100+
CHF 35.45
200+
CHF 34.97
250+
CHF 34.50
500+
CHF 34.03
1000+
CHF 33.08
Share this product
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 3.866-4.339 inch

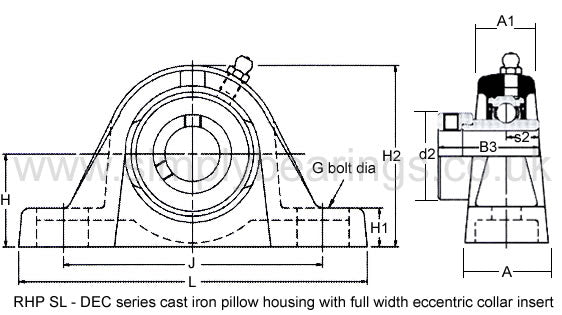

Technical
Technical
| Bore | 7/8 inch |
|---|---|
| L | 5.472 inch |
| H | 1.312 inch |
| H1 | 0.504 inch |
| H2 | 2.669 inch |
| J max | 4.339 inch |
| J min | 3.866 inch |
| G | 0.375 inch |
| A | 1.417 inch |
| A1 | 0.965 inch |
| B3 | 1.748 inch |
| s2 | 0.689 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1025-7/8DECG+insonly">1025-7/8DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
