SKU: SLC1.1/2EC-RHP

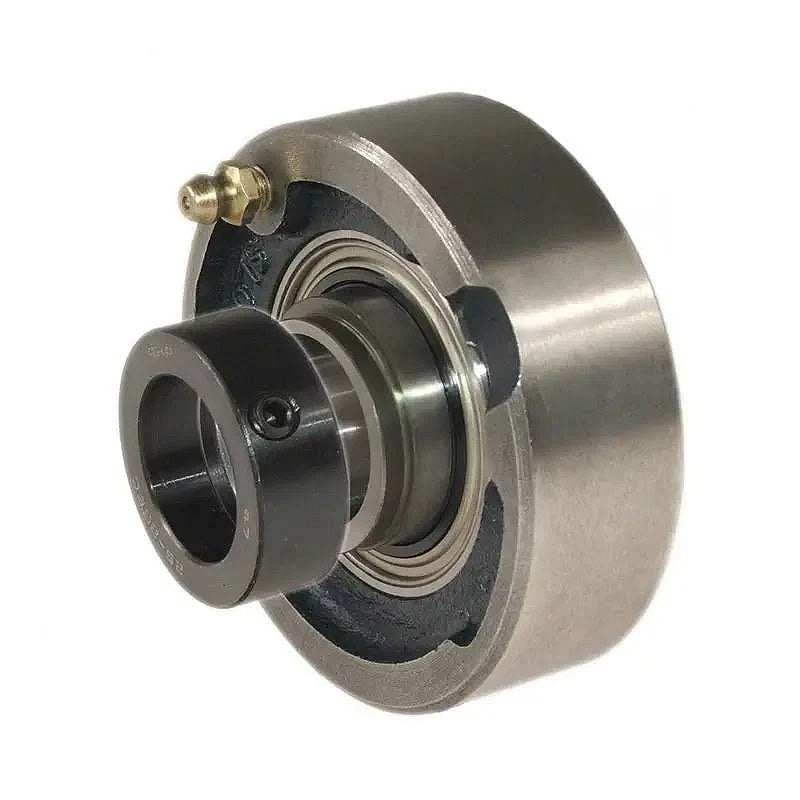

RHP SLC1-1/2EC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter - Allow 2-3 Days

RHP SLC1-1/2EC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter - Allow 2-3 Days
Regular price CHF 112.00 ex VAT
Regular price Sale price CHF 112.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 98.68
20+ CHF 94.70
30+ CHF 92.70
40+ CHF 89.71
50+ CHF 87.72
75+ CHF 82.73
100+ CHF 69.78
200+ CHF 0.00
250+ CHF 0.00
500+ CHF 0.00
1000+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/2 inch
L 4.1885 inch
A 1.469 inch
A2 2.019 inch
B2 1.718 inch
s1 0.435 inch
d2 2.374 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2 kg
Insert <a href="advanced_search_result.php?keywords=1240-1-1/2ECG+insonly">1240-1-1/2ECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
