SKU: SLC1.1/4DEC-RHP

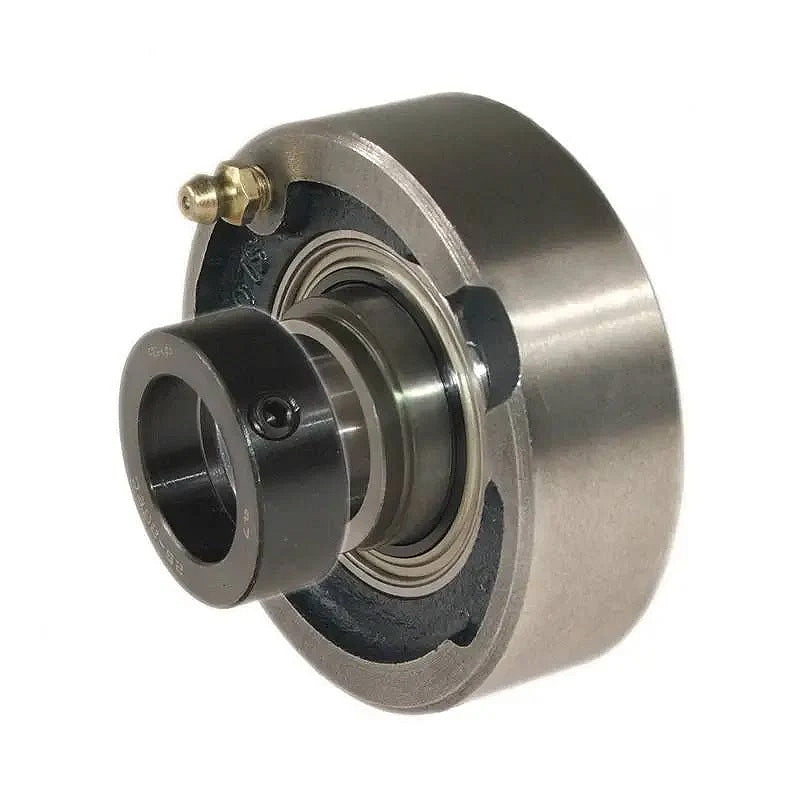

RHP SLC1-1/4DEC Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 98.45mm Outside Diameter
RHP SLC1-1/4DEC Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 98.45mm Outside Diameter
Regular price
CHF 79.00
ex VAT
Regular price
Sale price
CHF 79.00
ex VAT
In stock
Price Break
10+
CHF 62.24
20+
CHF 58.75
30+
CHF 58.05
40+
CHF 57.35
50+
CHF 56.65
75+
CHF 55.95
100+
CHF 52.45
200+
CHF 51.75
250+
CHF 51.05
500+
CHF 50.35
1000+
CHF 48.95
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 98.45mm
- Style:
- SLC
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 3.876 inch |
| A | 1.219 inch |
| A3 | 1.881 inch |
| B3 | 2015 inch |
| s2 | 0.744 inch |
| d2 | 2.188 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-1/4DECG+insonly">1035-1-1/4DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
