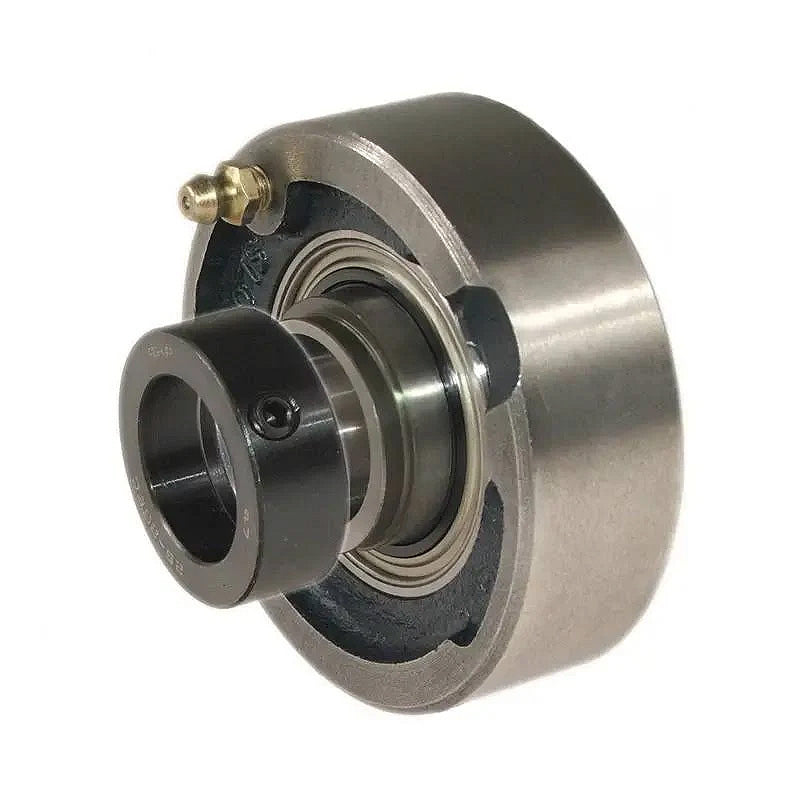

RHP SLC1-1/4ECR Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 88.93mm Outside Diameter
RHP SLC1-1/4ECR Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 88.93mm Outside Diameter
Regular price
CHF 60.18
ex VAT
Regular price
Sale price
CHF 60.18
ex VAT
In stock
Price Break
10+
CHF 53.56
19+
CHF 50.55
29+
CHF 49.95
39+
CHF 49.35
49+
CHF 48.75
74+
CHF 48.14
99+
CHF 45.14
199+
CHF 44.53
249+
CHF 43.93
499+
CHF 43.33
999+
CHF 42.13
Couldn't load pickup availability
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 88.93mm
- Style:
- SLC
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 3.501 inch |
| A | 1.094 inch |
| A2 | 1.597 inch |
| B2 | 1.405 inch |
| s1 | 0.356 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-1-1/4ECG+insonly">1230-1-1/4ECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
