SKU: SLC1.11/16EC-RHP
RHP SLC1-11/16EC Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 111.15mm Outside Diameter
RHP SLC1-11/16EC Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 111.15mm Outside Diameter
Regular price
CHF 94.75
ex VAT
Regular price
Sale price
CHF 94.75
ex VAT
In stock
Price Break
10+
CHF 84.33
19+
CHF 79.59
29+
CHF 78.64
39+
CHF 77.70
49+
CHF 76.75
74+
CHF 75.80
99+
CHF 71.06
199+
CHF 70.12
249+
CHF 69.17
499+
CHF 68.22
999+
CHF 66.33
Couldn't load pickup availability
Description
Description
|

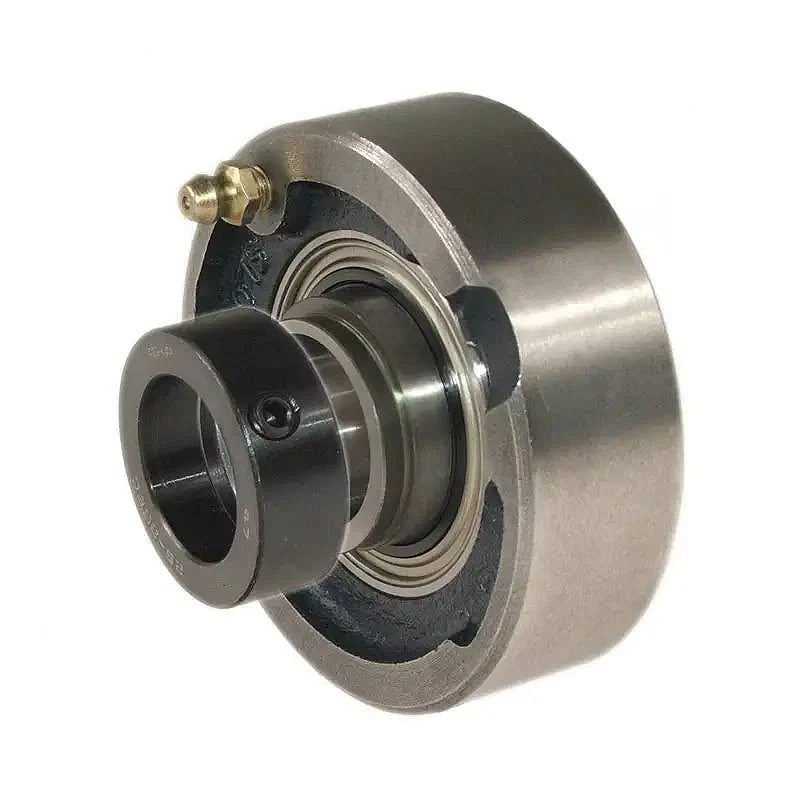

RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 111.15mm
- Style:
- SLC
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 4.376 inch |
| A | 1.437 inch |
| A2 | 2.003 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.5 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-1-11/16ECG+insonly">1245-1-11/16ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
