SKU: SLC1.15/16-RHP

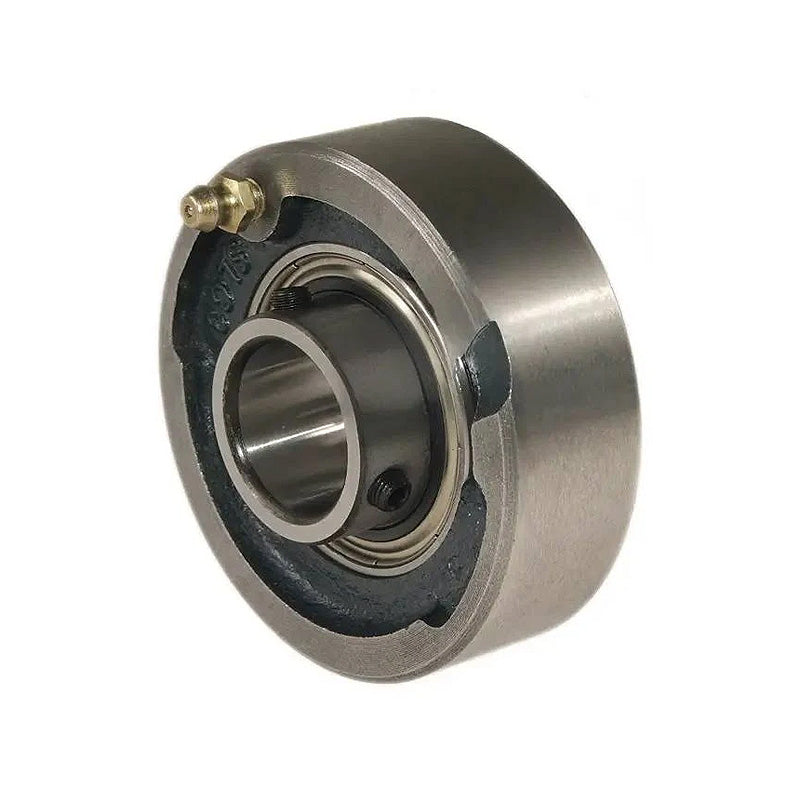

RHP SLC1-15/16 Cast Iron Cartridge Unit with 1-15/16 inch Bore Insert 115.91mm Outside Diameter

RHP SLC1-15/16 Cast Iron Cartridge Unit with 1-15/16 inch Bore Insert 115.91mm Outside Diameter
Regular price CHF 106.00 ex VAT
Regular price Sale price CHF 106.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 84.40
20+ CHF 79.66
30+ CHF 78.71
40+ CHF 77.76
50+ CHF 76.81
75+ CHF 75.87
100+ CHF 71.12
200+ CHF 70.18
250+ CHF 69.23
500+ CHF 68.28
1000+ CHF 66.38
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-15/16 inch
L 4.5635 inch
A 1.469 inch
A1 2.015 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.3 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-15/16G+insonly">1050-1-15/16G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
