SKU: SLC1.3/4-RHP

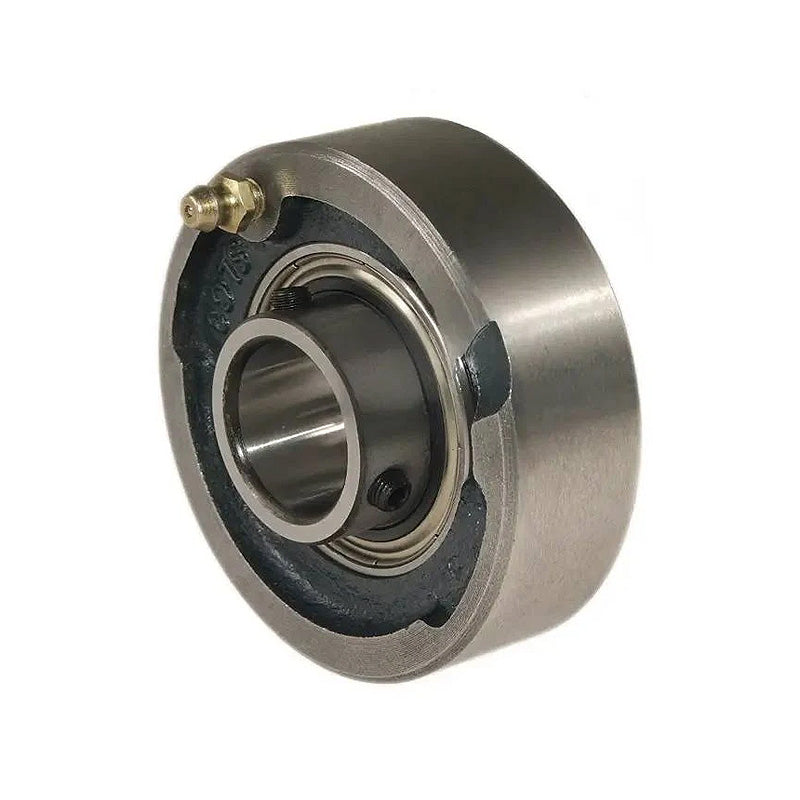

RHP SLC1-3/4 Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter

RHP SLC1-3/4 Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
Regular price CHF 90.00 ex VAT
Regular price Sale price CHF 90.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 71.66
20+ CHF 67.63
30+ CHF 66.83
40+ CHF 66.02
50+ CHF 65.22
75+ CHF 64.41
100+ CHF 60.39
200+ CHF 59.58
250+ CHF 58.78
500+ CHF 57.97
1000+ CHF 56.36
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/4 inch
L 4.376 inch
A 1.437 inch
A1 1.907 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.1 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-3/4G+insonly">1045-1-3/4G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
