SKU: SLC1.3/4DEC-RHP
RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
Regular price
CHF 103.81
ex VAT
Regular price
Sale price
CHF 103.81
ex VAT
In stock
Price Break
10+
CHF 92.39
19+
CHF 87.20
29+
CHF 86.16
39+
CHF 85.12
49+
CHF 84.09
74+
CHF 83.05
99+
CHF 77.86
199+
CHF 76.82
249+
CHF 75.78
499+
CHF 74.74
999+
CHF 72.67
Couldn't load pickup availability
Description
Description
|

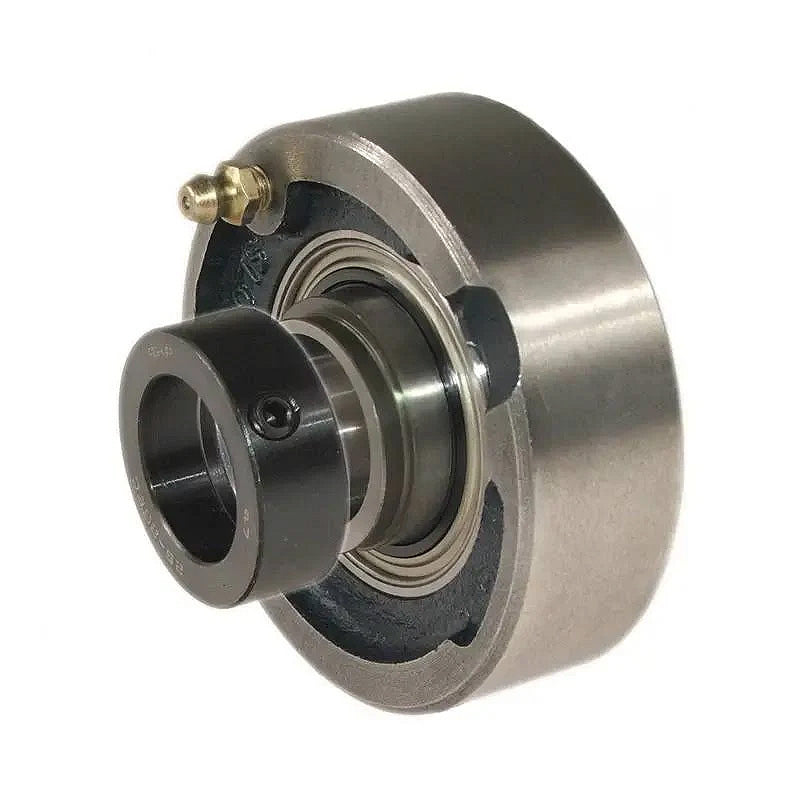

RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 111.15mm
- Style:
- SLC
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 4.376 inch |
| A | 1.437 inch |
| A3 | 2.093 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-3/4DECG+insonly">1045-1-3/4DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
