SKU: SLC1.7/16DEC-RHP
RHP SLC1-7/16DEC Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 98.45mm Outside Diameter
RHP SLC1-7/16DEC Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 98.45mm Outside Diameter
Regular price
CHF 78.42
ex VAT
Regular price
Sale price
CHF 78.42
ex VAT
In stock
Price Break
10+
CHF 69.79
19+
CHF 65.87
29+
CHF 65.09
39+
CHF 64.30
49+
CHF 63.52
74+
CHF 62.74
99+
CHF 58.82
199+
CHF 58.03
249+
CHF 57.25
499+
CHF 56.46
999+
CHF 54.89
Couldn't load pickup availability
Description
Description
|

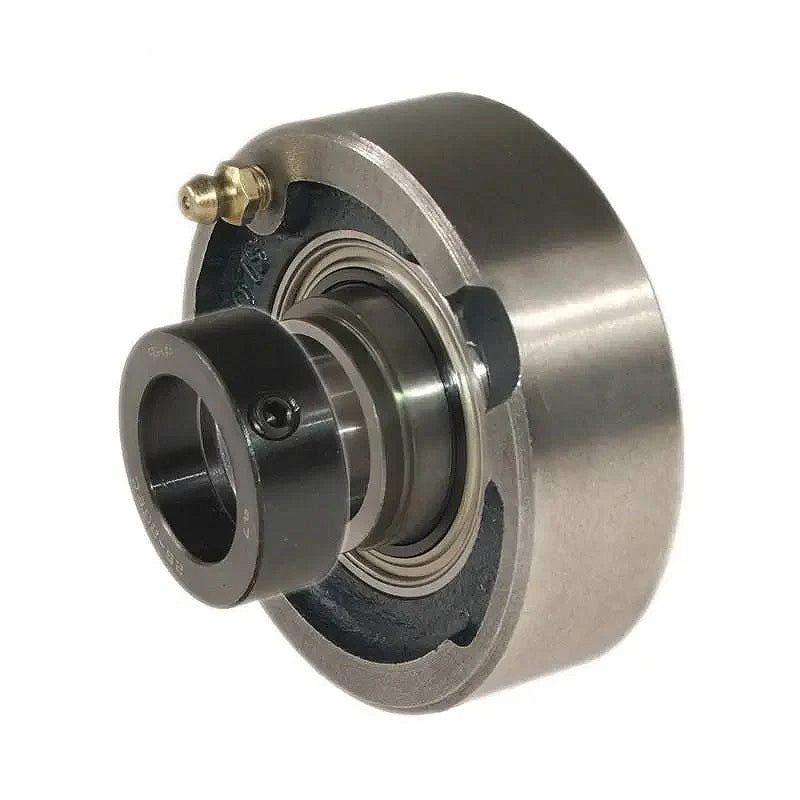

RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 98.45mm
- Style:
- SLC
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 3.876 inch |
| A | 1.219 inch |
| A3 | 1.881 inch |
| B3 | 2015 inch |
| s2 | 0.744 inch |
| d2 | 2.188 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-7/16DECG+insonly">1035-1-7/16DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
