SKU: SLC2DEC-RHP

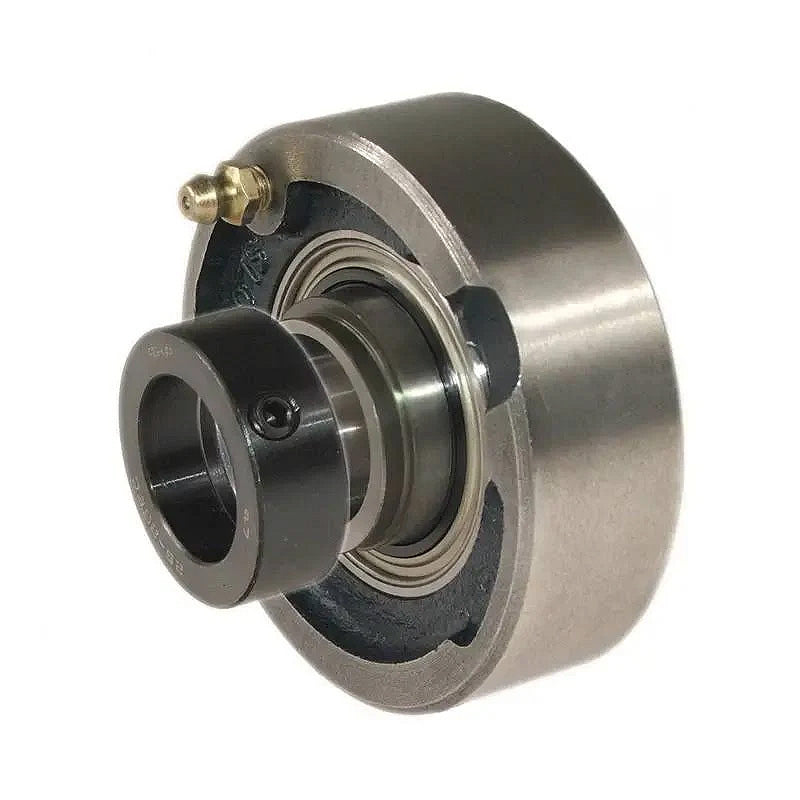

RHP SLC2DEC Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
RHP SLC2DEC Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
Regular price
CHF 169.15
ex VAT
Regular price
Sale price
CHF 169.15
ex VAT
In stock
Price Break
10+
CHF 150.54
19+
CHF 142.09
29+
CHF 140.39
39+
CHF 138.70
49+
CHF 137.01
74+
CHF 135.32
99+
CHF 126.86
199+
CHF 125.17
249+
CHF 123.48
499+
CHF 121.79
999+
CHF 118.41
Couldn't load pickup availability
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 125.44mm
- Style:
- SLC
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 4.9385 inch |
| A | 1.594 inch |
| A3 | 2.513 inch |
| B3 | 2.813 inch |
| s2 | 1.095 inch |
| d2 | 3 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 2.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
