SKU: SLC45EC-RHP

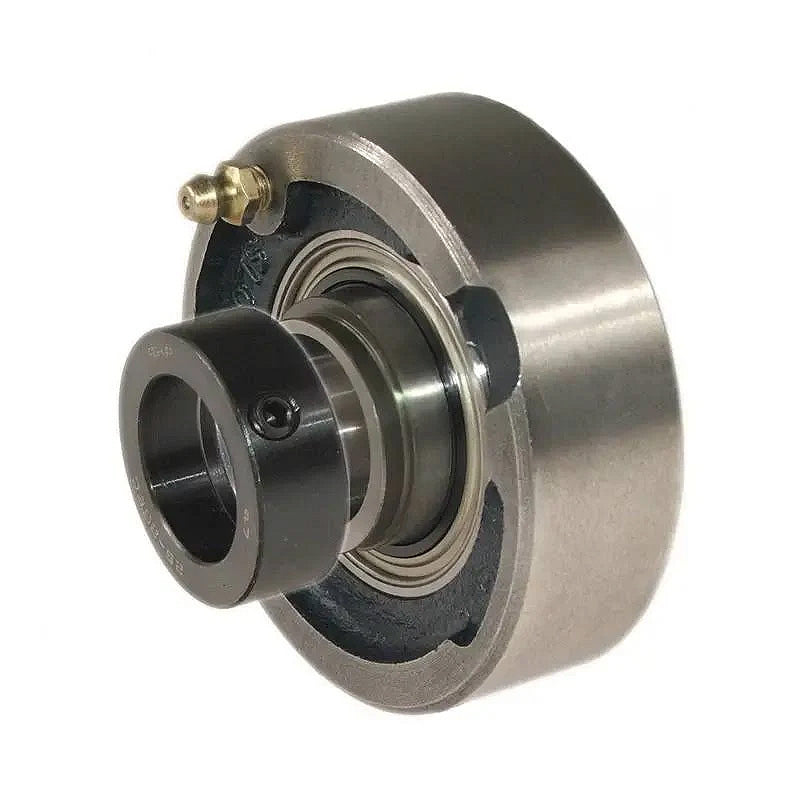

RHP SLC45EC Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
RHP SLC45EC Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
Regular price
CHF 89.32
ex VAT
Regular price
Sale price
CHF 89.32
ex VAT
In stock
Price Break
10+
CHF 79.49
19+
CHF 75.03
29+
CHF 74.14
39+
CHF 73.24
49+
CHF 72.35
74+
CHF 71.46
99+
CHF 66.99
199+
CHF 66.10
249+
CHF 65.20
499+
CHF 64.31
999+
CHF 62.52
Couldn't load pickup availability
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 111.15mm
- Style:
- SLC

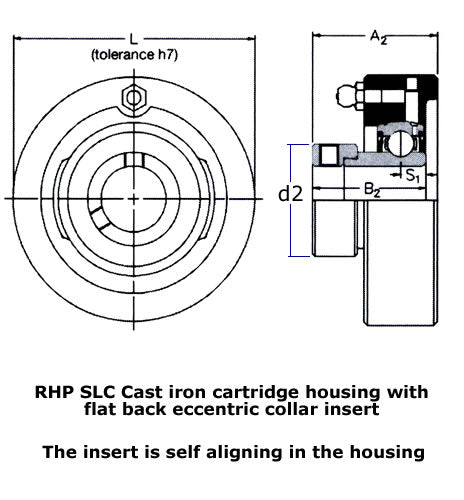

Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.15mm |
| A | 36.51mm |
| A2 | 50.88mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 63.5mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
