SKU: SLC50-RHP
RHP SLC50 Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
RHP SLC50 Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
Regular price
CHF 100.00
ex VAT
Regular price
Sale price
CHF 100.00
ex VAT
In stock
Price Break
10+
CHF 79.57
20+
CHF 75.10
30+
CHF 74.21
40+
CHF 73.32
50+
CHF 72.42
75+
CHF 71.53
100+
CHF 67.06
200+
CHF 66.16
250+
CHF 65.27
500+
CHF 64.37
1000+
CHF 62.59
Share this product
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 115.91mm
- Style:
- SLC
Technical
Technical

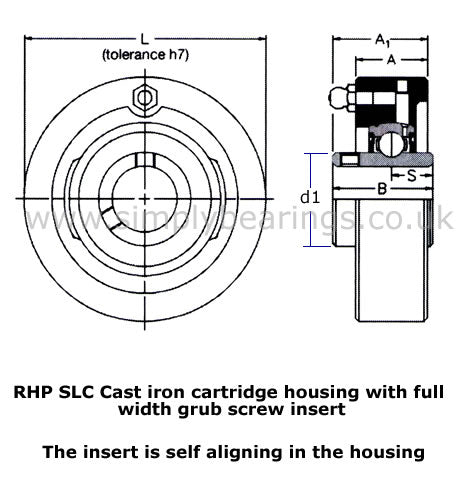

| Bore | 50mm |
|---|---|
| L | 115.913mm |
| A | 37.31mm |
| A1 | 51.18mm |
| B | 51.59mm |
| s | 19.1mm |
| d1 | 62.2mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
