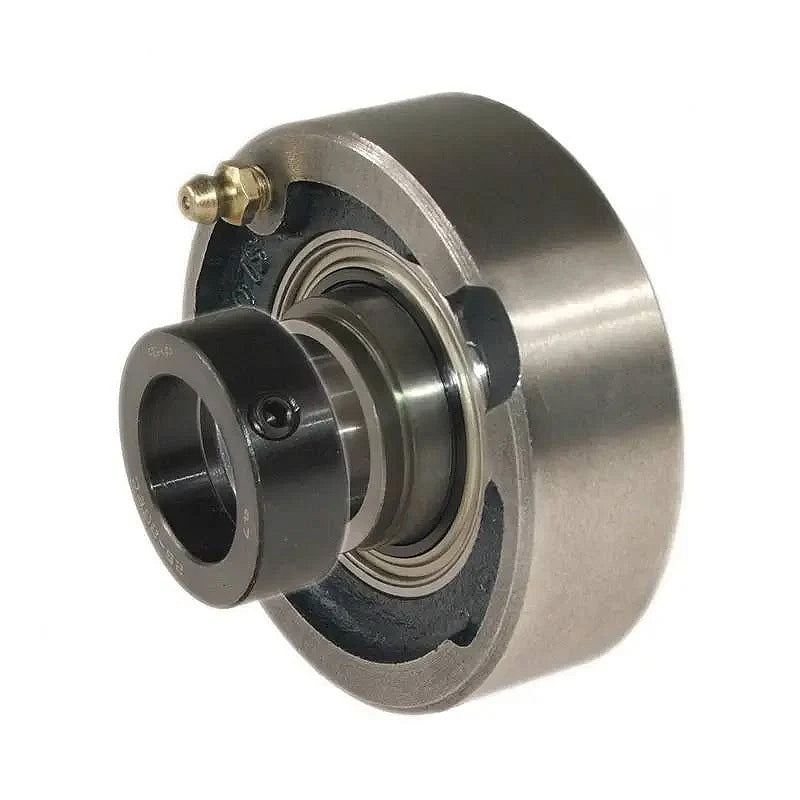

RHP SLC50EC Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
RHP SLC50EC Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
Regular price
CHF 106.46
ex VAT
Regular price
Sale price
CHF 106.46
ex VAT
In stock
Price Break
10+
CHF 94.75
19+
CHF 89.43
29+
CHF 88.36
39+
CHF 87.30
49+
CHF 86.23
74+
CHF 85.17
99+
CHF 79.85
199+
CHF 78.78
249+
CHF 77.72
499+
CHF 76.65
999+
CHF 74.52
Couldn't load pickup availability
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 115.91mm
- Style:
- SLC
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 115.913mm |
| A | 37.31mm |
| A2 | 51.28mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 69.85mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
