SKU: SLC55DEC-RHP

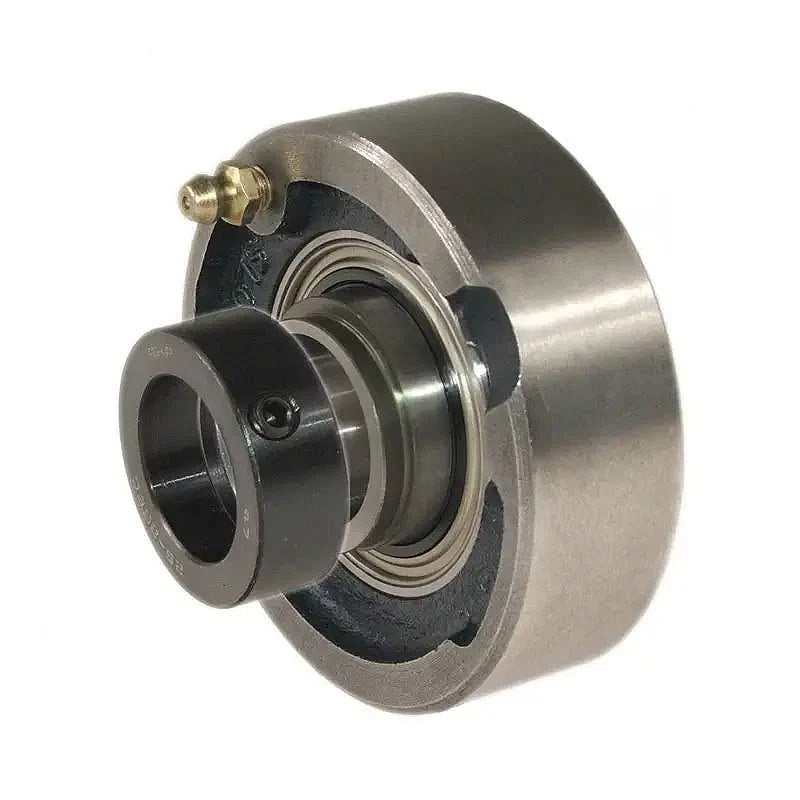

RHP SLC55DEC Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
RHP SLC55DEC Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
Regular price
CHF 159.41
ex VAT
Regular price
Sale price
CHF 159.41
ex VAT
In stock
Price Break
10+
CHF 141.87
19+
CHF 133.90
29+
CHF 132.31
39+
CHF 130.72
49+
CHF 129.12
74+
CHF 127.53
99+
CHF 119.56
199+
CHF 117.96
249+
CHF 116.37
499+
CHF 114.78
999+
CHF 111.59
Couldn't load pickup availability
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 125.44mm
- Style:
- SLC
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 125.437mm |
| A | 40.48mm |
| A3 | 63.83mm |
| B3 | 71.44mm |
| s2 | 27.82mm |
| d2 | 76.2mm |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 2.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55DECG+insonly">1055-55DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
