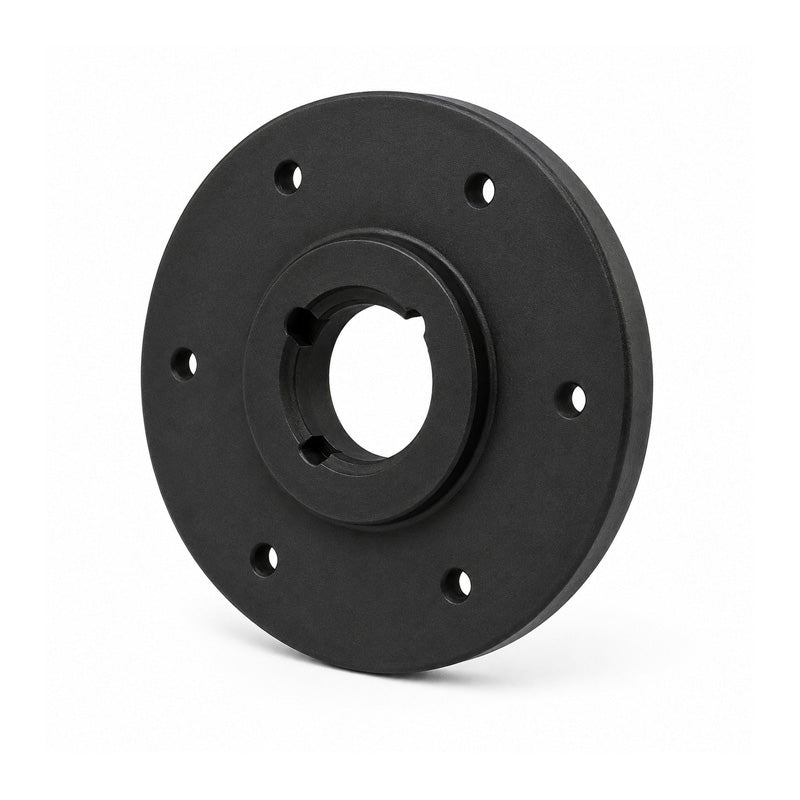

SKF SM20 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF SM20 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
CHF 63.88
ex VAT
Regular price
Sale price
CHF 63.88
ex VAT
In stock
Price Break
10+
CHF 56.85
19+
CHF 53.66
29+
CHF 53.02
39+
CHF 52.38
49+
CHF 51.74
74+
CHF 51.10
99+
CHF 47.91
199+
CHF 47.27
249+
CHF 46.63
499+
CHF 45.99
999+
CHF 44.72
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 2012
- Outside Diameter:
- 270mm
- Width:
- 32mm
Technical
Technical
| Hub Reference | SM20 |
|---|---|
| Bush Number | 2012 |
| A | 270mm |
| B | 140mm |
| C | 190mm |
| D | 32mm |
| E | 8.5mm |
| F/G | 100mm |
| H | 11.75mm |
| J | 6x9.5mm |
