SKU: SM25-SKF

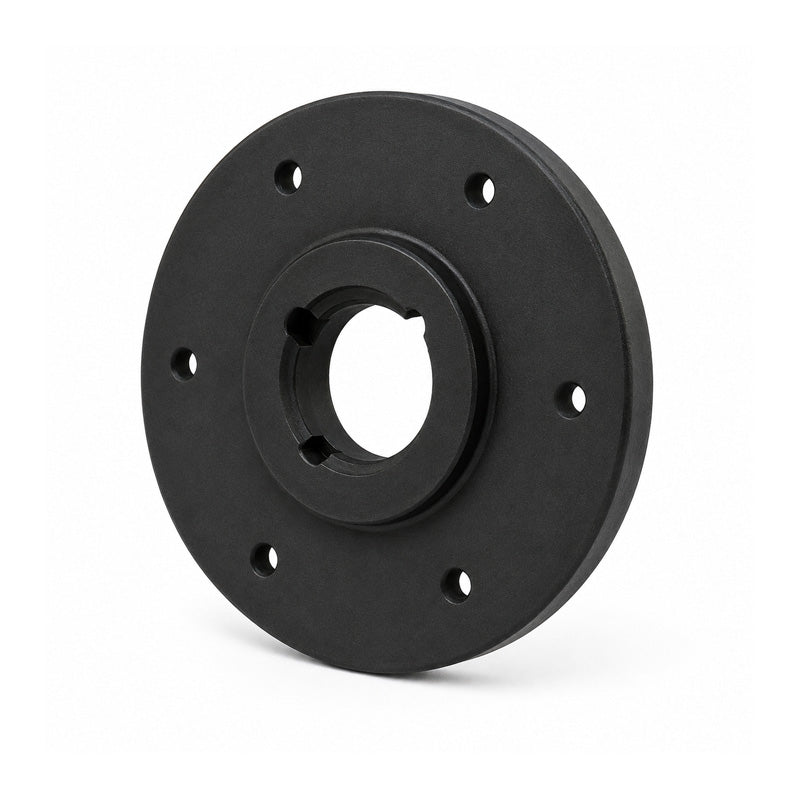

SKF SM25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF SM25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
CHF 107.89
ex VAT
Regular price
Sale price
CHF 107.89
ex VAT
In stock
Price Break
10+
CHF 96.02
19+
CHF 90.63
29+
CHF 89.55
39+
CHF 88.47
49+
CHF 87.39
74+
CHF 86.31
99+
CHF 80.92
199+
CHF 79.84
249+
CHF 78.76
499+
CHF 77.68
999+
CHF 75.52
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 2517
- Outside Diameter:
- 340mm
- Width:
- 45mm
Technical
Technical
| Hub Reference | SM25 |
|---|---|
| Bush Number | 2517 |
| A | 340mm |
| B | 170mm |
| C | 240mm |
| D | 45mm |
| E | 9.5mm |
| F/G | 119mm |
| H | 17.75mm |
| J | 8 x 11.5mm |
