SKU: SM30-1-SKF

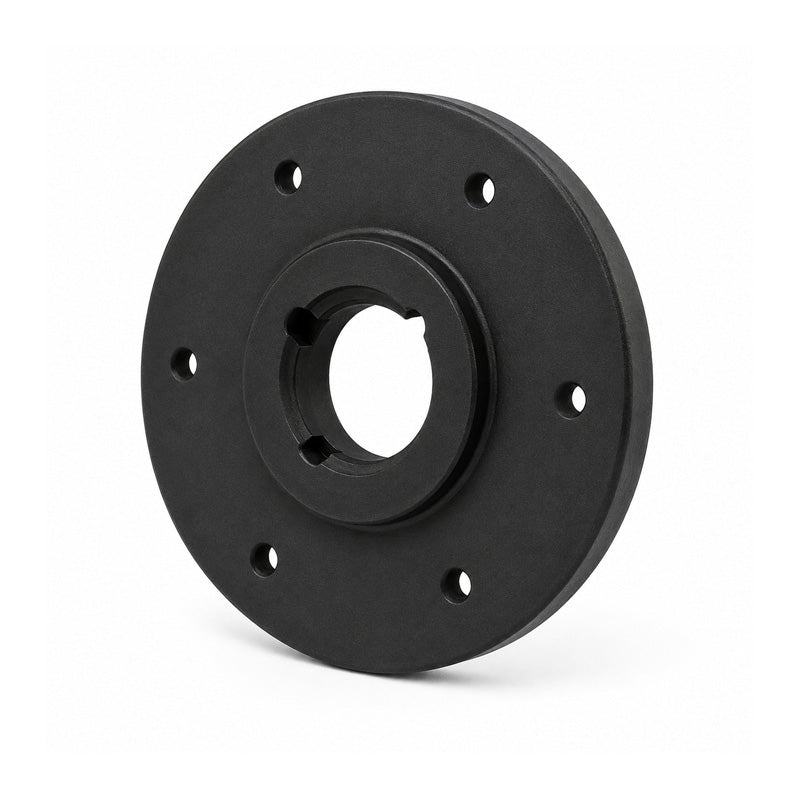

SKF SM30-1 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF SM30-1 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
CHF 174.15
ex VAT
Regular price
Sale price
CHF 174.15
ex VAT
In stock
Price Break
10+
CHF 154.99
19+
CHF 146.29
29+
CHF 144.54
39+
CHF 142.80
49+
CHF 141.06
74+
CHF 139.32
99+
CHF 130.61
199+
CHF 128.87
249+
CHF 127.13
499+
CHF 125.39
999+
CHF 121.91
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 430mm
- Width:
- 51mm
Technical
Technical
| Hub Reference | SM30-1 |
|---|---|
| Bush Number | 3020 |
| A | 430mm |
| B | 220mm |
| C | 300mm |
| D | 51mm |
| E | 13.5mm |
| F/G | 147mm |
| H | 18.75mm |
| J | 8 x 13.5mm |
