SKU: SNL520-617K7-SKF

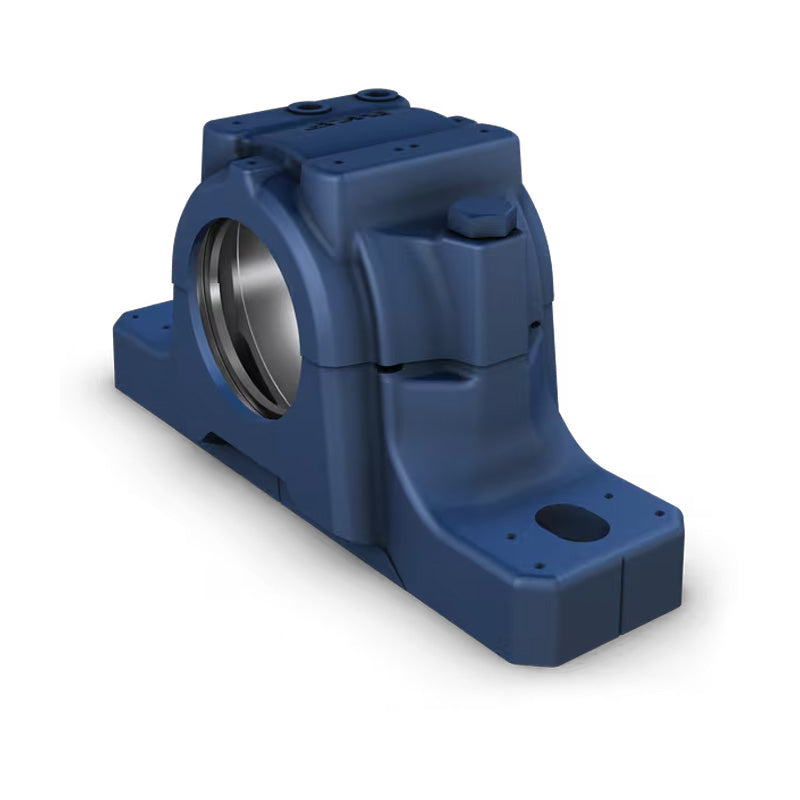

SKF SNL520-617K7 Cast Iron Split Pillow Block Housing for High Speeds or Vibration
SKF SNL520-617K7 Cast Iron Split Pillow Block Housing for High Speeds or Vibration
Regular price
CHF 365.69
ex VAT
Regular price
Sale price
CHF 365.69
ex VAT
Equivalent to: SE520-617K7
In stock
Price Break
10+
CHF 325.46
19+
CHF 307.18
29+
CHF 303.52
39+
CHF 299.87
49+
CHF 296.21
74+
CHF 292.55
99+
CHF 274.27
199+
CHF 270.61
249+
CHF 266.95
499+
CHF 263.30
999+
CHF 255.98
Couldn't load pickup availability
Description
Description
|
SKF SNL Split Plummer Block Housings: These plummer block housings enable the full service life capability of the incorporated bearings to be used with less need for maintenance. This supports efforts of the user to further reduce maintenance costs. As the housings are very stiff, they are insensitive to uncontrolled and excessive tightening of the attachment bolts. These housings are made of grey cast iron and feature two attachment bolts. Benefits: A wide range of different seal types available, easy installation. |
Equivalent: SE520-617K7
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 320.68mm = 12.625 (12-5/8) inch
Technical
Technical
| da | 75mm |
|---|---|
| A | 6-5/16 inch = 160mm |
| A1 | 4-5/16 inch = 110mm |
| A2 | 7 inch = 178mm |
| A3 | 9-1/4 inch = 235mm |
| H | 8-9/16 inch = 218mm |
| H1 | 4.409 inch = 112mm |
| H2 | 1-9/16 inch = 40mm |
| J max | 12-13/16 inch = 326mm |
| J min | 12-3/8 inch = 314mm |
| J | 12-5/8 inch = 320mm |
| L | 15 inch = 380mm |
| N | 1-1/4 inch = 32mm |
| N1 | 1 inch = 26mm |
| G | 7/8 inch = 24mm |
| Weight | 17.6 kg |
