SKU: SNLN3024-SKF

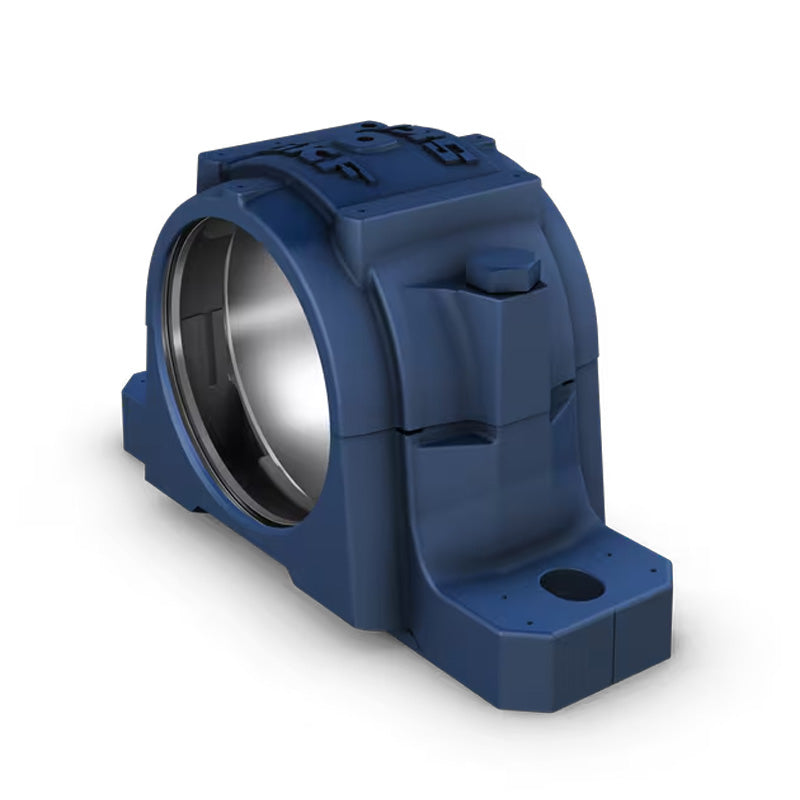

SKF SNLN3024 Cast Iron Split Pillow Block Housing
SKF SNLN3024 Cast Iron Split Pillow Block Housing
Regular price
CHF 547.00
ex VAT
Regular price
Sale price
CHF 547.00
ex VAT
In stock
Price Break
4+
CHF 435.57
9+
CHF 411.10
19+
CHF 406.21
29+
CHF 401.31
39+
CHF 396.42
49+
CHF 391.52
59+
CHF 367.05
69+
CHF 362.16
79+
CHF 357.27
89+
CHF 352.37
99+
CHF 342.58
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 320mm
Technical
Technical
| da | 110mm |
|---|---|
| Ca | 70mm |
| Da | 180mm |
| A | 160mm |
| A1 | 110mm |
| H | 218mm |
| H1 | 112mm |
| H2 | 40mm |
| J | 320mm |
| L | 380mm |
| N | 32mm |
| N1 | 26mm |
| J6 | 348mm |
| J7 | 39mm |
| N4 max | 8mm |
| ba | 48mm |
| bc | 70mm |
