SKU: SNLN3030-SKF

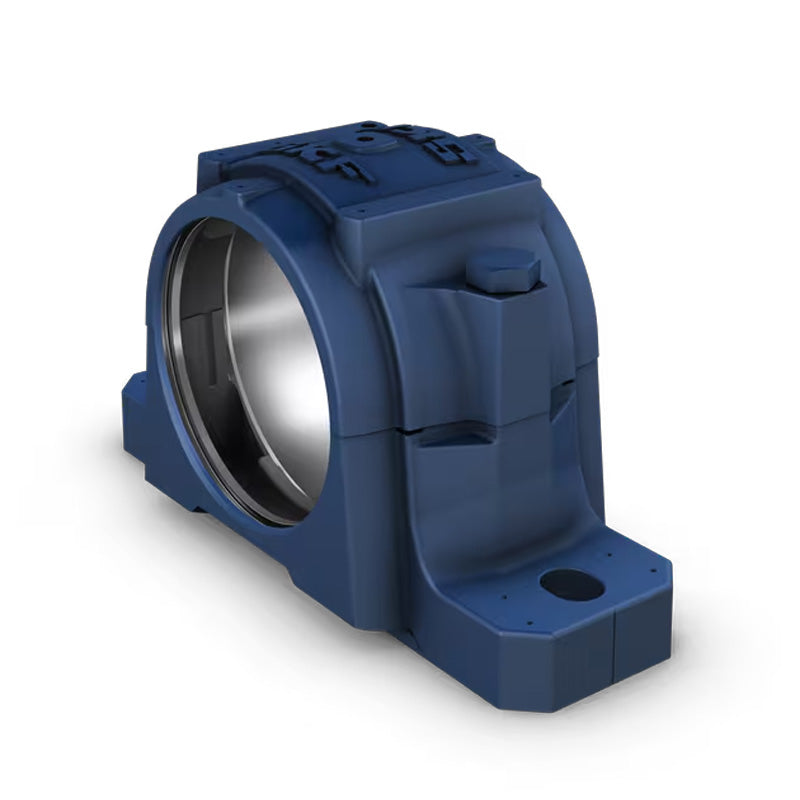

SKF SNLN3030 Cast Iron Split Pillow Block Housing
SKF SNLN3030 Cast Iron Split Pillow Block Housing
Regular price
CHF 792.00
ex VAT
Regular price
Sale price
CHF 792.00
ex VAT
In stock
Price Break
4+
CHF 631.18
9+
CHF 595.72
19+
CHF 588.63
29+
CHF 581.54
39+
CHF 574.44
49+
CHF 567.35
59+
CHF 531.89
69+
CHF 524.80
79+
CHF 517.71
89+
CHF 510.62
99+
CHF 496.43
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 380mm
Technical
Technical
| da | 135mm |
|---|---|
| Ca | 86mm |
| Da | 225mm |
| A | 190mm |
| A1 | 130mm |
| H | 290mm |
| H1 | 150mm |
| H2 | 50mm |
| J | 380mm |
| L | 445mm |
| N | 35mm |
| N1 | 28mm |
| J6 | 414mm |
| J7 | 46mm |
| N4 max | 12mm |
| ba | 57mm |
| bc | 82mm |
