SKU: SNLN3032-SKF

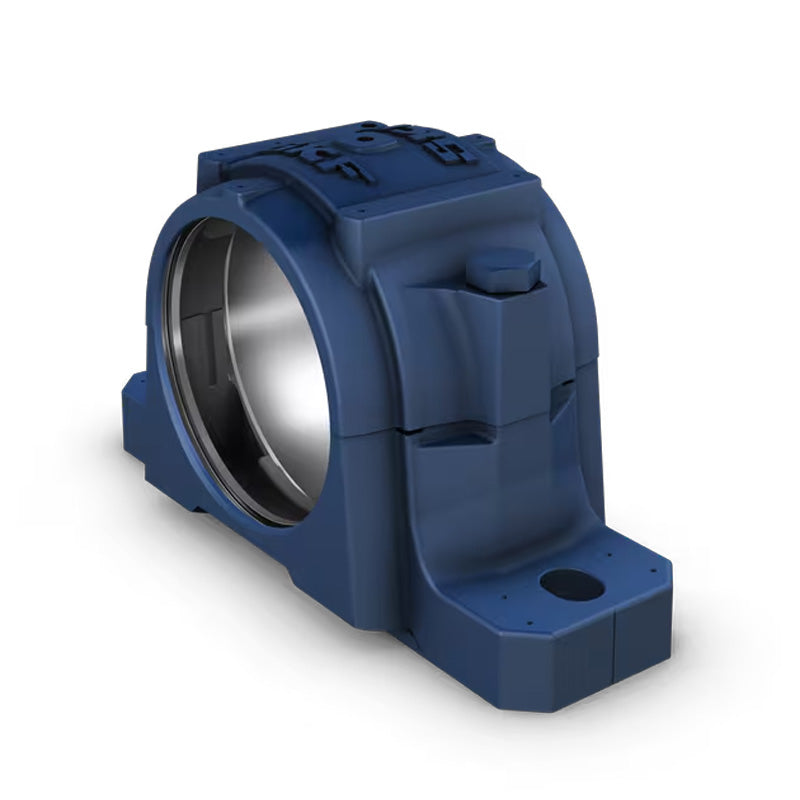

SKF SNLN3032 Cast Iron Split Pillow Block Housing
SKF SNLN3032 Cast Iron Split Pillow Block Housing
Regular price
CHF 836.00
ex VAT
Regular price
Sale price
CHF 836.00
ex VAT
In stock
Price Break
4+
CHF 666.41
9+
CHF 628.97
19+
CHF 621.48
29+
CHF 613.99
39+
CHF 606.50
49+
CHF 599.02
59+
CHF 561.58
69+
CHF 554.09
79+
CHF 546.60
89+
CHF 539.11
99+
CHF 524.14
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 390mm
Technical
Technical
| da | 140mm |
|---|---|
| Ca | 90mm |
| Da | 240mm |
| A | 190mm |
| A1 | 130mm |
| H | 297mm |
| H1 | 150mm |
| H2 | 50mm |
| J | 390mm |
| L | 460mm |
| N | 35mm |
| N1 | 28mm |
| J6 | 424mm |
| J7 | 46mm |
| N4 max | 12mm |
| ba | 60mm |
| bc | 82mm |
