SKU: SNP1.1/2-RHP

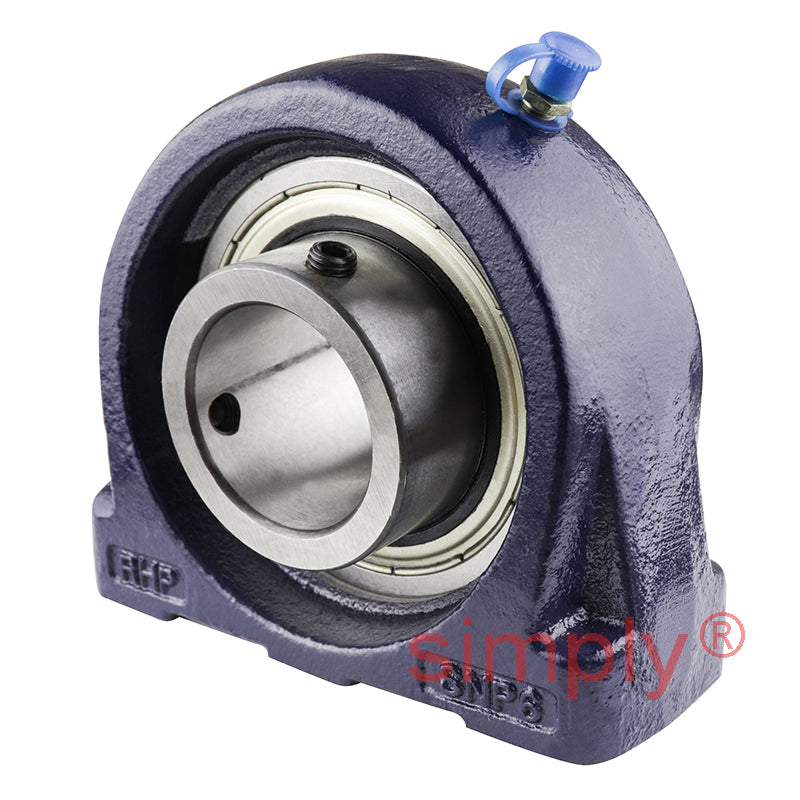

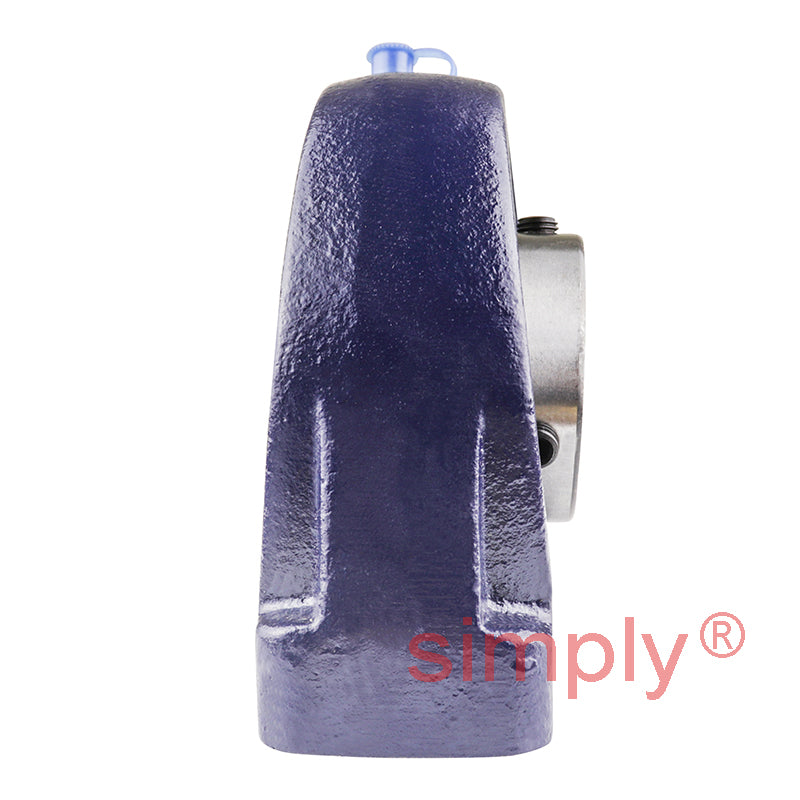

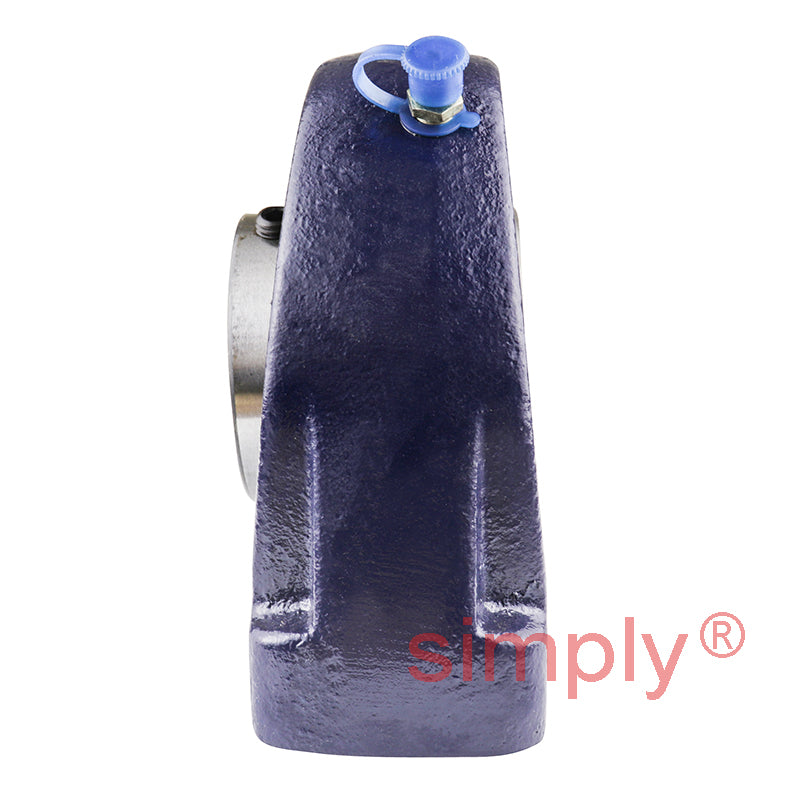

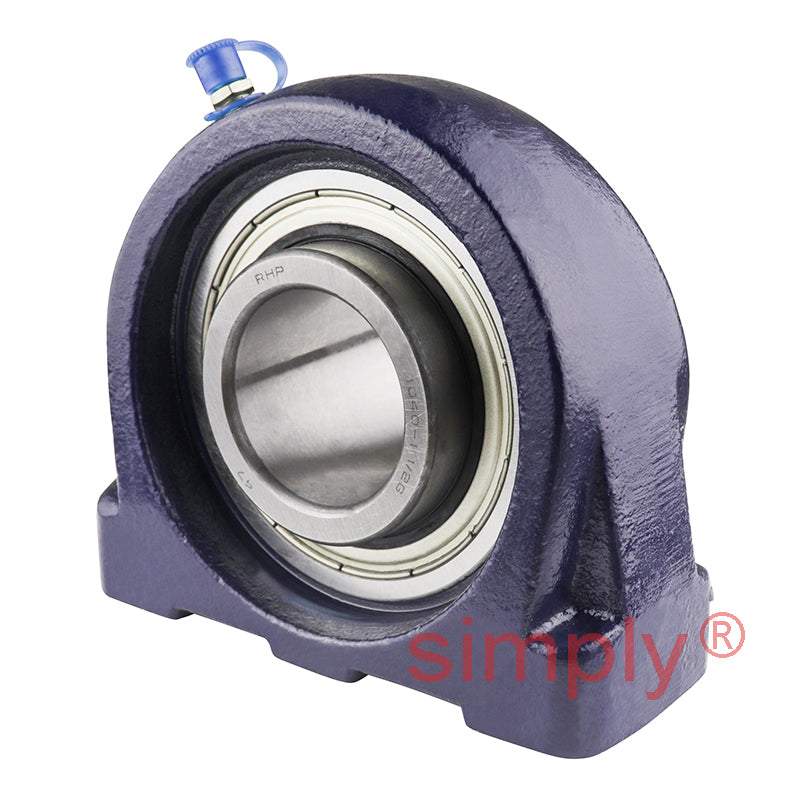

RHP SNP1-1/2 Threaded Base Small Footprint Pillow / Plummer Block and 1-1/2 inch Bore Grub Screw Full Width Insert
RHP SNP1-1/2 Threaded Base Small Footprint Pillow / Plummer Block and 1-1/2 inch Bore Grub Screw Full Width Insert
Regular price
CHF 85.46
ex VAT
Regular price
Sale price
CHF 85.46
ex VAT
In stock
Price Break
10+
CHF 76.06
19+
CHF 71.79
29+
CHF 70.93
39+
CHF 70.08
49+
CHF 69.22
74+
CHF 68.37
99+
CHF 64.10
199+
CHF 63.24
249+
CHF 62.39
499+
CHF 61.53
999+
CHF 59.82
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SNP
- Bolt Hole Centres:
- 88.9mm = 3.5 (3-1/2) inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 4.646 inch |
| H | 1.937 inch |
| H1 | 0.768 inch |
| H2 | 4.004 inch |
| J | 3.5 inch |
| Threads | 1/2-13 UNC |
| A | 1.85 inch |
| A1 | 1.26 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
