SKU: SNP1.11/16-RHP

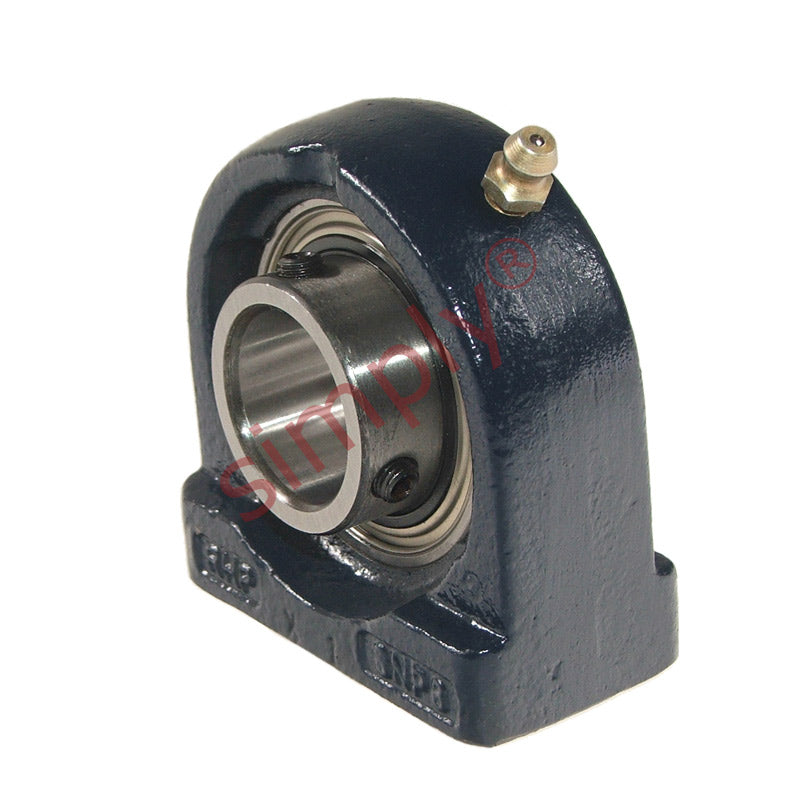

RHP SNP1-11/16 Threaded Base Small Footprint Pillow / Plummer Block and 1-11/16 inch Bore Grub Screw Full Width Insert
RHP SNP1-11/16 Threaded Base Small Footprint Pillow / Plummer Block and 1-11/16 inch Bore Grub Screw Full Width Insert
Regular price
CHF 96.00
ex VAT
Regular price
Sale price
CHF 96.00
ex VAT
In stock
Price Break
10+
CHF 76.15
20+
CHF 71.87
30+
CHF 71.02
40+
CHF 70.16
50+
CHF 69.31
75+
CHF 68.45
100+
CHF 64.17
200+
CHF 63.32
250+
CHF 62.46
500+
CHF 61.61
1000+
CHF 59.89
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- SNP
- Bolt Hole Centres:
- 95.3mm = 3.752 inch
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 5 inch |
| H | 2.126 inch |
| H1 | 0.768 inch |
| H2 | 4.331 inch |
| J | 3.752 inch |
| Threads | 1/2-13 UNC |
| A | 1.89 inch |
| A1 | 1.299 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-11/16G+insonly">1045-1-11/16G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
