SKU: SNP1.3/4-RHP

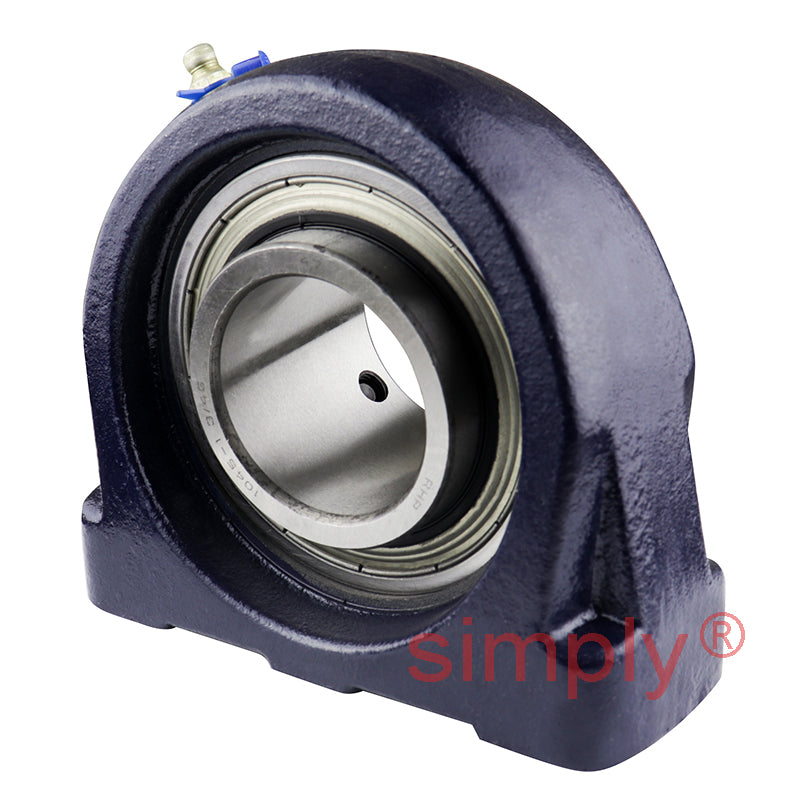

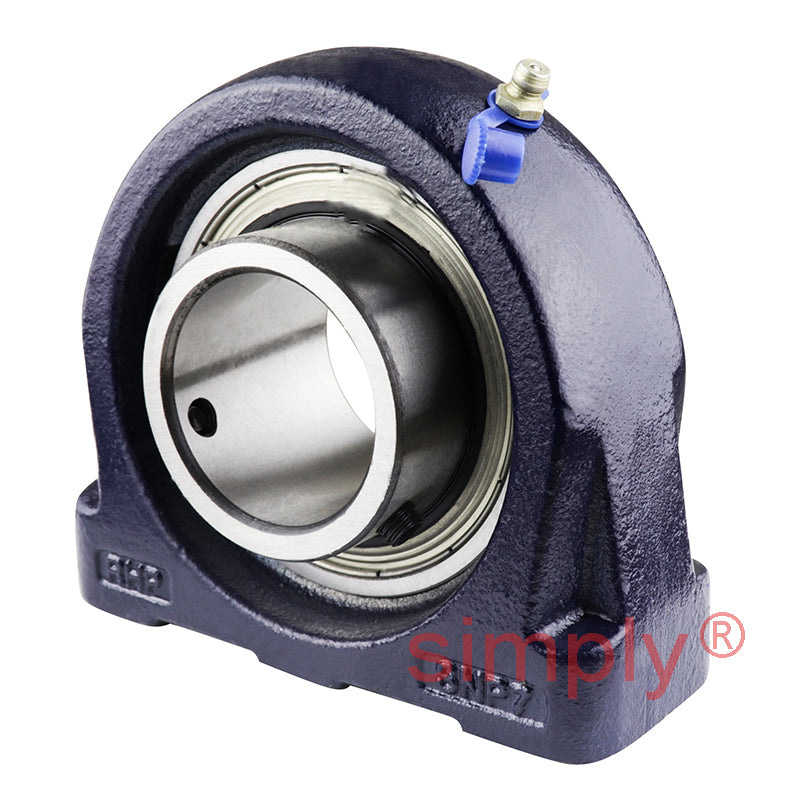

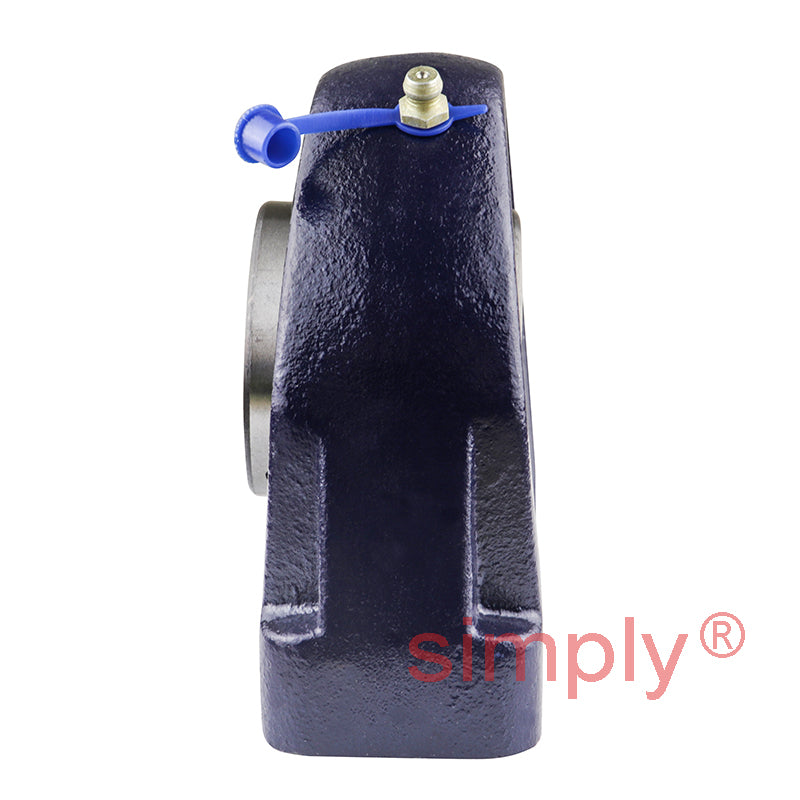

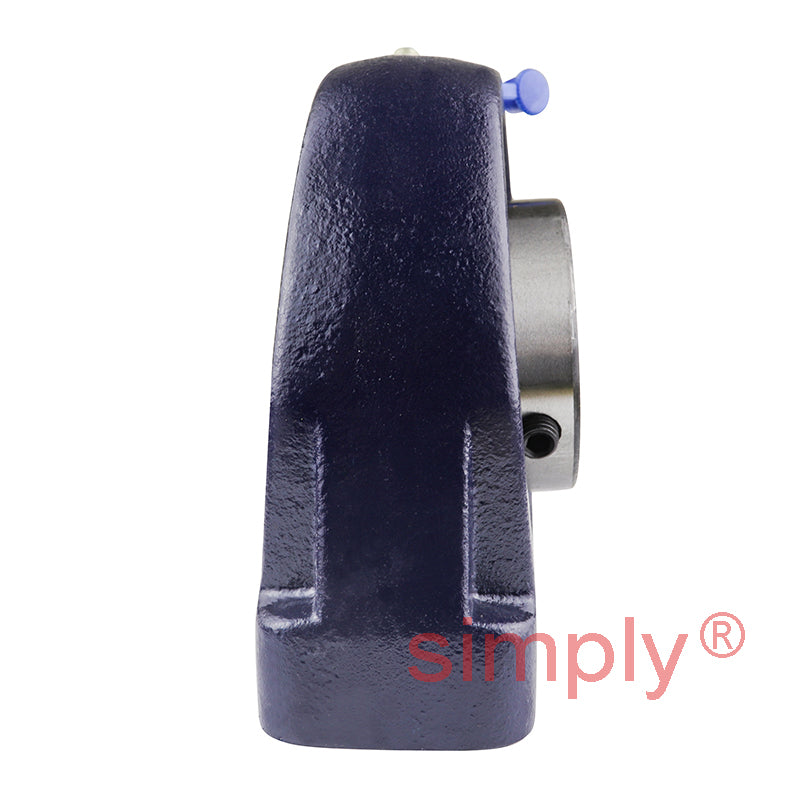

RHP SNP1-3/4 Threaded Base Small Footprint Pillow / Plummer Block and 1-3/4 inch Bore Grub Screw Full Width Insert
RHP SNP1-3/4 Threaded Base Small Footprint Pillow / Plummer Block and 1-3/4 inch Bore Grub Screw Full Width Insert
Regular price
CHF 95.98
ex VAT
Regular price
Sale price
CHF 95.98
ex VAT
In stock
Price Break
10+
CHF 85.42
19+
CHF 80.62
29+
CHF 79.66
39+
CHF 78.70
49+
CHF 77.74
74+
CHF 76.78
99+
CHF 71.99
199+
CHF 71.03
249+
CHF 70.07
499+
CHF 69.11
999+
CHF 67.19
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- SNP
- Bolt Hole Centres:
- 95.3mm = 3.752 inch
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 5 inch |
| H | 2.126 inch |
| H1 | 0.768 inch |
| H2 | 4.331 inch |
| J | 3.752 inch |
| Threads | 1/2-13 UNC |
| A | 1.89 inch |
| A1 | 1.299 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-3/4G+insonly">1045-1-3/4G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
