SKU: SNP1.3/8-RHP

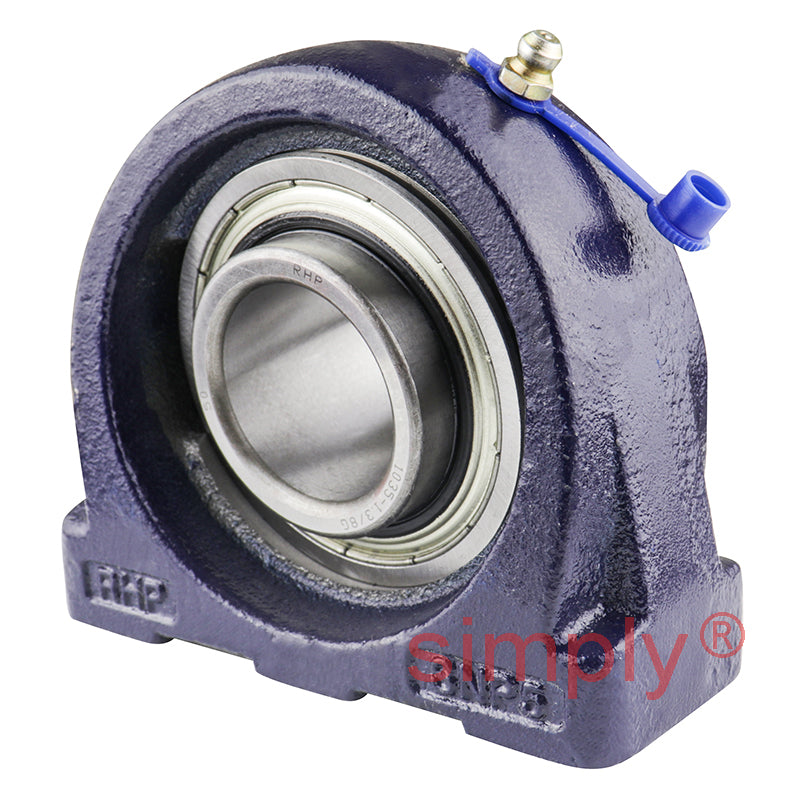

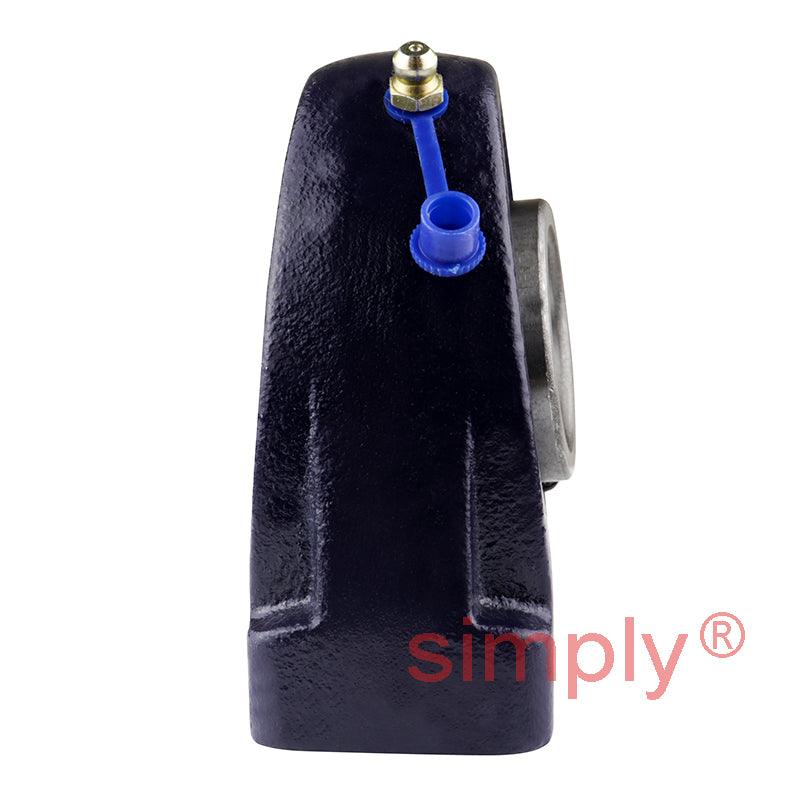

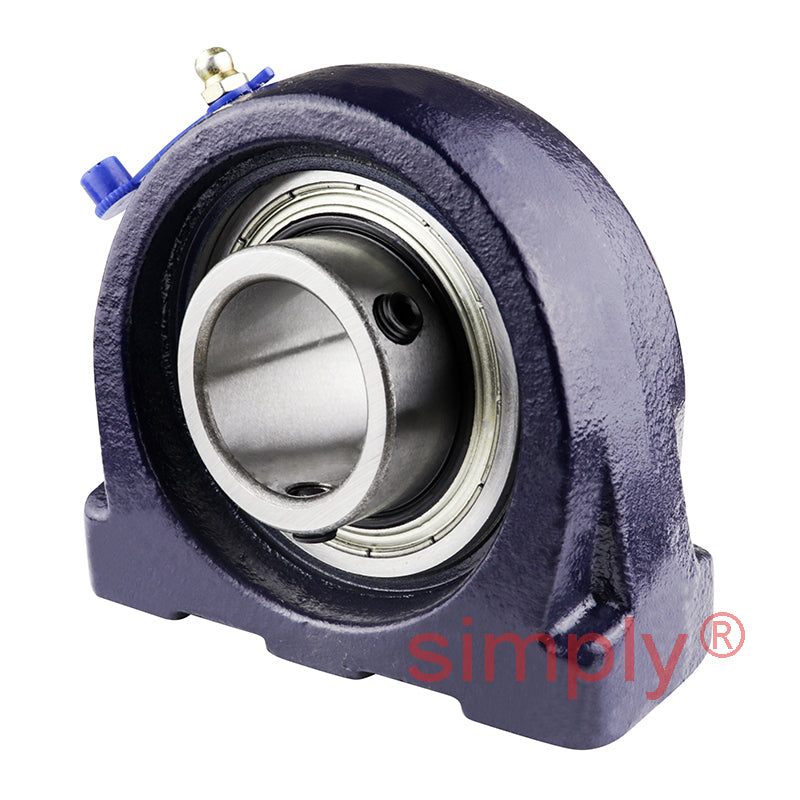

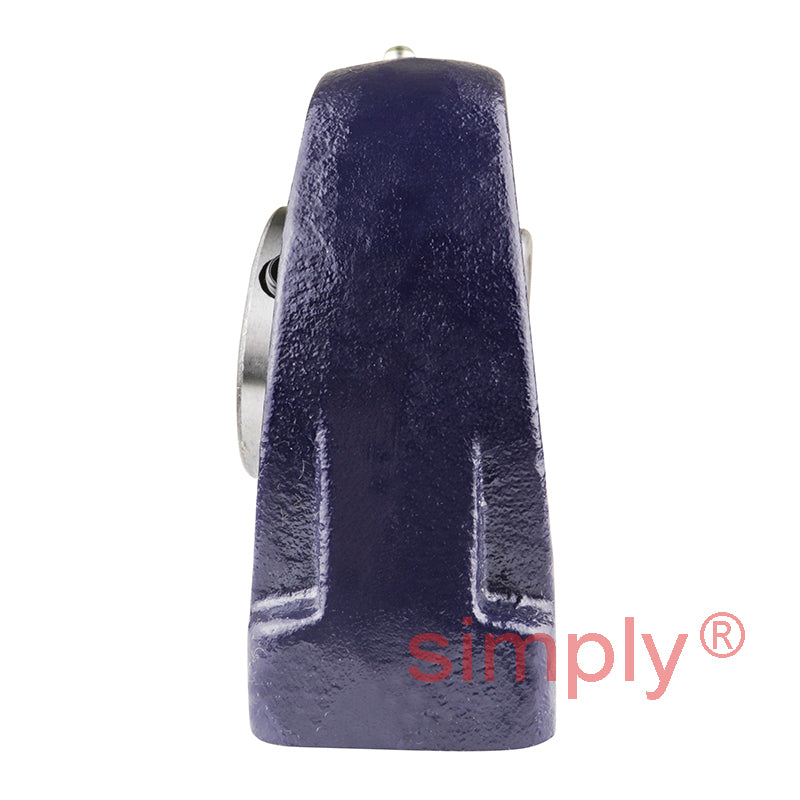

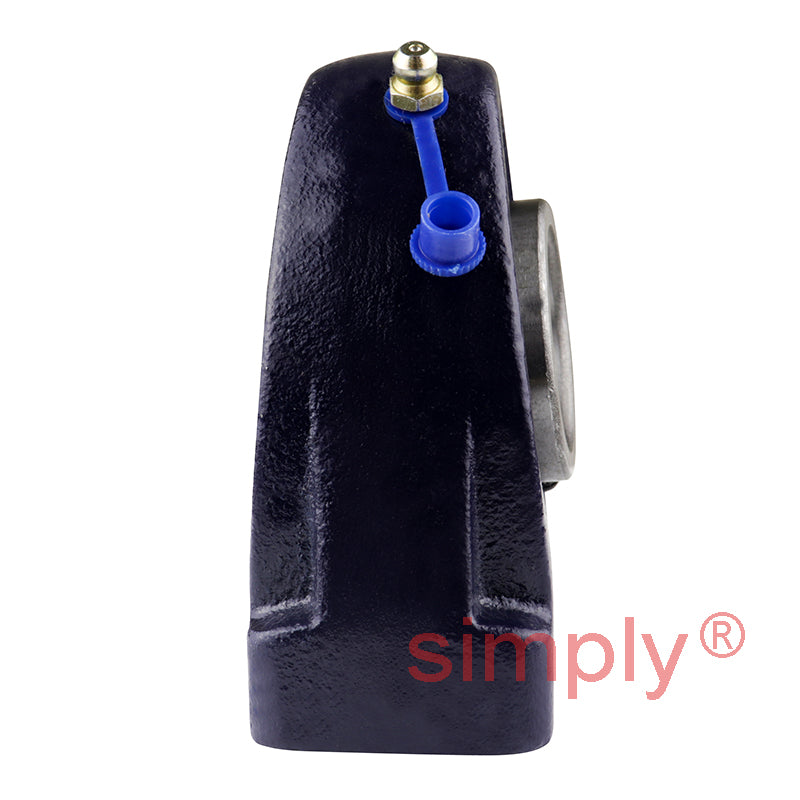

RHP SNP1-3/8 Threaded Base Small Footprint Pillow / Plummer Block and 1-3/8 inch Bore Grub Screw Full Width Insert
RHP SNP1-3/8 Threaded Base Small Footprint Pillow / Plummer Block and 1-3/8 inch Bore Grub Screw Full Width Insert
Regular price
CHF 73.16
ex VAT
Regular price
Sale price
CHF 73.16
ex VAT
In stock
Price Break
10+
CHF 65.11
19+
CHF 61.45
29+
CHF 60.72
39+
CHF 59.99
49+
CHF 59.26
74+
CHF 58.53
99+
CHF 54.87
199+
CHF 54.14
249+
CHF 53.41
499+
CHF 52.68
999+
CHF 51.21
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SNP
- Bolt Hole Centres:
- 82.6mm = 3.252 inch
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 4.331 inch |
| H | 1.874 inch |
| H1 | 0.768 inch |
| H2 | 3.764 inch |
| J | 3.252 inch |
| Threads | 1/2-13 UNC |
| A | 1.772 inch |
| A1 | 1.181 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 2.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/8G+insonly">1035-1-3/8G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
