SKU: SNP1.3/8EC-RHP

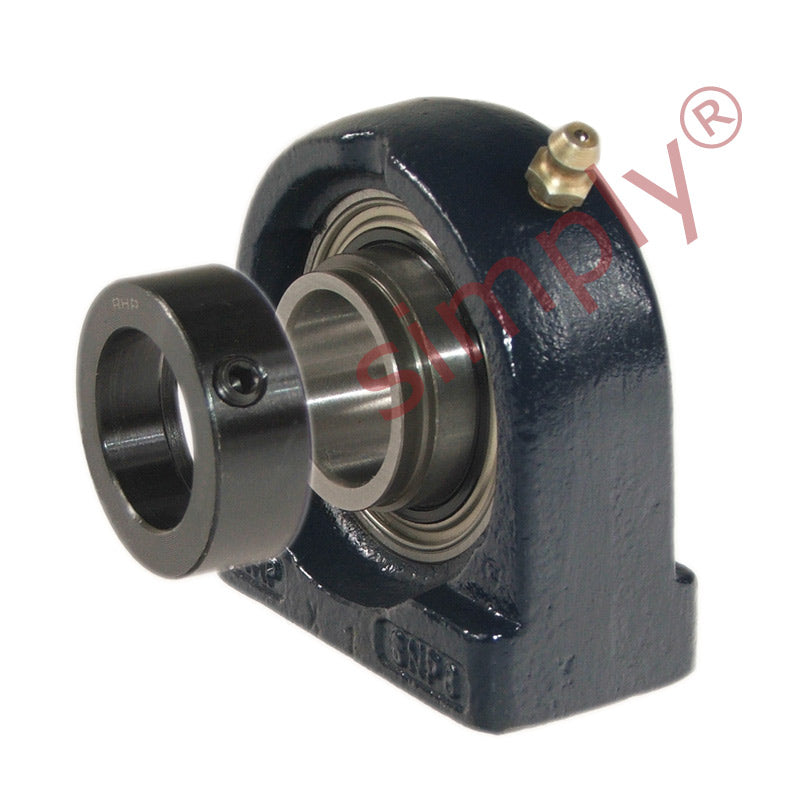

RHP SNP1-3/8EC Threaded Base Small Footprint Pillow / Plummer Block and 1-3/8 inch Bore Flat Back Collar Insert
RHP SNP1-3/8EC Threaded Base Small Footprint Pillow / Plummer Block and 1-3/8 inch Bore Flat Back Collar Insert
Regular price
CHF 76.42
ex VAT
Regular price
Sale price
CHF 76.42
ex VAT
In stock
Price Break
10+
CHF 68.01
19+
CHF 64.19
29+
CHF 63.43
39+
CHF 62.66
49+
CHF 61.90
74+
CHF 61.14
99+
CHF 57.32
199+
CHF 56.55
249+
CHF 55.79
499+
CHF 55.02
999+
CHF 53.49
Couldn't load pickup availability
Description
Description
|
RHP SNP EC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SNP
- Bolt Hole Centres:
- 82.6mm = 3.252 inch
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 4.331 inch |
| H | 1.874 inch |
| H1 | 0.768 inch |
| H2 | 3.764 inch |
| J | 3.252 inch |
| Threads | 1/2-13 UNC |
| A | 1.772 inch |
| A1 | 1.181 inch |
| B2 | 1.531 inch |
| s1 | 0.376 inch |
| d2 | 2.188 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 2.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-1-3/8ECG+insonly">1235-1-3/8ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
