SKU: SNP1-RHP

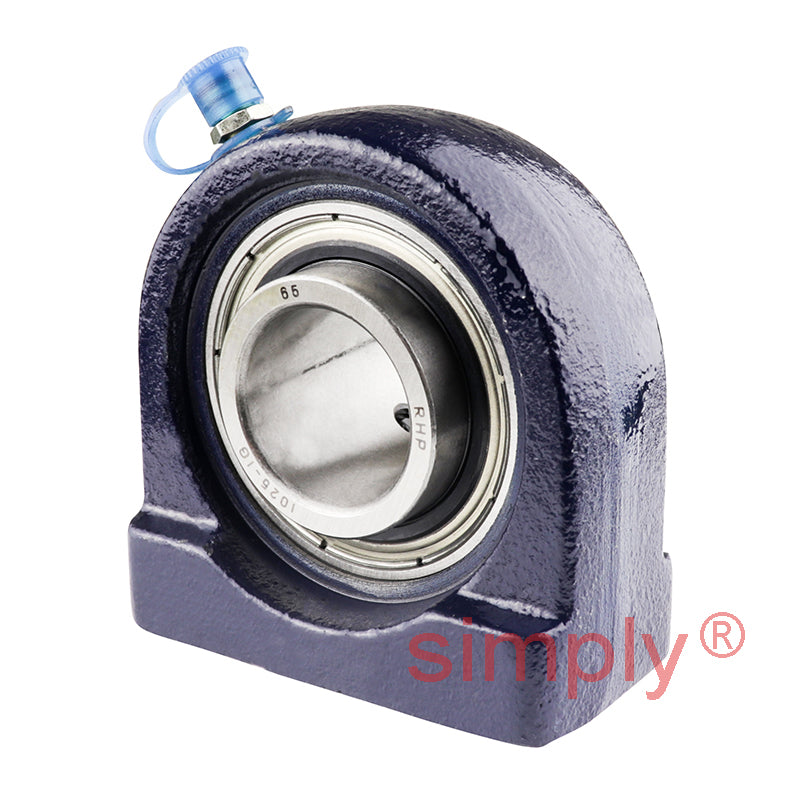

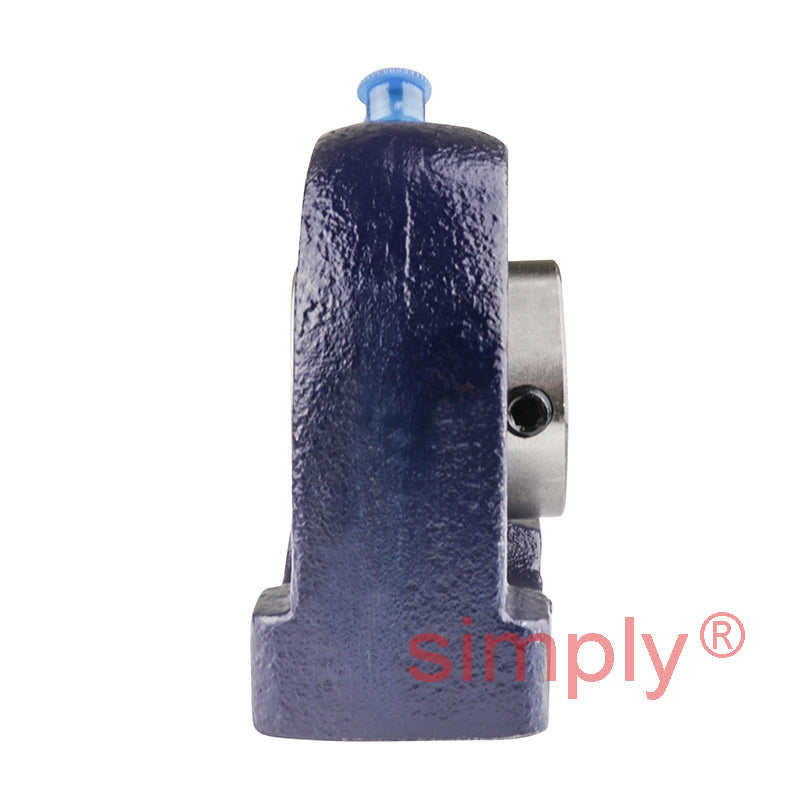

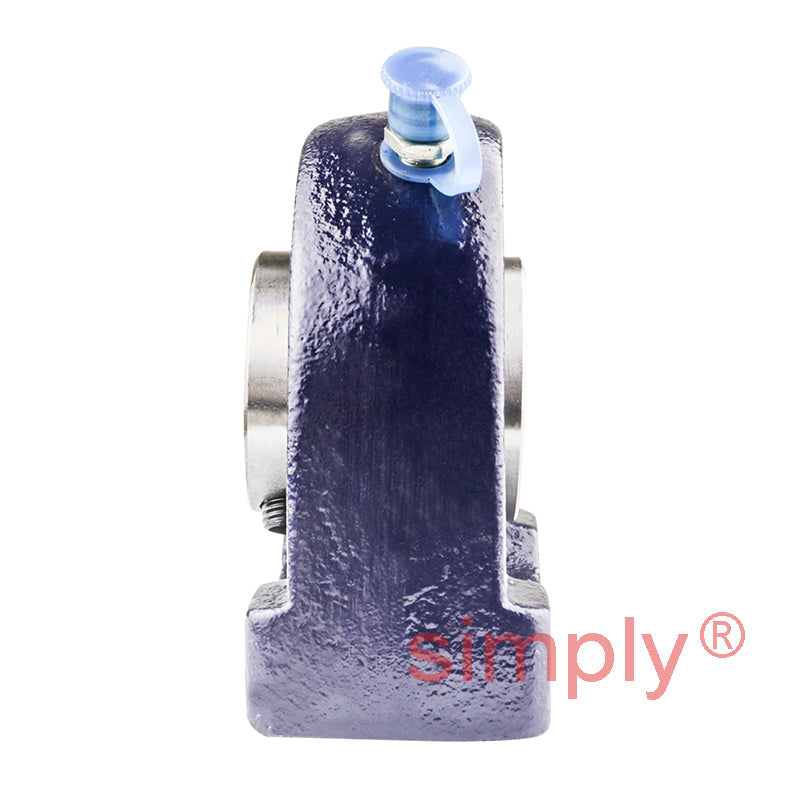

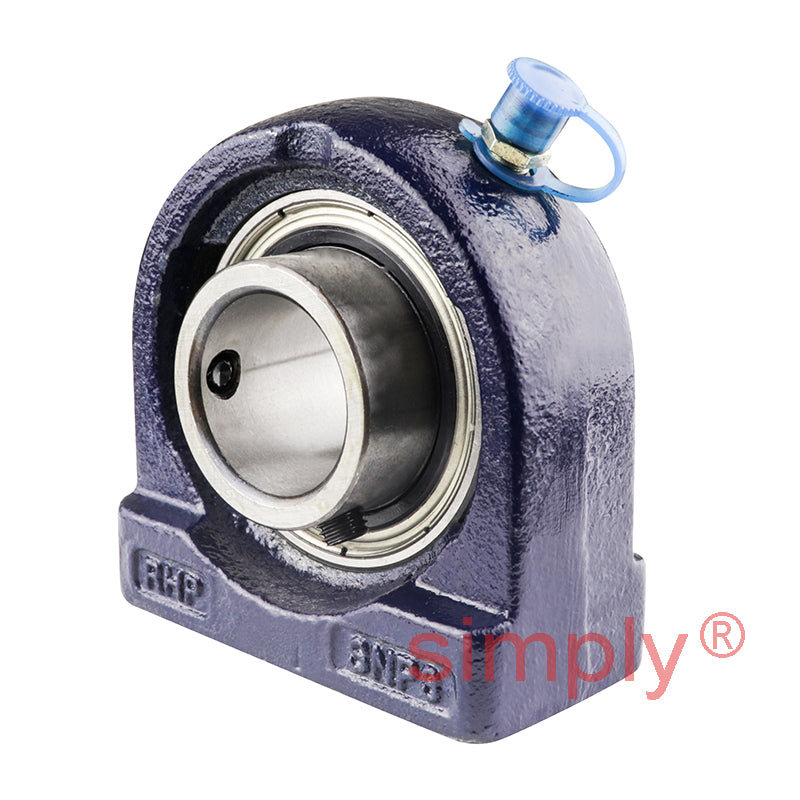

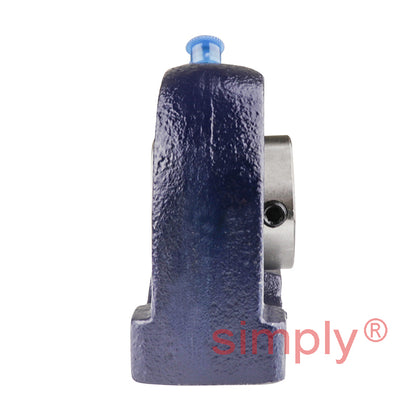

RHP SNP1 Threaded Base Small Footprint Pillow / Plummer Block and 1 inch Bore Grub Screw Full Width Insert
RHP SNP1 Threaded Base Small Footprint Pillow / Plummer Block and 1 inch Bore Grub Screw Full Width Insert
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
10+
CHF 11.98
20+
CHF 11.31
30+
CHF 11.17
40+
CHF 11.04
50+
CHF 10.90
75+
CHF 10.77
100+
CHF 10.10
200+
CHF 9.96
250+
CHF 9.83
500+
CHF 9.69
1000+
CHF 9.42
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SNP
- Bolt Hole Centres:
- 50.8mm = 2 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.15 inch |
| H | 1.437 inch |
| H1 | 0.531 inch |
| H2 | 2.815 inch |
| J | 2 inch |
| Threads | 3/8-16 UNC |
| A | 1.417 inch |
| A1 | 0.984 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-1G+insonly">1025-1G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
