SKU: SNP1EC-RHP

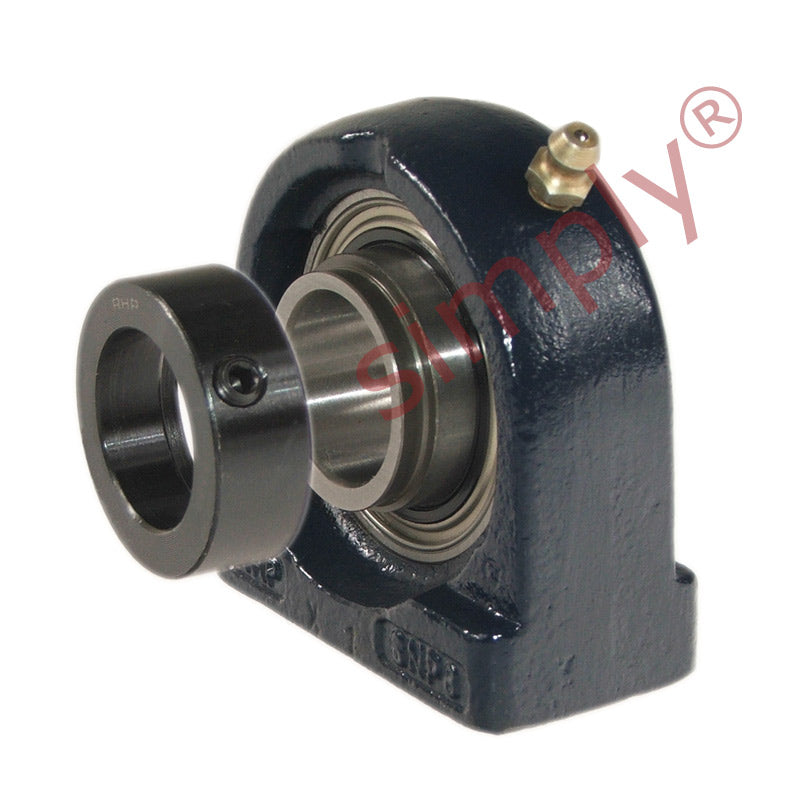

RHP SNP1EC Threaded Base Small Footprint Pillow / Plummer Block and 1 inch Bore Flat Back Collar Insert
RHP SNP1EC Threaded Base Small Footprint Pillow / Plummer Block and 1 inch Bore Flat Back Collar Insert
Regular price
CHF 54.94
ex VAT
Regular price
Sale price
CHF 54.94
ex VAT
In stock
Price Break
10+
CHF 48.90
19+
CHF 46.15
29+
CHF 45.60
39+
CHF 45.05
49+
CHF 44.50
74+
CHF 43.95
99+
CHF 41.21
199+
CHF 40.66
249+
CHF 40.11
499+
CHF 39.56
999+
CHF 38.46
Couldn't load pickup availability
Description
Description
|
RHP SNP EC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SNP
- Bolt Hole Centres:
- 50.8mm = 2 inch
Technical
Technical

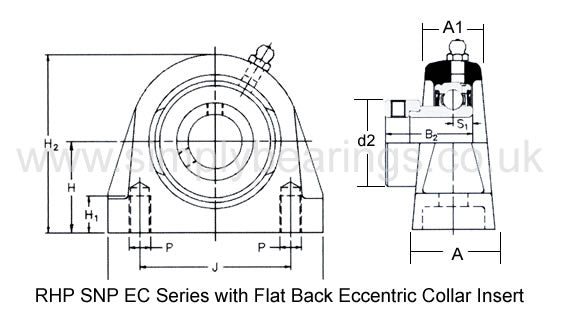

| Bore | 1 inch |
|---|---|
| L | 3.15 inch |
| H | 1.437 inch |
| H1 | 0.531 inch |
| H2 | 2.815 inch |
| J | 2 inch |
| Threads | 3/8-16 UNC |
| A | 1.417 inch |
| A1 | 0.984 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1ECG+insonly">1225-1ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
